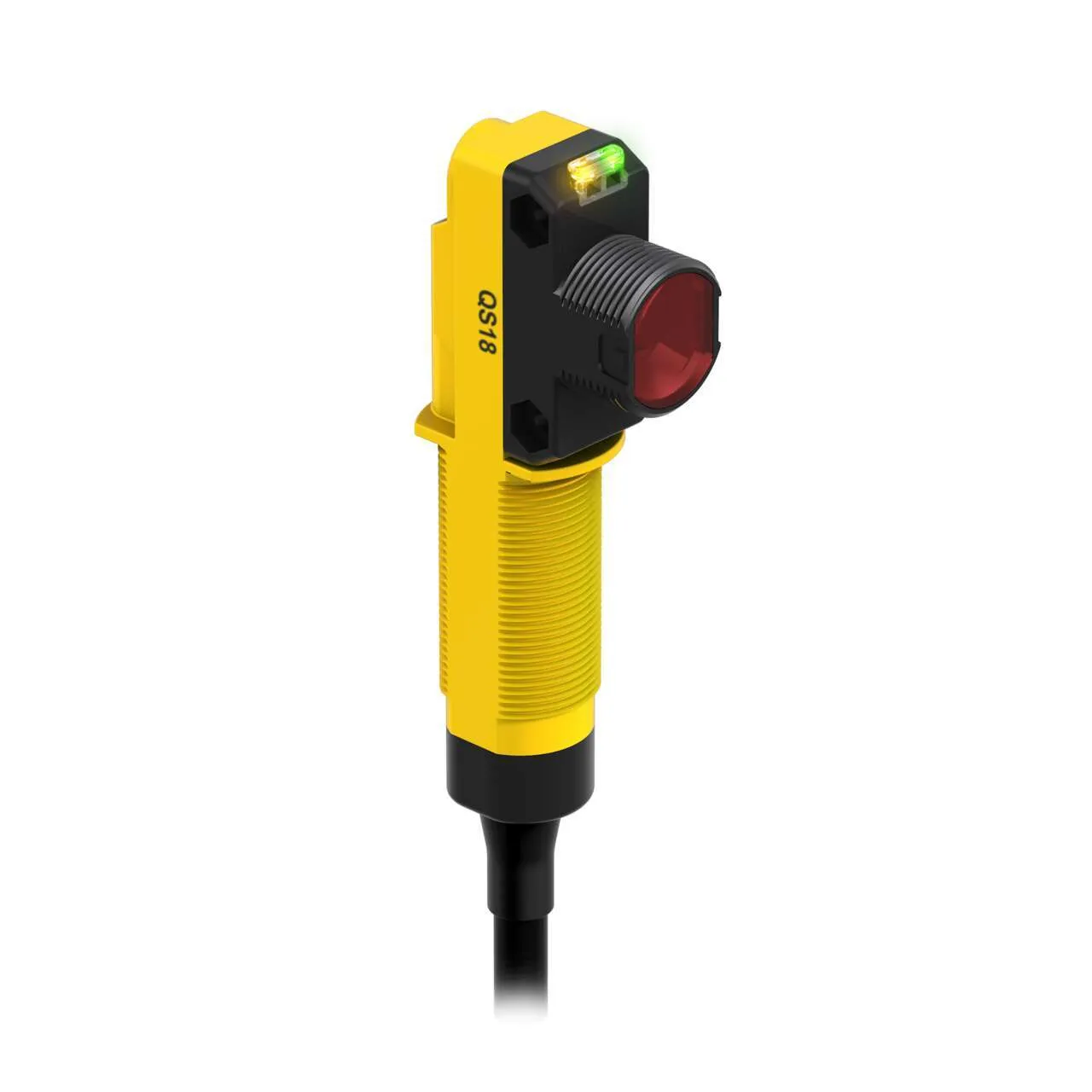

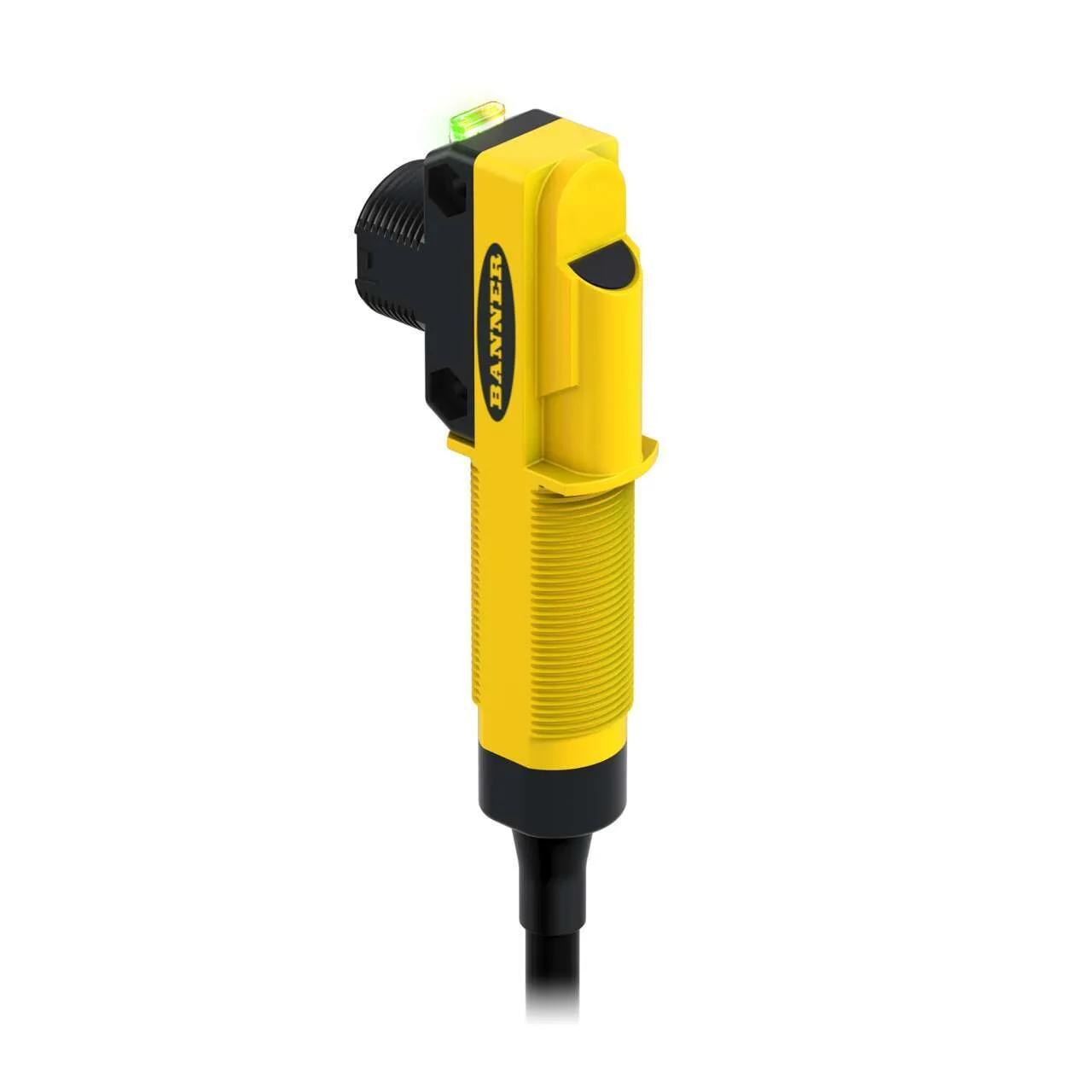

Banner Engineering QS18RPWR

WORLD-BEAM QS18 Univ Volt; Opposed; Infrared. Part number: 79602. model: QS18RPWR. part_number: 79602. list_price: 115 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/136003.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Receiver. BANSensors_SensRange: 20000. Custom_Group_1896_1896: —. BANSensors_Output: P-MOSFET (Sourcing). BANSensors_Operation: Dark Operate. BAN_Supply_Voltage: 20-140 V ac/dc. BAN_CommProtocols_IOLink: No. BAN_Housing_Style: Rectangular w/M18 Mount. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. BAN_SensingBeam: Infrared LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -25. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: N/A. BANSensors_ResponseTime: 16.6. BAN_Small_Spot: —. Power: AC/DC Universal. Sensing Beam: Infrared LED. Cable Length (m): 2. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 20-140 V ac/dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Receiver. Housing Style: Rectangular w/M18 Mount. Primary Housing Material: ABS. Input/Output: Discrete. Max Sensing Distance (mm): 20000. Outputs: P-MOSFET (Sourcing). Connection: Cable. Operation: Dark Operate. Min Op. Temperature (C): -25. Max Op. Temp. (C): 70. Output response time (ms): 16.6. Delay at Power-up (ms): 100ms dc, 300ms ac. Repeatability (µs): 1500. Number of Pins: 3. Max Op. Relative Humidity [%]: 95% @ 55°C. Lens Material: PMMA. Adjustments: N/A. Barrel Diameter (mm): 18. Indicator: LEDs. Opposed Mode Emitter/Receiver: Receiver. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No
