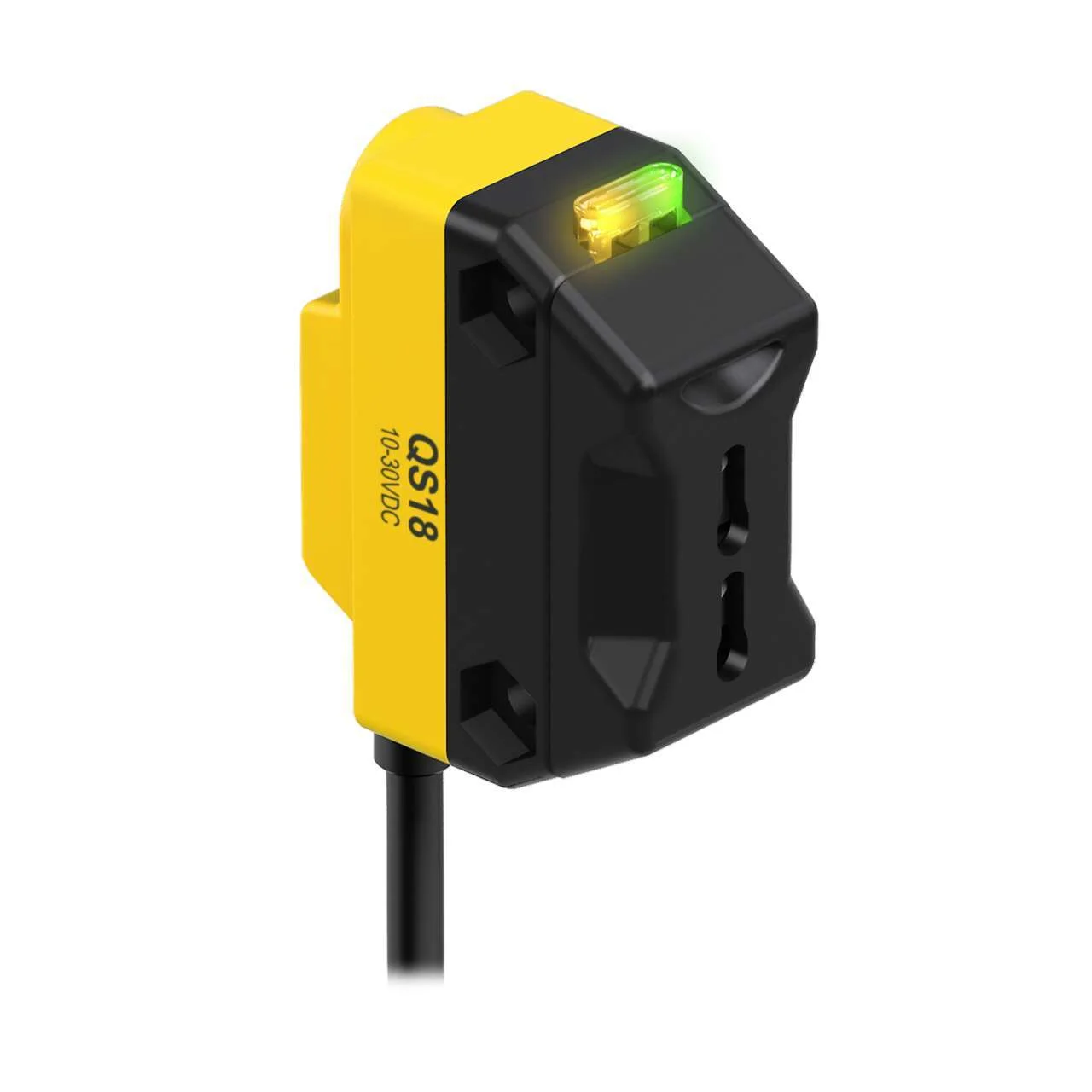

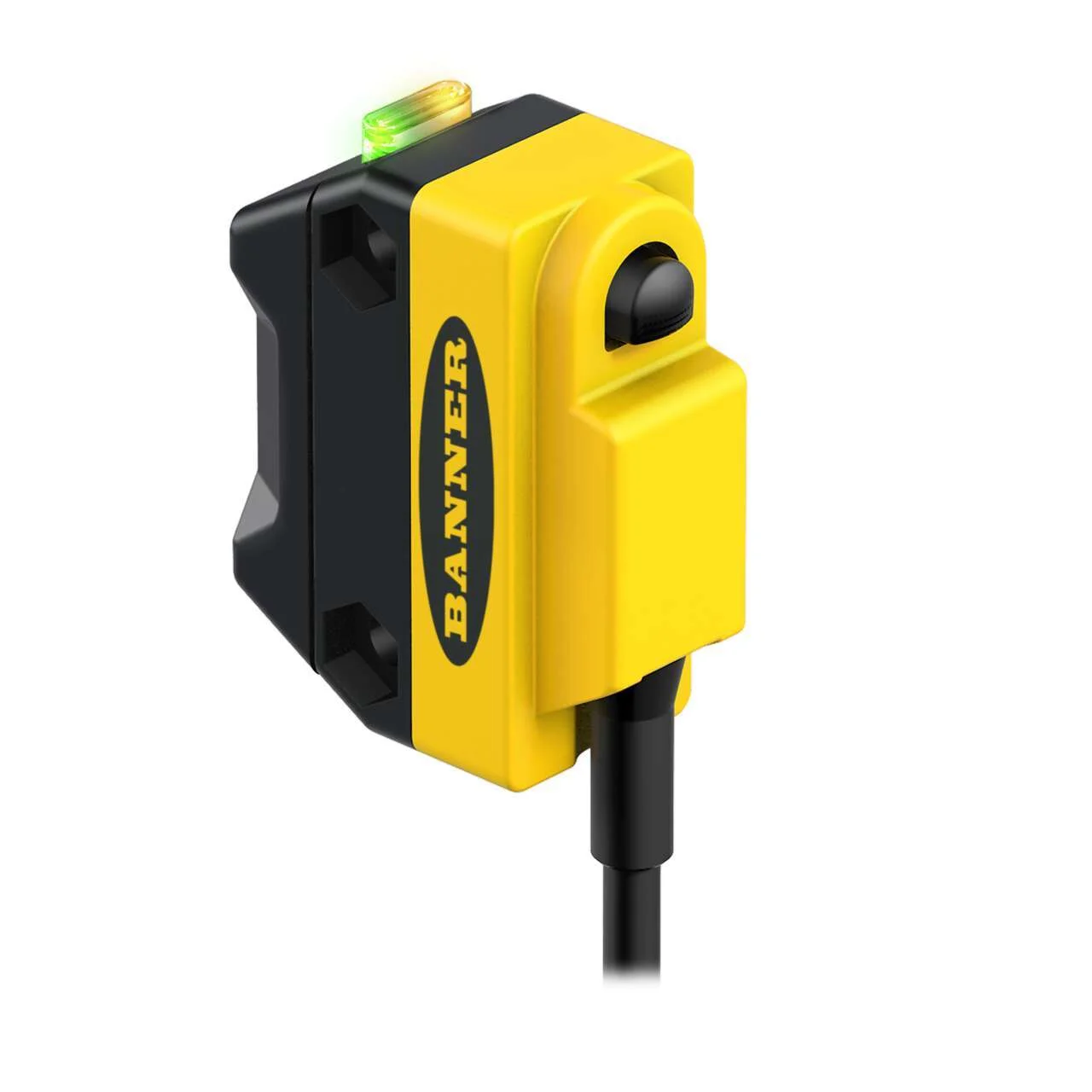

Banner Engineering QS18EP6FP
WORLD-BEAM QS18 Expert Series; Plastic Fiber
Range: Vary by Mode & Fiber Optic use; Input: 10-30 V dc
Output: PNP
2 m Cable
Range: Vary by Mode & Fiber Opti…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WORLD-BEAM QS18 Expert Series; Plastic Fiber
Range: Vary by Mode & Fiber Optic use; Input: 10-30 V dc
Output: PNP
2 m Cable
Range: Vary by Mode & Fiber Optic use; Input: 10-30 V dc
Specification
| Power | DC |
|---|---|
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Input/ Output | Discrete |
| Color Led Amplifiers | Red |
| Fiber Type | Plastic and Glass |
| Output | PNP |
| Connection | Cable |
| Output Type (Specific) | Single Discrete |
| Repeatability (&Micro;S) | 75 |
| Number Of Pins | 4 |
| Max Op. Temperature (C) | 70 |
| Min Op. Temperature (C) | -20 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Special Feature: Remote Teach | Yes |
| Intrinsically Safe | No |
| Adjustments | Teach Button |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay At Power Up (Ms) | 100 |
| Indicator Display Type | Indicator LEDs |
| Minimum Response Time (Ms) | .6 |
| Special Feature: Bussable Power | No |
| Feature: Washdown Rated | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Io Link | No |
| Housing Material | Thermoplastic |
