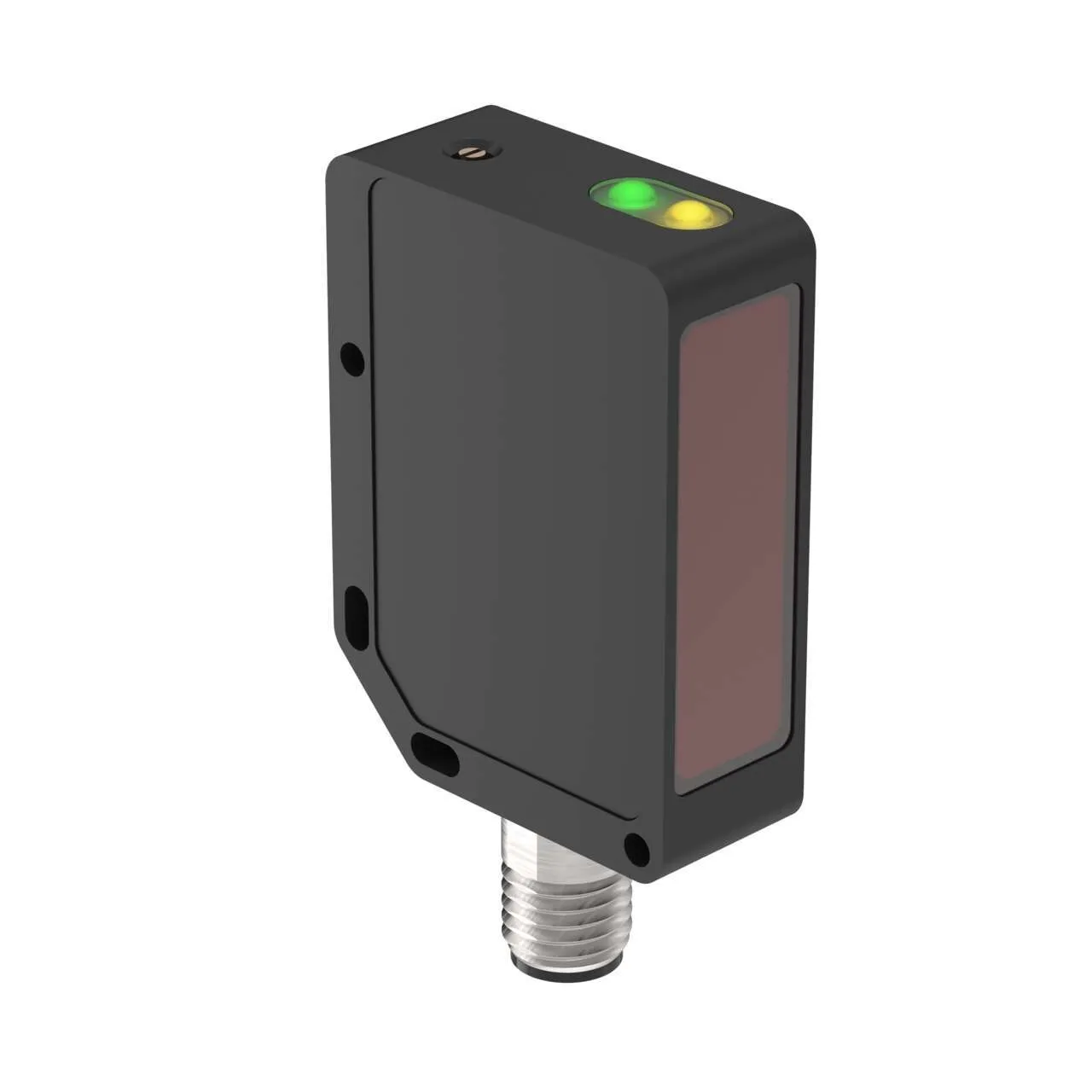

Banner Engineering QMT42VP6DXQ

QMT42 Series: Long Range Diffuse. Part number: 56897. model: QMT42VP6DXQ. part_number: 56897. list_price: 309 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Diffuse. BANSensors_SensRange: 6000. BAN_Connection: Integral QD. BAN_QDType: M12. BAN_CableLength: —. BAN_SensingBeam: Infrared LED. BANSensors_Output: PNP. BANSensors_MaxOpTemp: 55. BANSensors_Adjustment: Potentiometer. BANSensors_ResponseTime: 1. Power: DC. Sensing Beam: Infrared LED. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Diffuse. Housing Style: Rectangular. Primary Housing Material: Zinc Alloy Die-Cast. Input/Output: Discrete. Max Sensing Distance (mm): 6000. Outputs: PNP. Connection: Integral QD. Quick Disconnect Type: M12. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 55. Output response time (ms): 1. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 880. Delay at Power-up (ms): 100. Repeatability (µs): 250. Number of Pins: 4. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Acrylic. Adjustments: Potentiometer. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 10/27/2022
