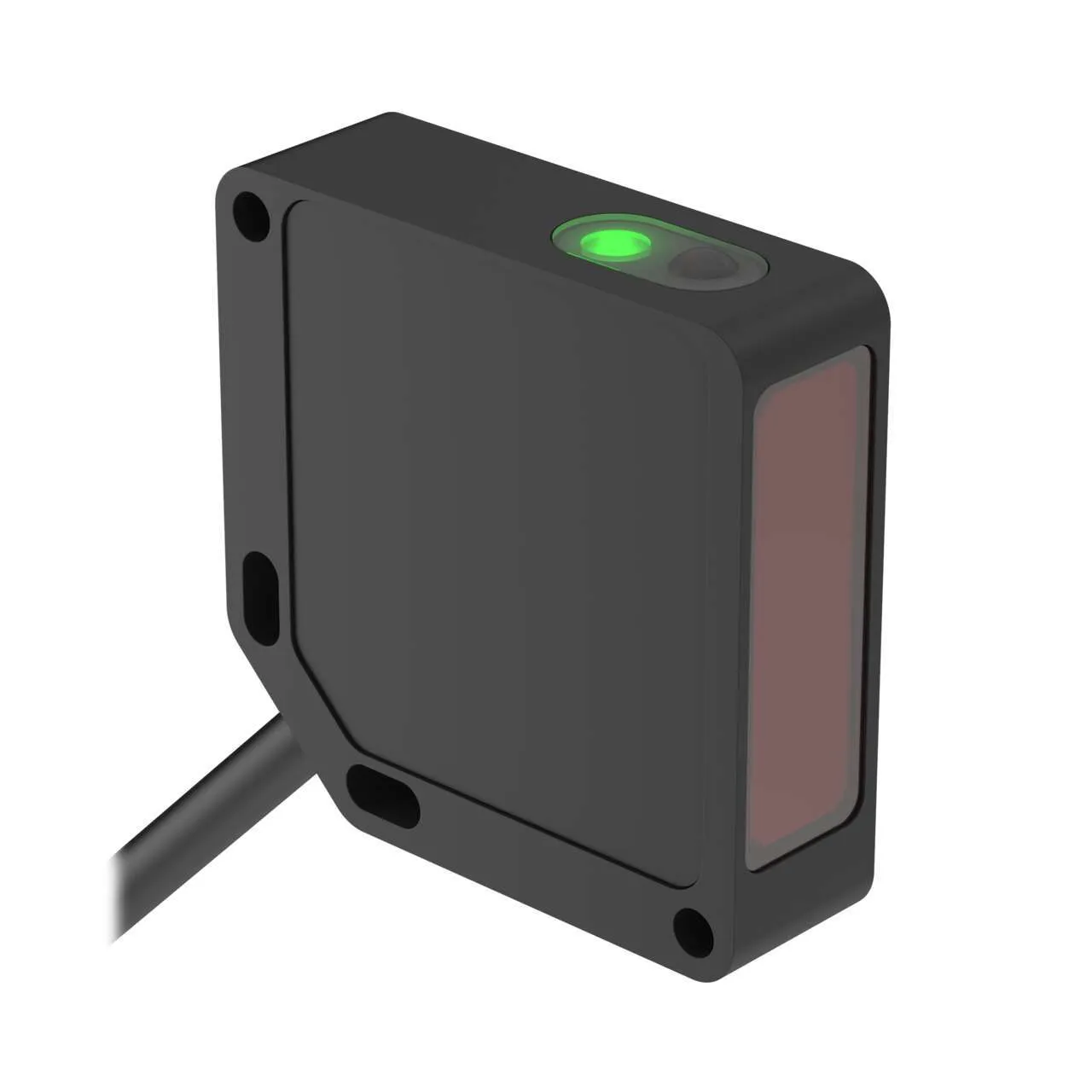

Banner Engineering QM426E

QM42 Series: Emitter. Part number: 44331. model: QM426E. part_number: 44331. list_price: 213 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Emitter. BANSensors_SensRange: 10000. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. BAN_SensingBeam: Infrared LED. BANSensors_Output: —. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: N/A. BANSensors_ResponseTime: N/A. Power: DC. Sensing Beam: Infrared LED. Cable Length (m): 2. IP Rating: IP67. NEMA / UL Type Rating: NEMA 6. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Emitter. Housing Style: Rectangular. Primary Housing Material: Zinc Alloy Die-Cast. Max Sensing Distance (mm): 10000. Connection: Cable. Operation: N/A. Min Op. Temperature (C): -20. Max Op. Temp. (C): 70. Output response time (ms): N/A. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 880. Delay at Power-up (ms): 100. Repeatability (µs): 120. Number of Pins: 2. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Indicator: LEDs. Opposed Mode Emitter/Receiver: Emitter. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No
