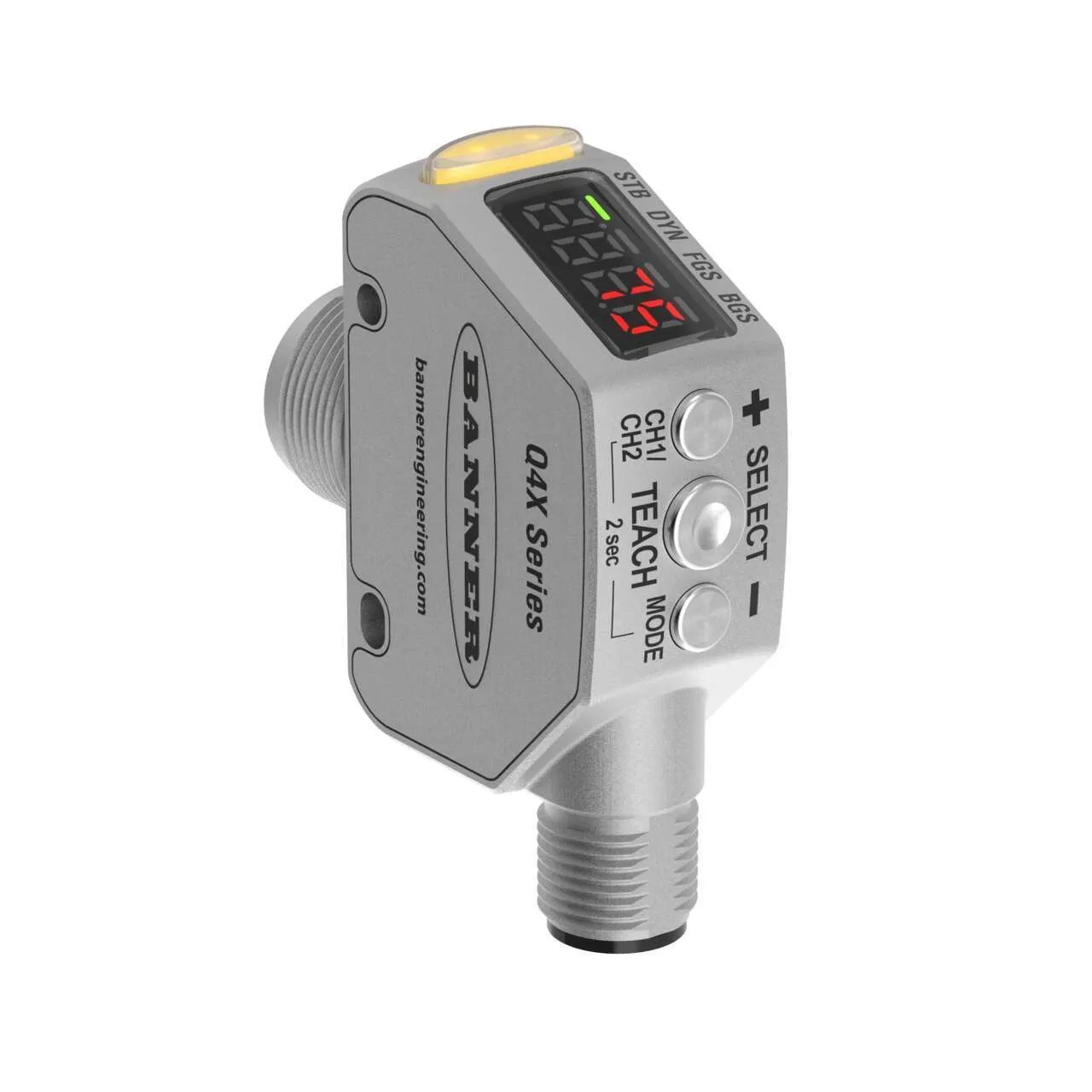

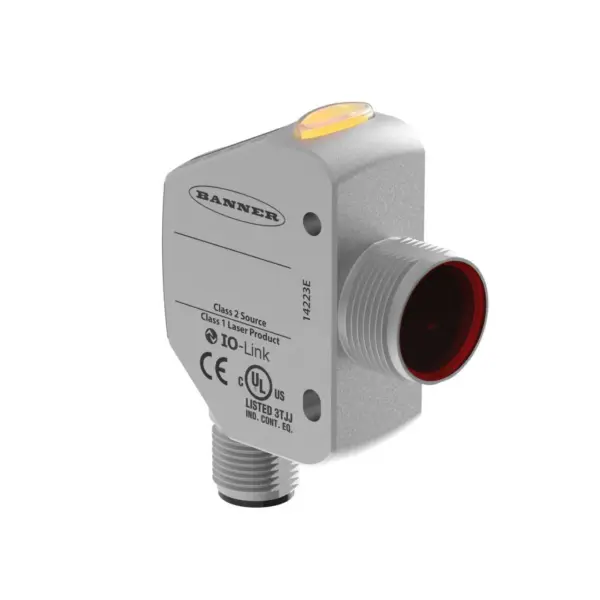

Banner Engineering Q4XTKLAF500-Q8

Q4X Series: Laser Adjustable Field. Part number: 815869. model: Q4XTKLAF500-Q8. part_number: 815869. list_price: 539 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/190074.pdf. BAN_Housing_Style: Rectangular w/ Threaded Mount. BAN_MI_MaxSensDist_LU: 500. BAN_IO_General: Discrete. BAN_MI_OutputConfig_LU: —. BAN_CommProtocols_IOLink: Yes. BAN_PFM_Output: Yes. BAN_Supply_Voltage: 10-30 V dc. BAN_MI_DiscSwitchOutput_LU: 1 NPN/PNP Configurable; 1 PNP. Power: DC. PFM Output: Yes. Sensing Beam: Visible Red Laser. Jam Detection: No. PC Configurable: No. IP Rating: IP67, IP68, IP69K. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Background/Foreground Suppression. Housing Style: Rectangular w/ Threaded Mount. Device Type: Sensor. Primary Housing Material: Stainless Steel. Laser Classification: Class 1. Input/Output: Discrete. Connection: Integral QD. Quick Disconnect Type: M12. Max Sensing Distance (mm): 500. Minimum Sensing Distance (mm): 25. Number of Pins: 4. Discrete (Switched) Outputs: 1 NPN/PNP Configurable; 1 PNP. Barrel Thread: M18. Laser Control: Yes. Max Ambient Light (Lux): 5000. Feature: Remote Teach: Yes. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: Yes. Feature: Timing (Hold/Delay): Yes. Feature: Ecolab Certified: Yes. Feature: Chemical Resistant: Yes. Feature: Pump-in/ Pump-out: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. IO Link: Yes. RS-232: No
