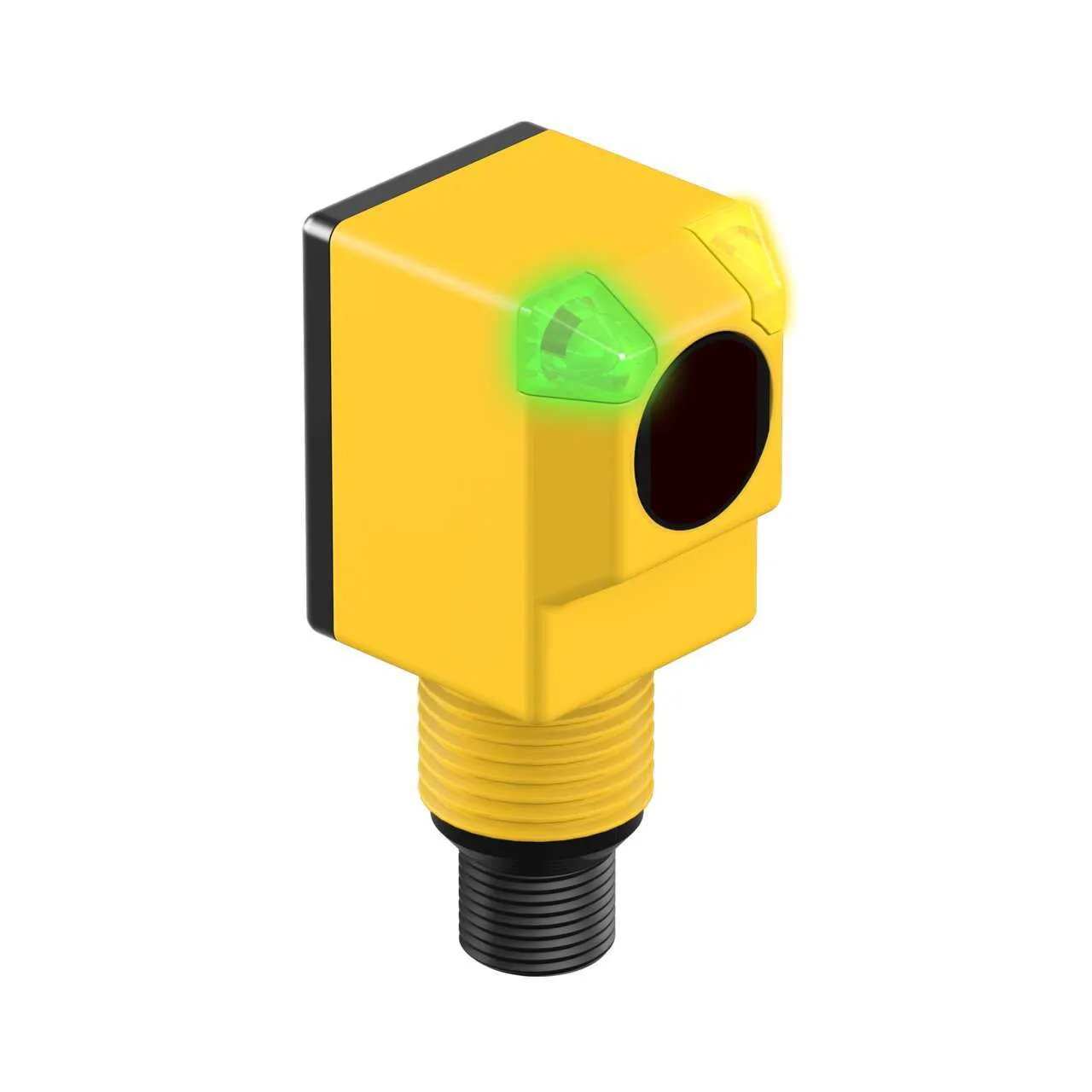

Banner Engineering Q25AW3RQ1

EZ-BEAM Q25 Series: Receiver. Part number: 31972. model: Q25AW3RQ1. part_number: 31972. list_price: 132 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/121517.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Receiver. BANSensors_SensRange: 20000. BAN_IO_General: Solid-State AC Switch. BANSensors_Output: Solid-State AC Switch. BANSensors_Operation: Light Operate. BAN_Supply_Voltage: 20-250 V ac. BAN_Connection: Integral QD. BAN_QDType: 1/2 in. (Micro). BAN_CableLength: —. BAN_SensingBeam: Infrared LED. BANSensors_ResponseTime: 16 ON/8 OFF. Custom_Group_1997_1997: Feature: Washdown Rated. Power: AC. Sensing Beam: Infrared LED. IP Rating: IP69K. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 20-250 V ac. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Receiver. Housing Style: Rectangular. Primary Housing Material: Thermoplastic. Input/Output: Solid-State AC Switch. Max Sensing Distance (mm): 20000. Outputs: Solid-State AC Switch. Connection: Integral QD. Quick Disconnect Type: 1/2 in. (Micro). Operation: Light Operate. Min Op. Temperature (C): -40. Max Op. Temp. (C): 70. Output response time (ms): 16 ON/8 OFF. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Delay at Power-up (ms): 100. Repeatability (µs): 2000. Number of Pins: 4. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Polycarbonate. Adjustments: N/A. Barrel Diameter (mm): 18. Indicator: LEDs. Opposed Mode Emitter/Receiver: Receiver. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Ecolab Certified: Yes. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: Yes. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 01/11/2023
