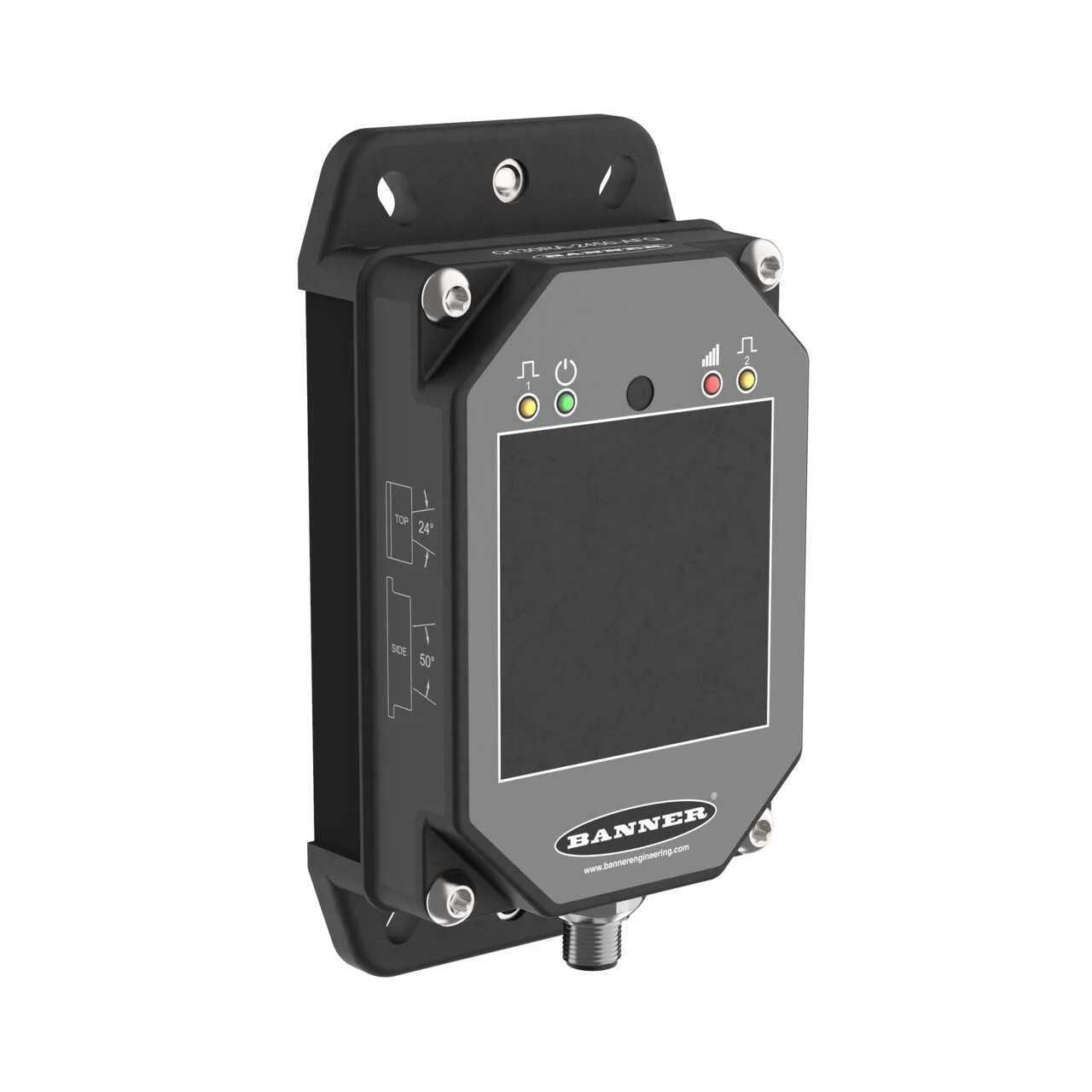

Banner Engineering Q130RA-9076-AFQ
R-GAGE Series Radar Sensor
Bipolar Outputs
Range 1 to 24 m Single Zone
Response Speed 50 ms
5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
R-GAGE Series Radar Sensor
Bipolar Outputs
Range 1 to 24 m Single Zone
Response Speed 50 ms
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Sensing Beam | Radar |
| Jam Detection | No |
| Operating Frequency | 24 GHz |
| Pc Configurable | Yes |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | ABS/Polycarbonate |
| Input/ Output | Discrete |
| Radar Beam Pattern (H X V °) | 90 x 76 |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (Mm) | 24000 |
| Minimum Sensing Distance (Mm) | 1000 |
| Adjustments | Software |
| Number Of Pins | 5 |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Max Operating Temperature (C) | 65 |
| Min Operating Temperature (C) | -40 |
| Minimum Response Time (Ms) | 50 |
| Laser Control | No |
| Feature: Remote Teach | No |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Chemical Resistant | No |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Application: Ultrasonic | No |
| Common Ethernet Protocol | No |
| R S 232 | No |
| Wireless | No |
| Cert: Us | Yes |
| Cert: Australia/New Zealand | Yes |
| Cert: China | Yes |
| Cert: European | Yes |
| Cert: Canada | Yes |
| Cert: Singapore | Yes |
| Cert: Thailand | Yes |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
