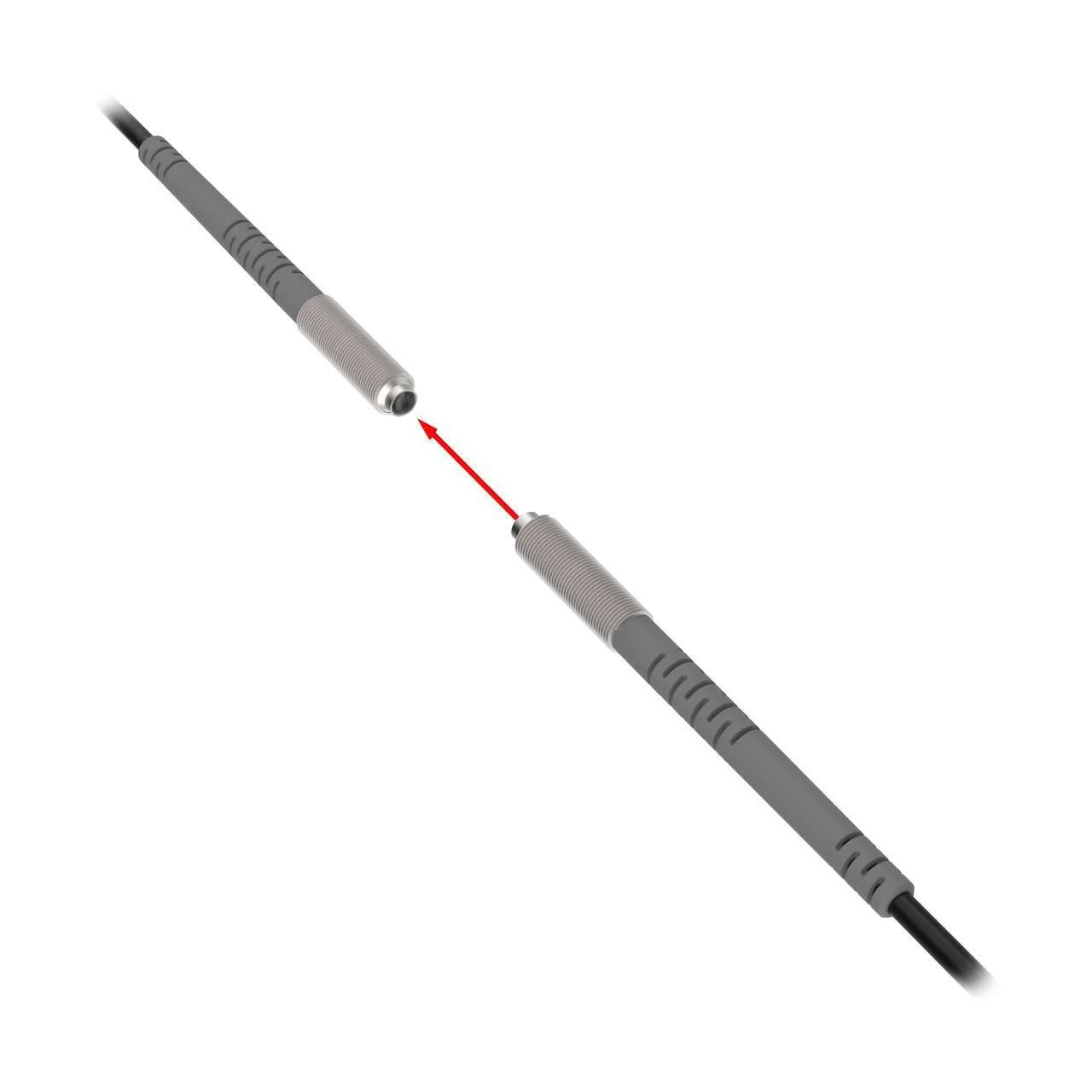

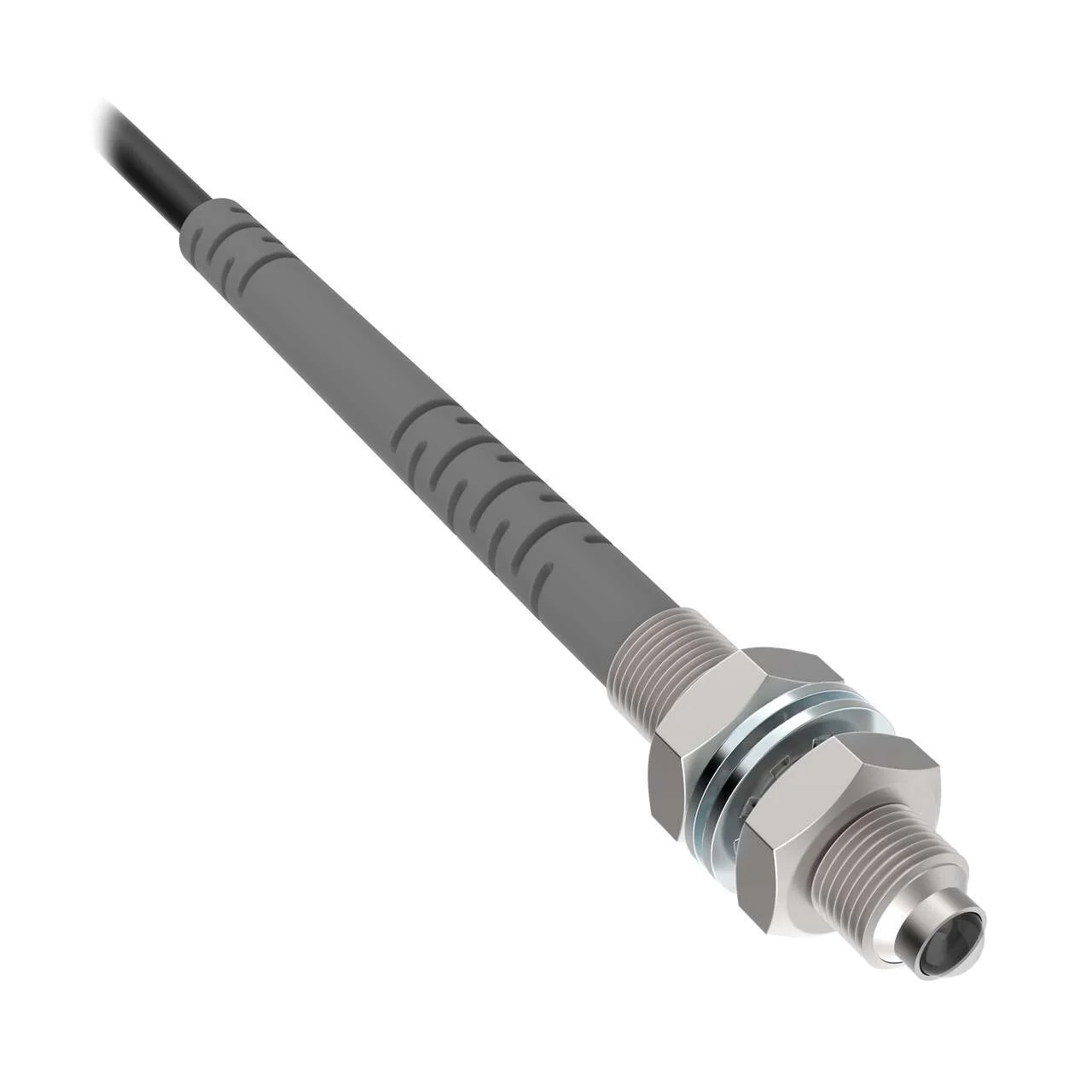

Banner Engineering PITL26UM4-VL
Plastic Fiber; Opposed Mode Pair
Core Dia.: 0.5 mm; Fiber Length 2 m
Stainless Thread M4 With integrated Lens; 30 mm spot size at 100 mm range
Flex Relief, Free…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plastic Fiber; Opposed Mode Pair
Core Dia.: 0.5 mm; Fiber Length 2 m
Stainless Thread M4 With integrated Lens; 30 mm spot size at 100 mm range
Flex Relief, Free cut, Vantage Line
Specification
| Item Status | RELEASED |
|---|---|
| Housing Style | Round |
| Quantity Included | 2 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Stainless Steel |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Lens |
| Fiber Length (M) | 2 |
| Fiber Sensing End Size | M4 |
| Sensing End Segment 1 | Thread |
| Sensing End Segment 2 | Lens |
| Retractile | No |
| Flex Relief | Yes |
| Core Diameter (Mm) | 0.5 |
| Minimum Bend Radius (Mm) | 15 |
| Termination | Free Cut |
| Max Temp (C) | 70 |
| Minimum Repeat Bending Endurance | 1000 |
| Integrated Lens | Yes |
| Feature: Chemical Resistant | No |
| Feature: Extended Range | Yes |
| Feature: Small Object Detection | No |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Plastic Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 4 |
| Max Distance: Df G1 (Mm) | No Data |
| Max Distance: Df G2 (Mm) | No Data |
| Max Distance: Df G3 (Mm) | No Data |
| Measured Max Distance (Mm) | No Data |
| Fiber Sensing End Size Mounting Area | M4 |
