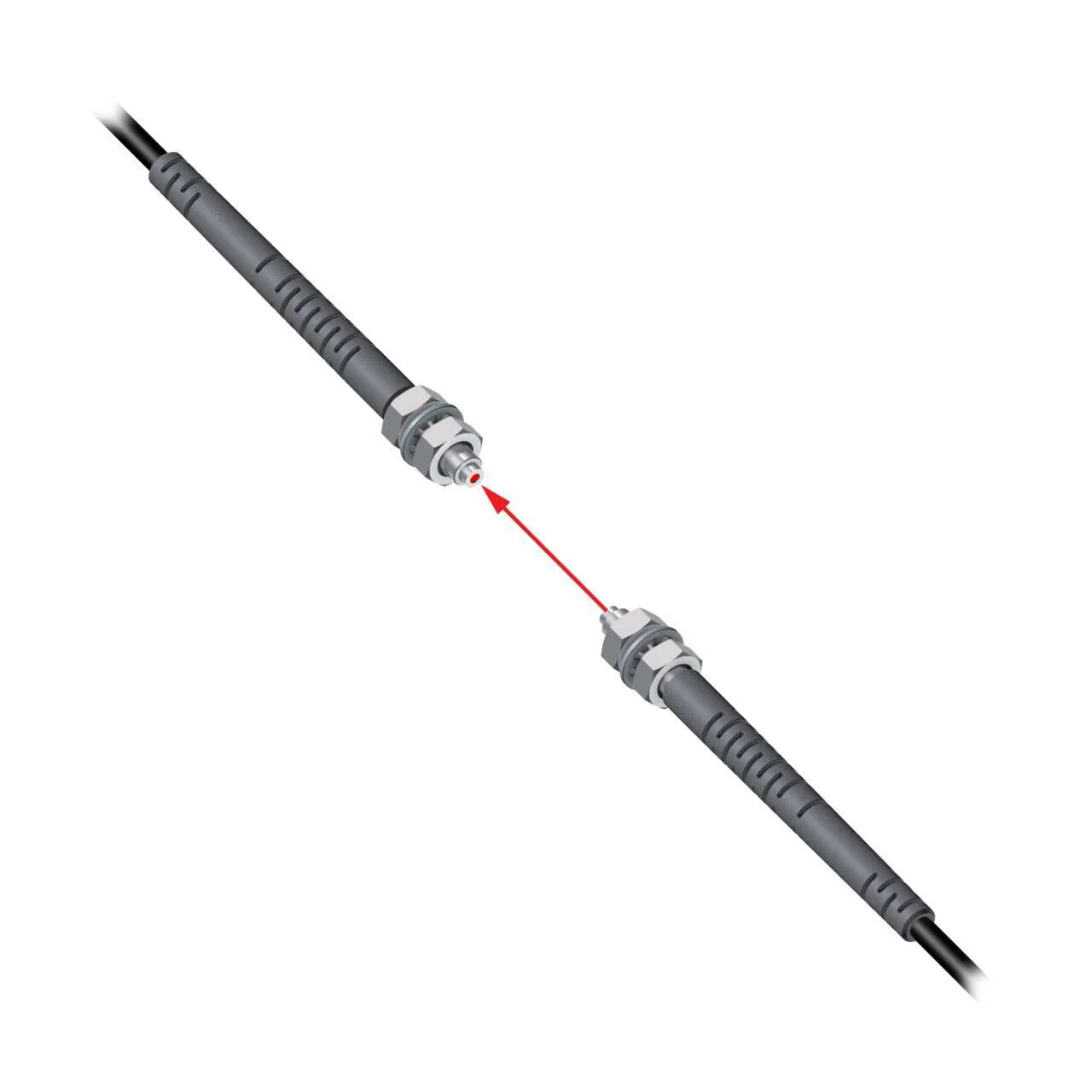

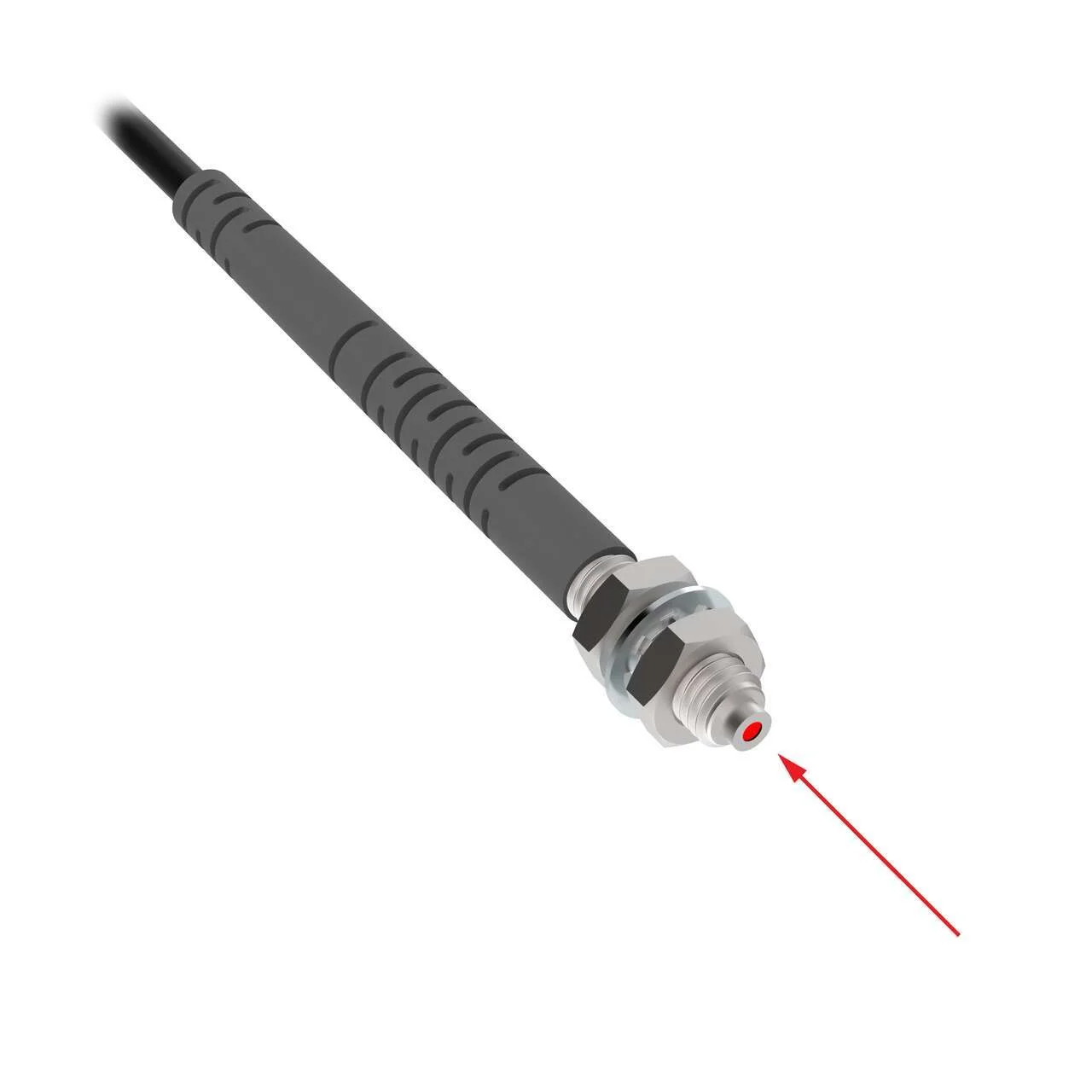

Banner Engineering PIT46UM3-VL
Plastic Fiber, Opposed Mode
Core Dia.: 1 mm; Fiber Length 2 m
Thread M3
Flex Relief
Free cut
Vantage Line
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plastic Fiber, Opposed Mode
Core Dia.: 1 mm; Fiber Length 2 m
Thread M3
Flex Relief
Free cut
Vantage Line
Specification
| Max Range: Df G3 (Mm) | >3m – <=5m |
|---|---|
| Item Status | RELEASED |
| Housing Style | Round |
| Quantity Included | 2 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Nickel-Plated Brass |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Thread |
| Fiber Length (M) | 2 |
| Fiber Sensing End Size | M3 |
| Sensing End Segment 1 | Thread |
| Retractile | No |
| Flex Relief | Yes |
| Core Diameter (Mm) | 1 |
| Minimum Bend Radius (Mm) | 25 |
| Termination | Free Cut |
| Max Temp (C) | 70 |
| Minimum Repeat Bending Endurance | 1000 |
| Integrated Lens | No |
| Feature: Chemical Resistant | No |
| Feature: Small Object Detection | No |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Plastic Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 4 |
| Max Distance: Df G1 (Mm) | 605 |
| Max Distance: Df G2 (Mm) | 981 |
| Max Distance: Df G3 (Mm) | 4704 |
| Measured Max Distance (Mm) | 605 |
| Fiber Sensing End Size Mounting Area | M3 |
