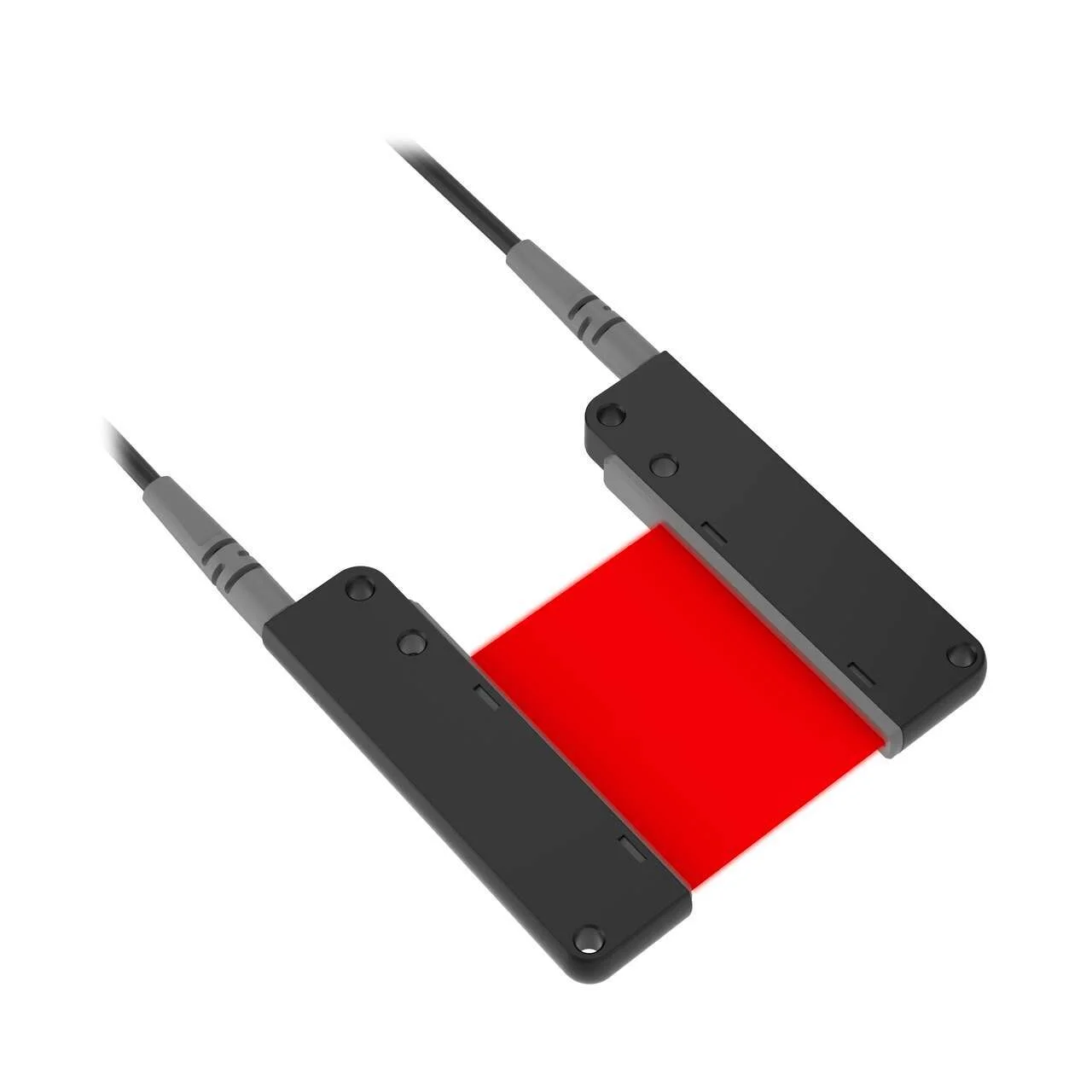

Banner Engineering PIRSL1X326T5-40
Plastic Fiber; Opposed Mode
Core Diameter: 32 x 0.25 mm; Fiber Length 2 m
Rectangle; Array Length 40 mm; Lensed Emitter Array, Sideview
T5 Termination
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plastic Fiber; Opposed Mode
Core Diameter: 32 x 0.25 mm; Fiber Length 2 m
Rectangle; Array Length 40 mm; Lensed Emitter Array, Sideview
T5 Termination
Specification
| Max Range: Df G3 (Mm) | >3m – <=5m |
|---|---|
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Quantity Included | 2 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Array |
| Beam Exit | Right Angle |
| Sensing End Material (Specific) | Zinc Alloy |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Array |
| Fiber Length (M) | 2 |
| Fiber Sensing End Size | 17.0 x 60.0 mm |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Sideview |
| Sensing End Segment 3 | Array |
| Array Length (Mm) | 40 |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (Mm) | 32 x 0.3 |
| Minimum Bend Radius (Mm) | 60 |
| Termination | Terminated |
| Max Temp (C) | 70 |
| Minimum Repeat Bending Endurance | 1000 |
| Integrated Lens | Yes |
| Feature: Chemical Resistant | No |
| Feature: Extended Range | Yes |
| Feature: Small Object Detection | Yes |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Plastic Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 128 |
| Max Distance: Df G1 (Mm) | 534 |
| Max Distance: Df G2 (Mm) | 865 |
| Max Distance: Df G3 (Mm) | 4147 |
| Measured Max Distance (Mm) | 534 |
| Fiber Sensing End Size Mounting Area | 17.0 x 60.0 mm |
