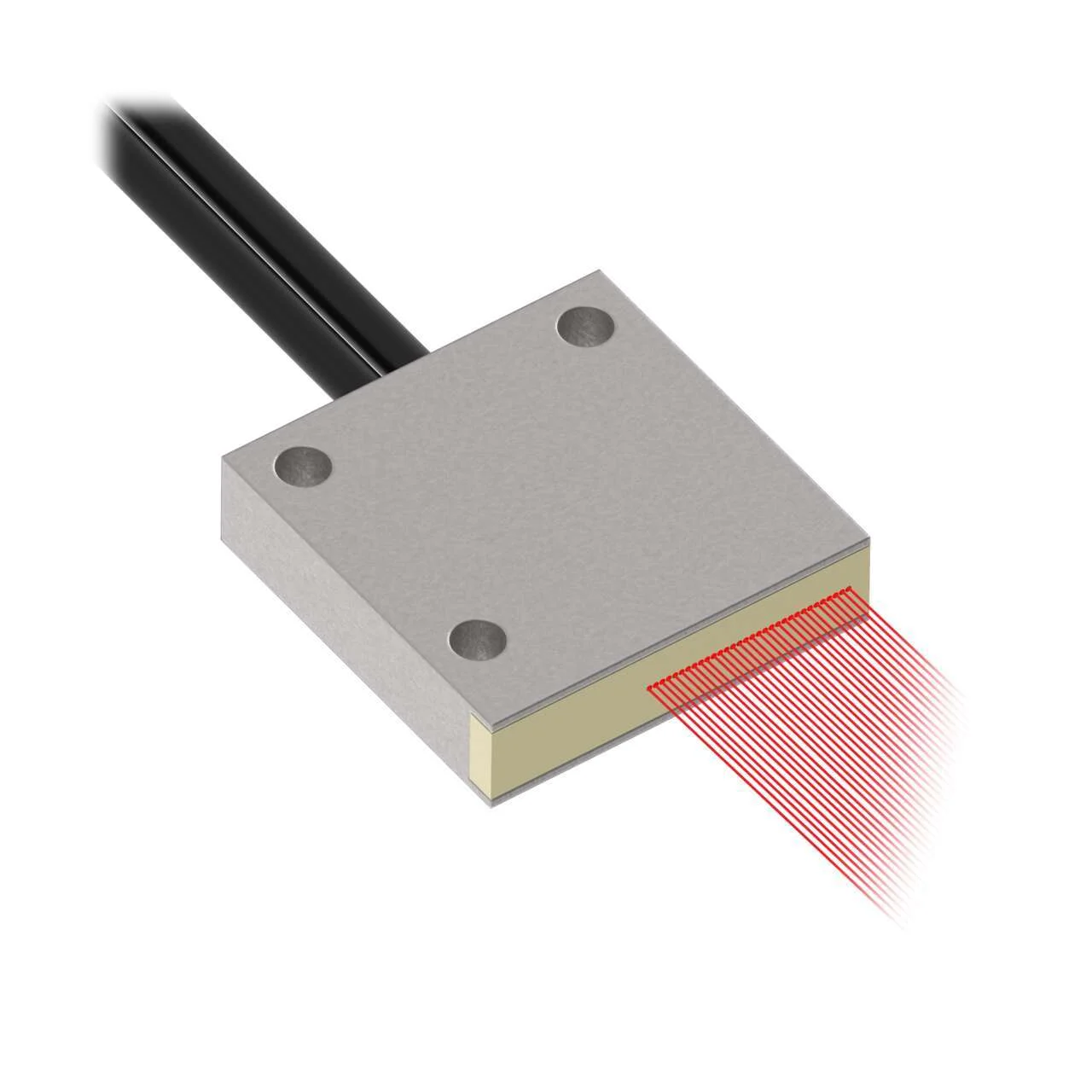

Banner Engineering PBR1X326U
Plastic Fiber, Diffuse Reflective
Core Dia.: 32 x 0.25 mm; Fiber Length 2 m
Rectangle
Free Cut
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plastic Fiber, Diffuse Reflective
Core Dia.: 32 x 0.25 mm; Fiber Length 2 m
Rectangle
Free Cut
Specification
| Max Range: Df G3 (Mm) | >1m – <=3m |
|---|---|
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Quantity Included | 1 |
| Fiber Optic Type | Plastic |
| Sensing Mode (General) | Diffuse |
| Sensing Mode (Detailed) | Array |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Aluminum |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Fiber Sensing End Tip | Array |
| Fiber Length (M) | 2 |
| Fiber Sensing End Size | 20.1 x 20.1 mm |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Array |
| Array Length (Mm) | 10.9 |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (Mm) | 32 x 0.3 |
| Minimum Bend Radius (Mm) | 5 |
| Termination | Free Cut |
| Max Temp (C) | 70 |
| Minimum Repeat Bending Endurance | 10000 |
| Integrated Lens | No |
| Feature: Chemical Resistant | No |
| Feature: Small Object Detection | No |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Plastic Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 64 |
| Max Distance: Df G1 (Mm) | 150 |
| Max Distance: Df G2 (Mm) | 243 |
| Max Distance: Df G3 (Mm) | 1166 |
| Measured Max Distance (Mm) | 150 |
| Fiber Sensing End Size Mounting Area | 20.1 x 20.1 mm |
