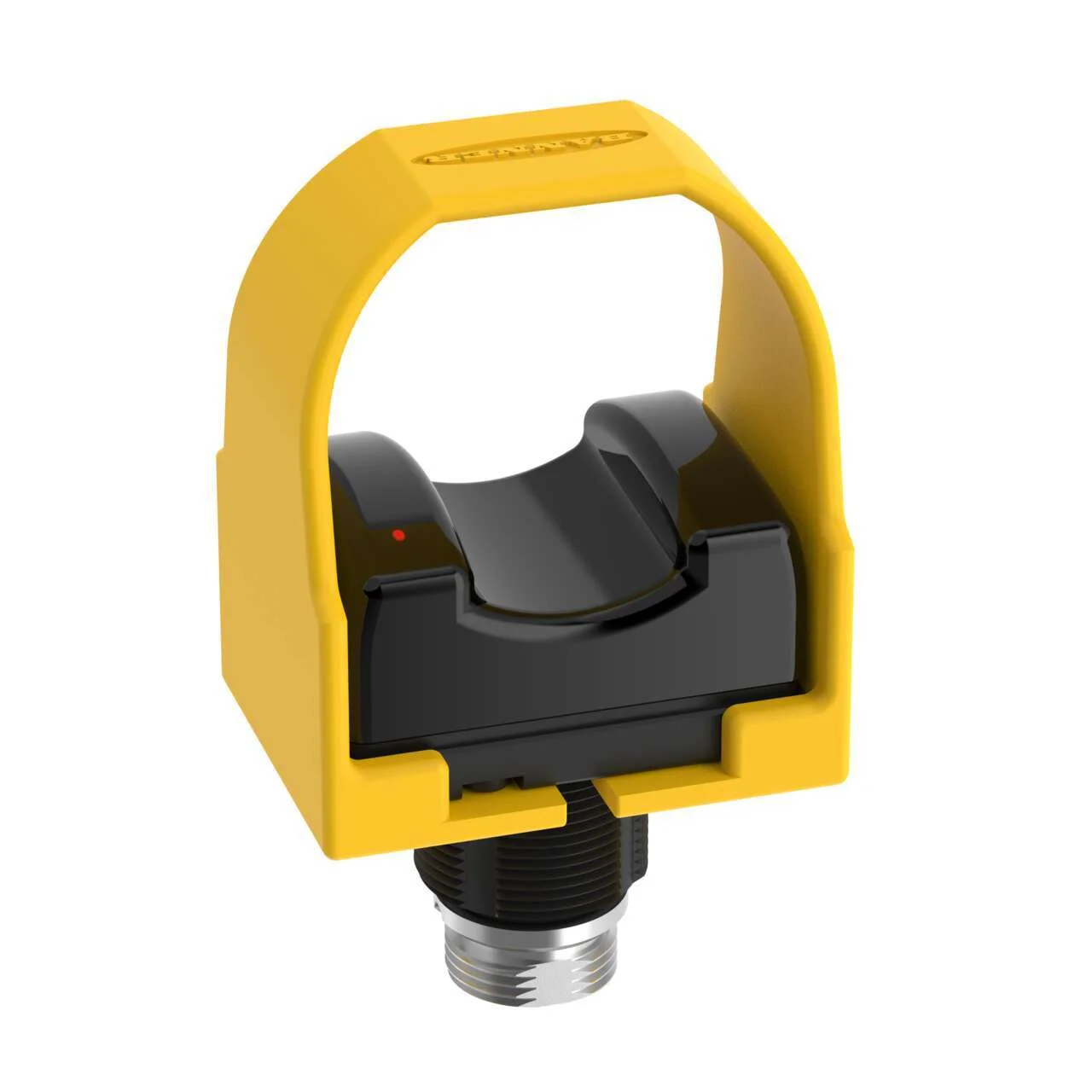

Banner Engineering OTBVR81QDHP W/Y
Optical Touch Button AC/DC
Input 20-30 V
SPDT Relay; Yellow Shield
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optical Touch Button AC/DC
Input 20-30 V
SPDT Relay; Yellow Shield
Specification
| Power | DC or AC |
|---|---|
| Pfm Input | No |
| Non Illuminated | Yes |
| Cable Length (M) | 2 |
| Ip Rating | IP66 |
| Display | No |
| Nema / Ul Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| Supply Voltage | 20-30 V ac/dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Single Point Optical |
| Housing Style | Base Mount – Saddle |
| Primary Housing Material | Thermoplastic Polysulfone |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Product Size (Mm) | Other |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open/Normally Closed |
| Output Type | SPDT e/m Relay |
| Input Type | AC |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 100 |
| Max Output Response Time (Ms) | 100 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 59.9 x 43.2 x 48.0 |
| Number Of Beams | 1 |
| Environmental Rating | IP66 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -20 |
| Field Cover Color | Yellow |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Secondary Material | Thermoplastic |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/18/2024 |
