Banner Engineering MQDC-WDSS-0815

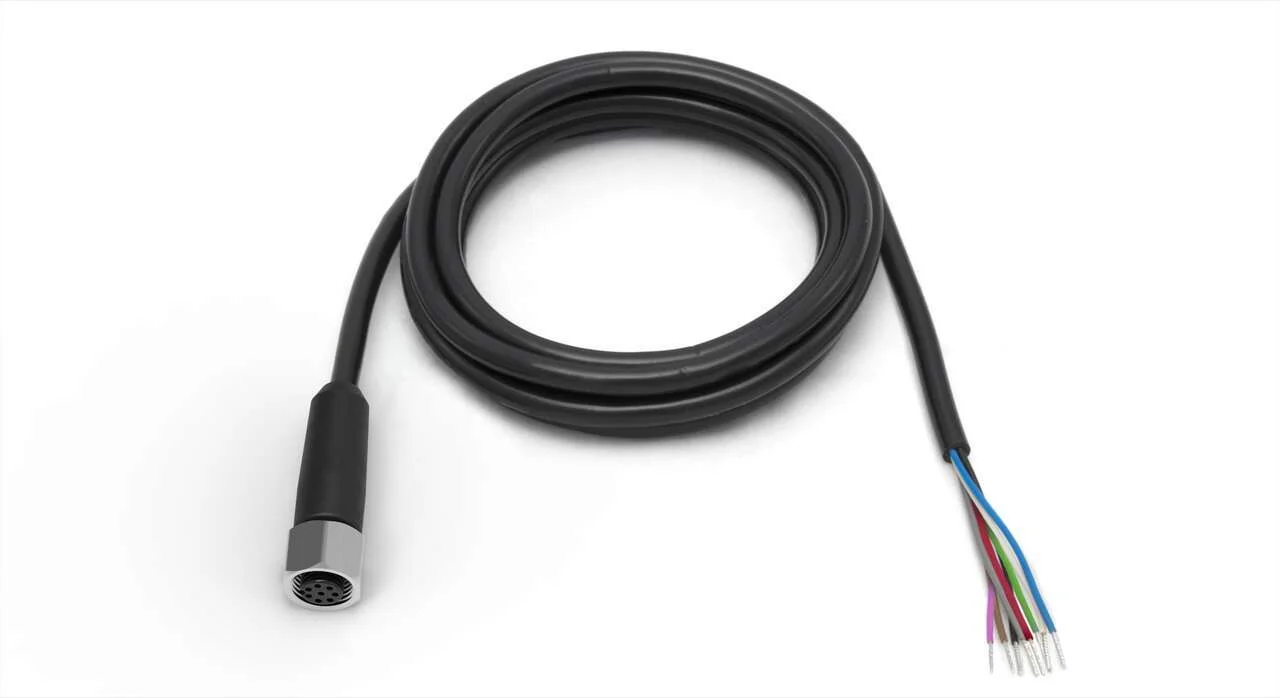

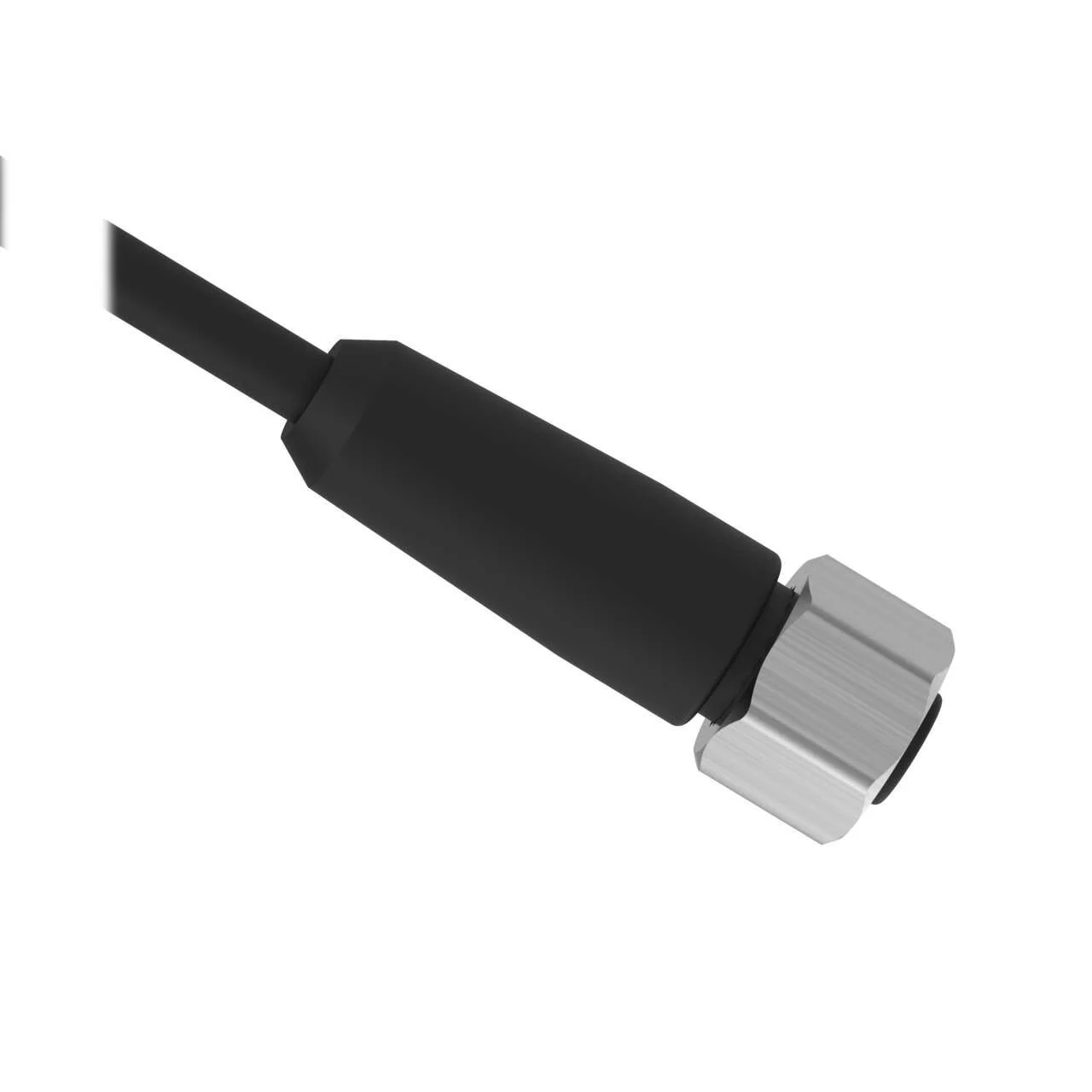

Cordset: Single-Ended A-Code M12
8-pin Straight Female Connector
5 m (16.40 ft) Black PVC Jacket
316 Stainless Steel Coupling Nut
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cordset: Single-Ended A-Code M12
8-pin Straight Female Connector
5 m (16.40 ft) Black PVC Jacket
316 Stainless Steel Coupling Nut
Specification
| Ip Rating | IP69 |
|---|---|
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Number Of Ends | Single Ended |
| Connector 1 Number Of Contacts | 8 |
| Coupling Nut Material | 316 Stainless Steel |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Connector 1 Key Code | A |
| Connector 1 Gender | Female |
| Outside Cable Diameter (Mm) | 5.92 |
| Cordset Length (M) | 5.0 |
| Connector 1 Orientation | Straight |
| Overmold Material And Color | PVC Black |
| Shield/No Shield | No Shield |
| Trunk Length (M) | No Trunk |
| Minimum Temp. (Celsius) | -40 |
| Maximum Temp. (Celsius) | 70 |
| Current Rating (A) | 2.0 |
| Supply Voltage | 30 V dc |
| Cordset Special Features | Washdown Rated |
| Item Status | RELEASED |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: Chemical Resistant | No |
| Oil/Grease Resistant | No |
