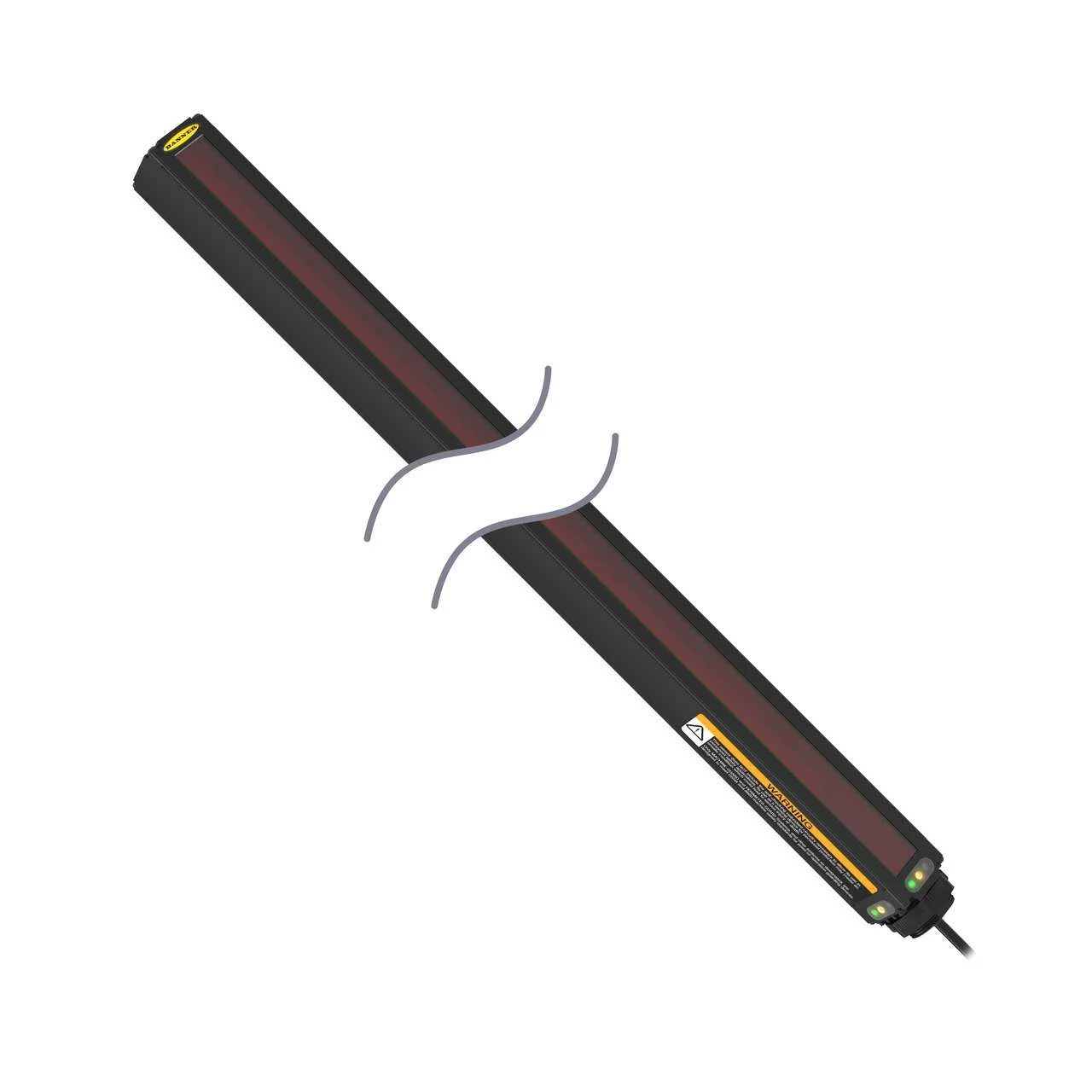

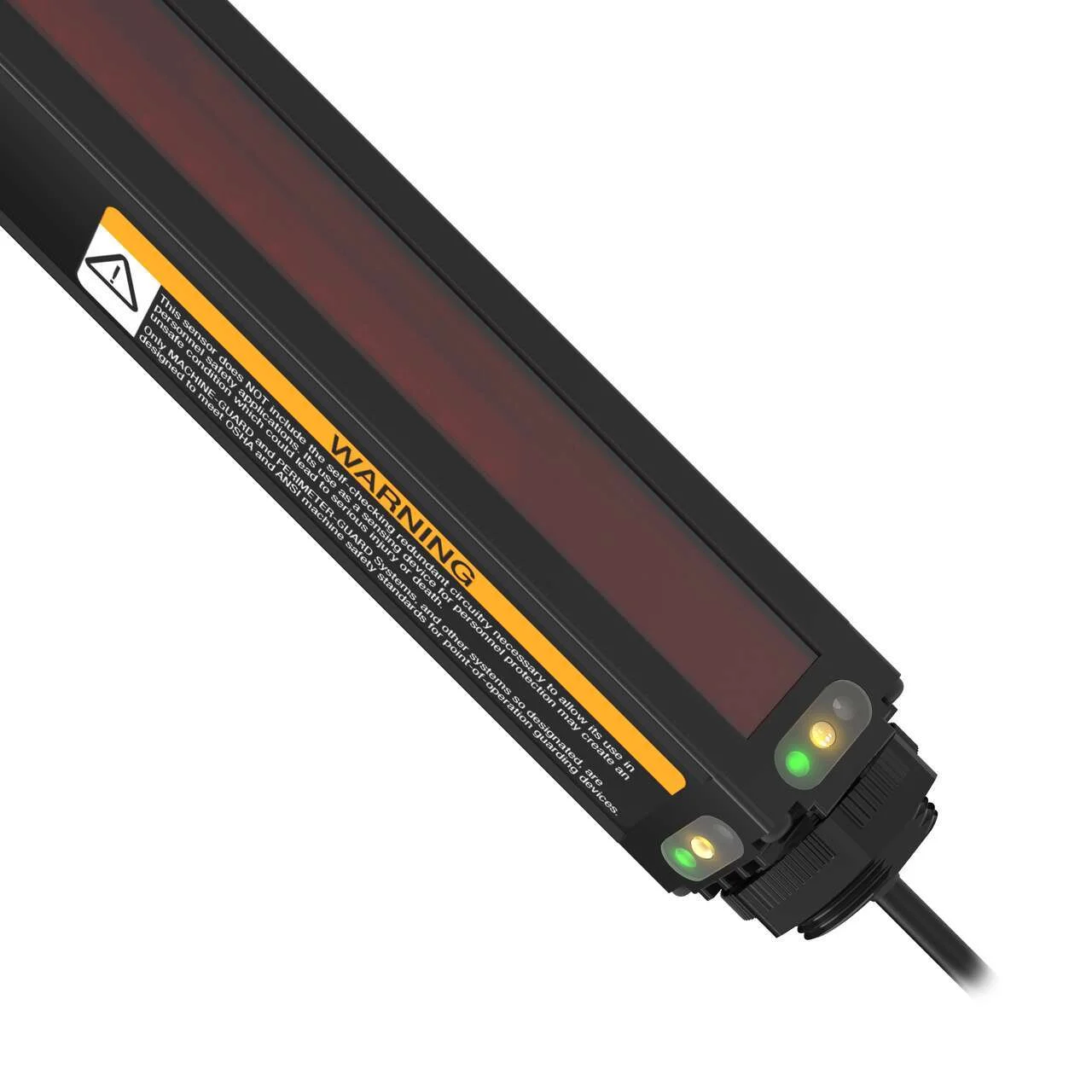

Banner Engineering MBE3016Q
2 Piece Mini-Array Basic Series: Emitter
3/4 in Optical Spacing, Sensing Length: 752 mm
Range: 2 m; Input Voltage 16-30 V dc
8-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
2 Piece Mini-Array Basic Series: Emitter
3/4 in Optical Spacing, Sensing Length: 752 mm
Range: 2 m; Input Voltage 16-30 V dc
8-pin M12 Integral QD
Specification
| Housing Length (Mm) | 837 |
|---|---|
| Min Temp (C) | -40 |
| Max Temp (C) | 70 |
| Short Range | No |
| Low Contrast | No |
| Supply Voltage | 16-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Emitter |
| Device Type | Two-Piece |
| Primary Housing Material | Aluminum |
| Beam Spacing | 19 mm |
| Quick Disconnect Type | M12 |
| Device Net | No |
| Io Link | No |
| Modbus Rtu | No |
| R S 232 | No |
| R S 485 | No |
| Array Length (Mm) | 752 |
| Number Of Beams | 40 |
| Minimum Object Sensitivity (Mm) | 25.4-38.1 |
| Max Relative Humidity | 95% |
| Emitter/Receiver Range (M) | 2 |
| Discrete Output | N/A |
| Analog Output | N/A |
