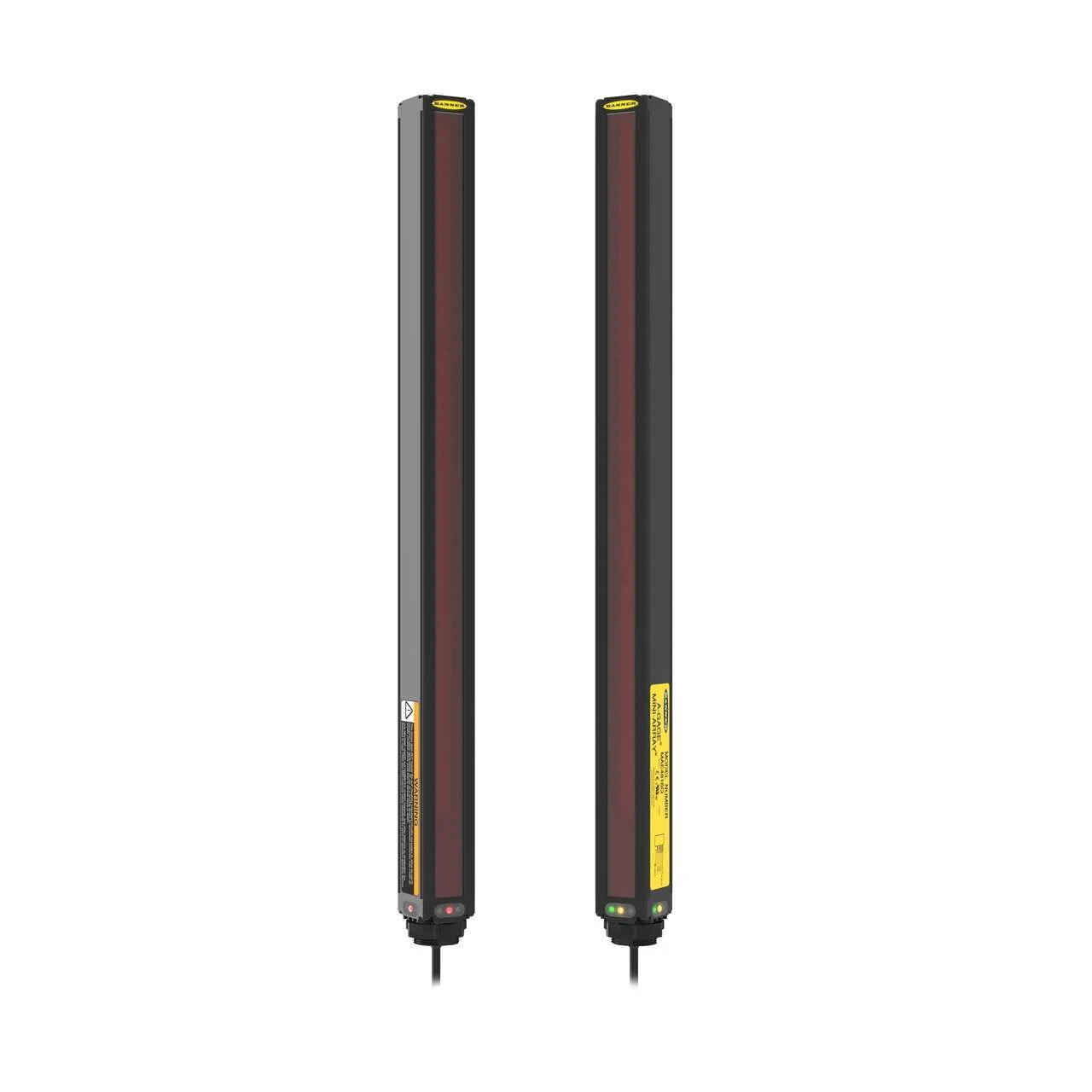

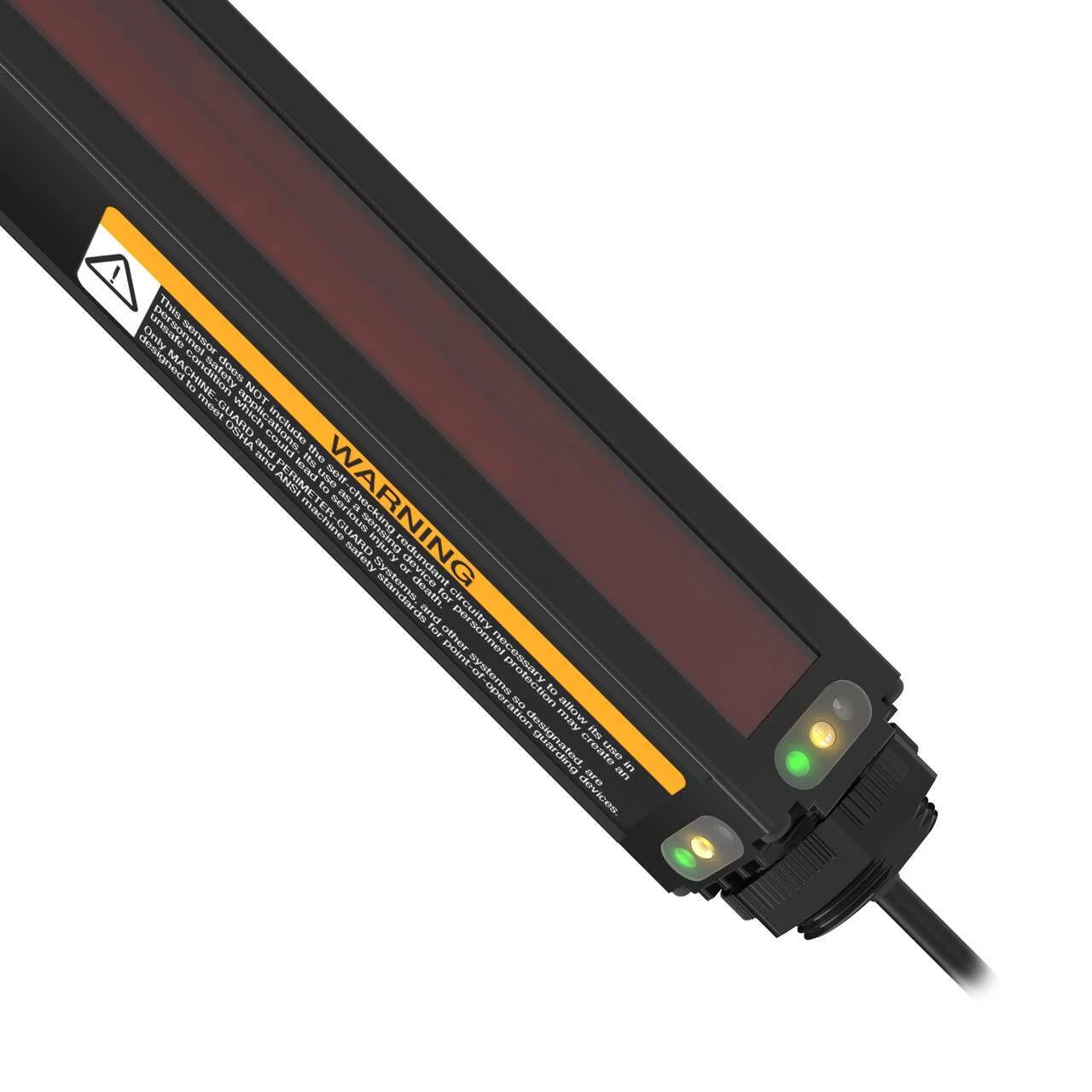

Banner Engineering MAR3616NX485Q-CNLW01
2 Piece Mini-Array Series: Receiver 3/4 in Optical Spacing
Range: 55 ft; Sensing Length: 36 in
Input Voltage 16-30 V; Outputs: 2 Bipolar
150 mm (6 in) 8-pin M12…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
2 Piece Mini-Array Series: Receiver 3/4 in Optical Spacing
Range: 55 ft; Sensing Length: 36 in
Input Voltage 16-30 V; Outputs: 2 Bipolar
150 mm (6 in) 8-pin M12 PVC Pigtail QD
Specification
| Housing Length (Mm) | 993 |
|---|---|
| Min Temp (C) | -40 |
| Max Temp (C) | 70 |
| Short Range | No |
| Low Contrast | No |
| Quick Disconnect Type | M12 |
| Supply Voltage | 16-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Receiver |
| Device Type | Two-Piece |
| Primary Housing Material | Aluminum |
| Beam Spacing | 19 mm |
| Device Net | No |
| R S 232 | No |
| R S 485 | Yes |
| Array Length (Mm) | 905 |
| Number Of Beams | 48 |
| Minimum Object Sensitivity (Mm) | 25.4-38.1 |
| Max Relative Humidity | 95% |
| Emitter/Receiver Range (M) | 0.9 – 16.5 |
| Discrete Output | NPN |
| Analog Output | N/A |
