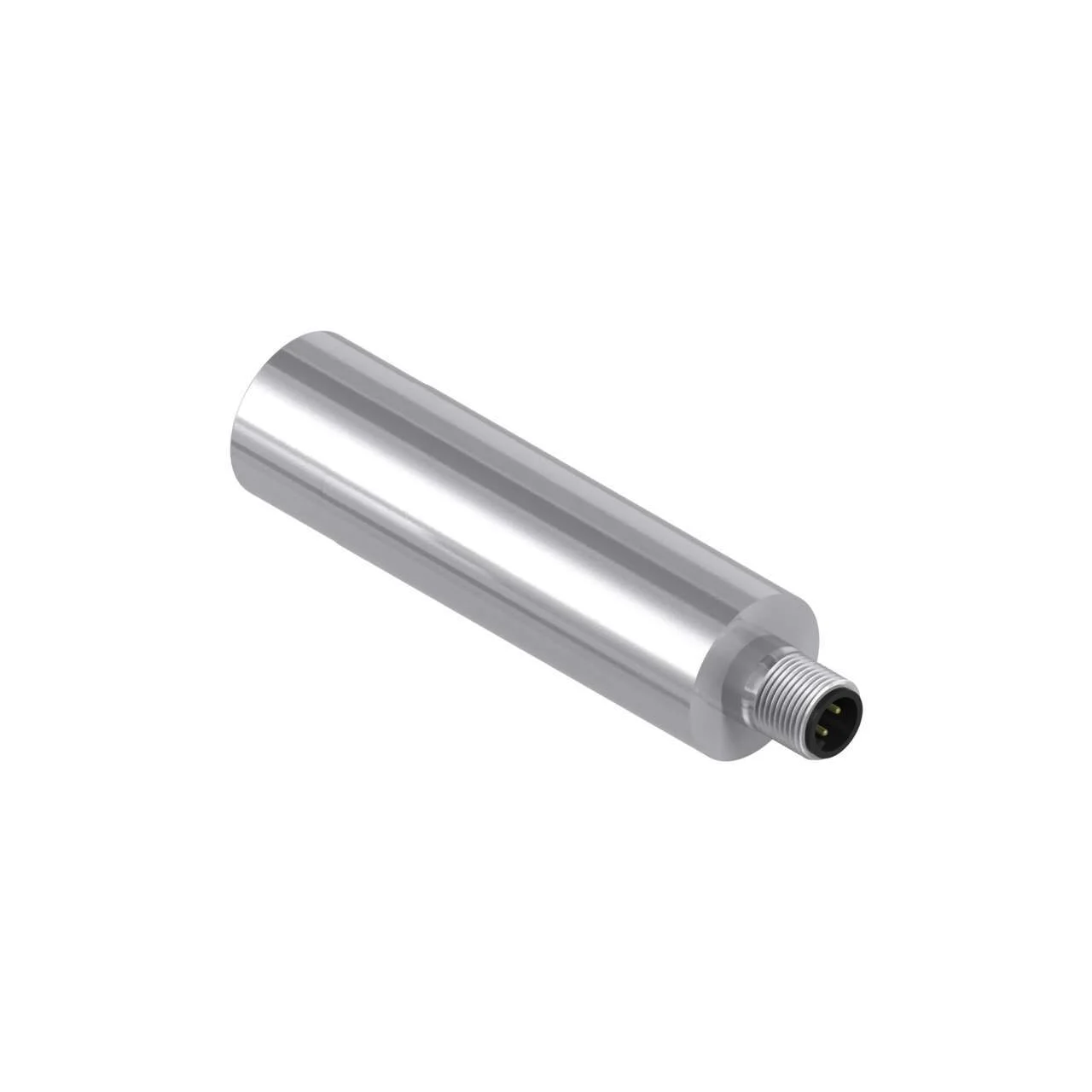

Banner Engineering M25UEQ8
M25U Series Ultrasonic Emitter
Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc
Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP)
5-pin M12…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M25U Series Ultrasonic Emitter
Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc
Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP)
5-pin M12 QD
Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP)
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Sensing Beam | Ultrasonic |
| Jam Detection | No |
| Pc Configurable | No |
| Ip Rating | IP67, IP69K |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Barrel |
| Device Type | Sensor |
| Primary Housing Material | Stainless Steel |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (Mm) | 500 |
| Number Of Pins | 4 |
| Barrel Thread | M25 |
| Ultrasonic Frequency (Khz) | 140 |
| Laser Control | No |
| Feature: Remote Teach | No |
| Feature: Washdown Rated | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Ecolab Certified | Yes |
| Feature: Chemical Resistant | Yes |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| R S 232 | No |
| Eplan Status | Published |
