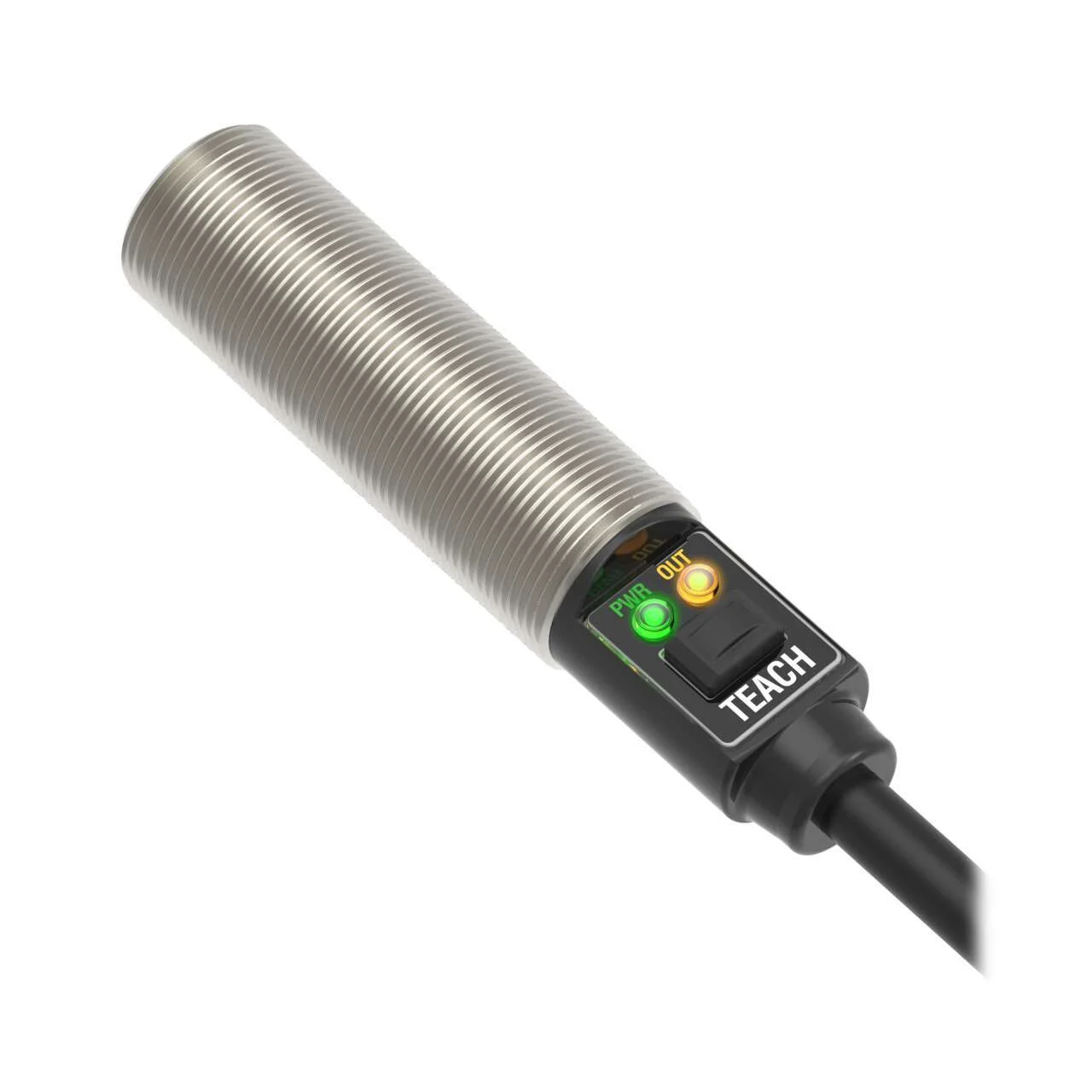

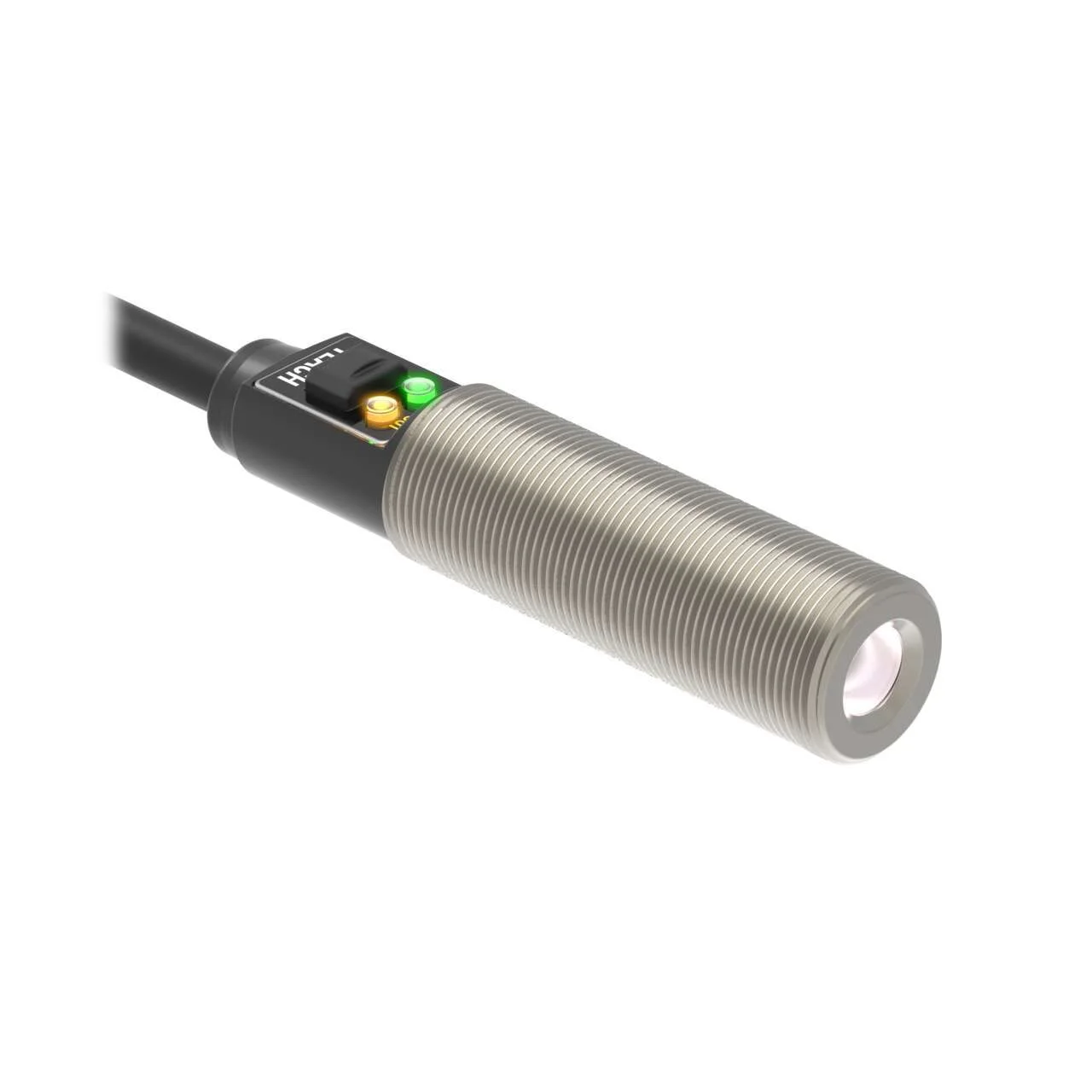

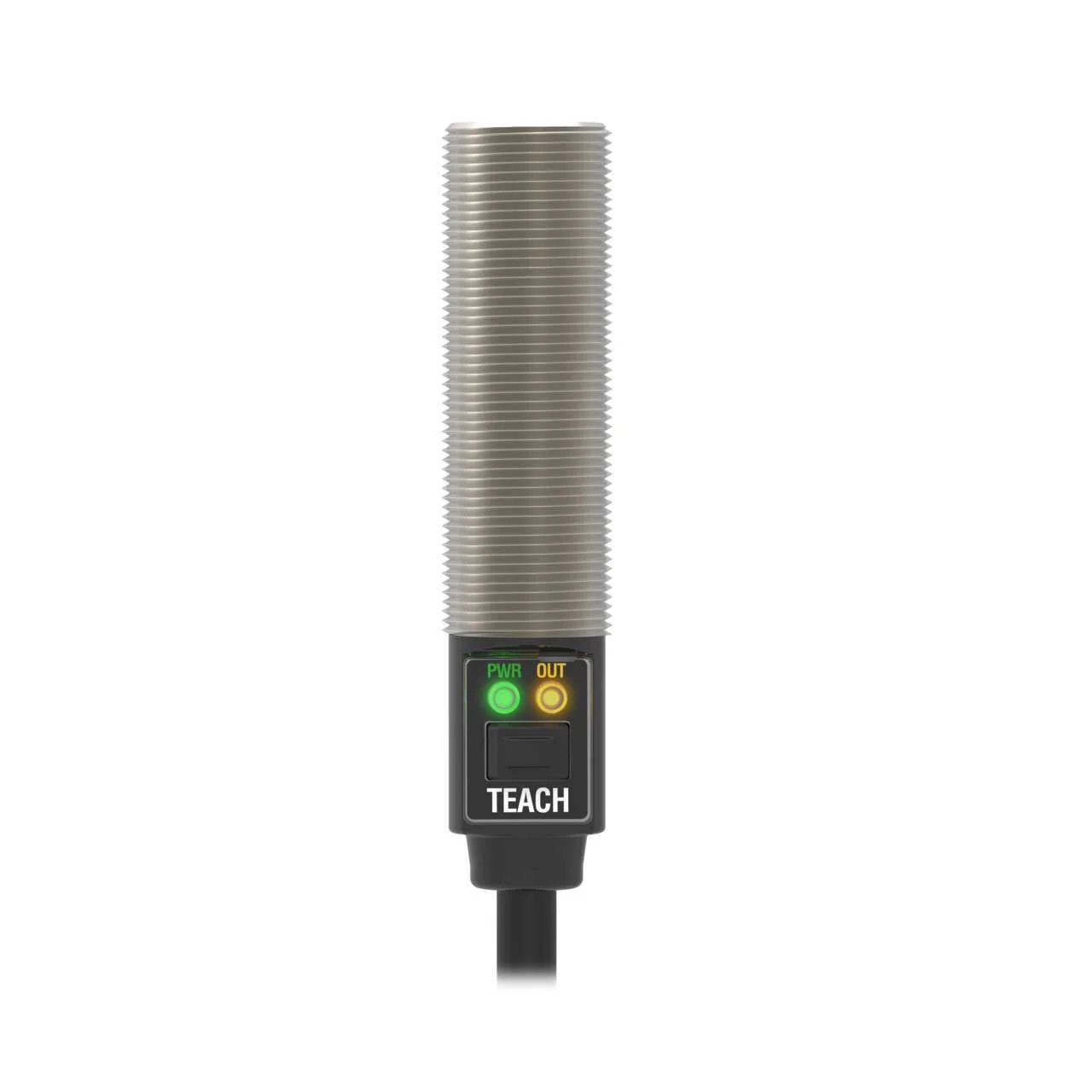

Banner Engineering M18TUP8
M18T Series: Temperature Sensor
8: 1 Integrated Lens
Output: Analog 0-10 V; PNP Alarm
2 m (6.5 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M18T Series: Temperature Sensor
8: 1 Integrated Lens
Output: Analog 0-10 V; PNP Alarm
2 m (6.5 ft) Cable
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Jam Detection | No |
| Cable Length (M) | 2 |
| Pc Configurable | Yes |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 6 |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Diffuse |
| Housing Style | Barrel |
| Device Type | Sensor |
| Primary Housing Material | Stainless Steel |
| Input/ Output | Analog |
| Analog Output Configuration | 0-10 V dc |
| Connection | Flying Leads |
| Adjustments | Push Button; Remote Teach |
| Number Of Pins | 5 |
| Max Operating Temperature (C) | 70 |
| Min Operating Temperature (C) | -20 |
| Minimum Response Time (Ms) | 25 |
| Barrel Thread | M18 |
| Laser Control | No |
| Feature: Remote Teach | Yes |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Chemical Resistant | Yes |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | Yes |
| Application: Ultrasonic | No |
| Common Ethernet Protocol | No |
| R S 232 | No |
| Wireless | No |
