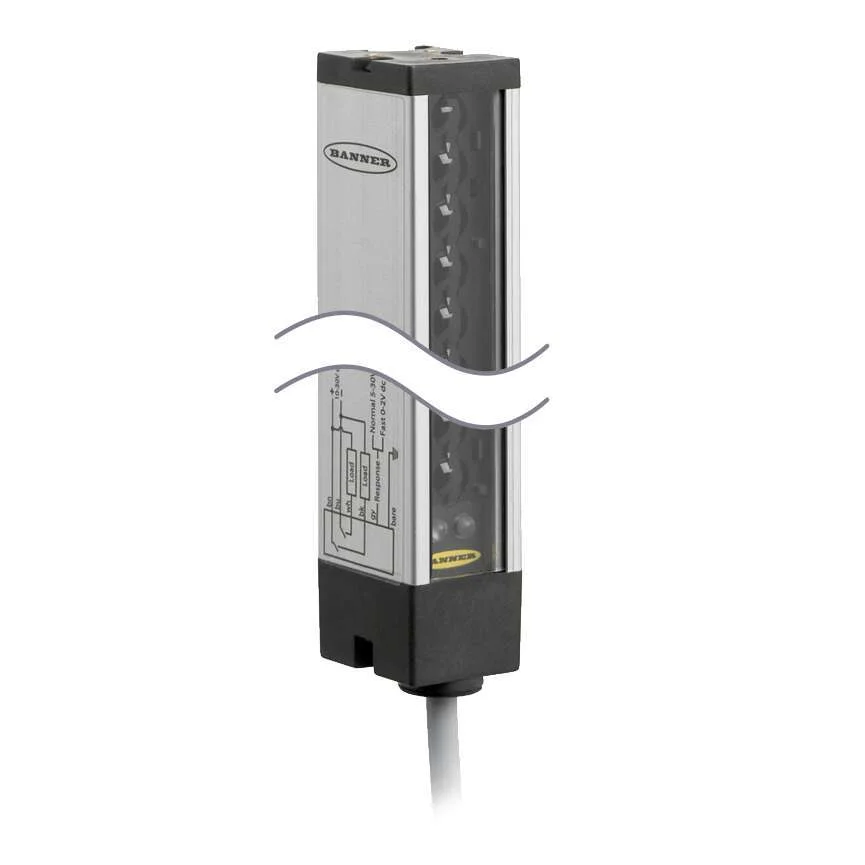

Banner Engineering LX36E
LX Series: Emitter; Standard Range
Range: Normal 300 mm – 2 m; Input 10-30 V dc
Output: No output
2 m (6.5 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LX Series: Emitter; Standard Range
Range: Normal 300 mm – 2 m; Input 10-30 V dc
Output: No output
2 m (6.5 ft) Cable
Specification
| Cable Length (M) | 2 |
|---|---|
| Ip Rating | IP65 |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Array |
| Primary Housing Material | Aluminum |
| Max Sensing Range (Mm) | 2000 |
| Slot Depth/Array Length (Mm) | 914 |
| Connection | Cable |
| Minimum Object Detection [Mm] | 9.5 |
| Slot Overall Depth (Mm) | 31.8 |
| Number Of Pins | 5 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | N/A |
| Lens Material | Acrylic |
| Special Feature: Remote Teach | No |
| Operation | N/A |
| Indicator | LEDs |
| Max Op. Temperature (C) | 70 |
| Min Op. Temperature (C) | -20 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Feature: Quick Disconnect | No |
