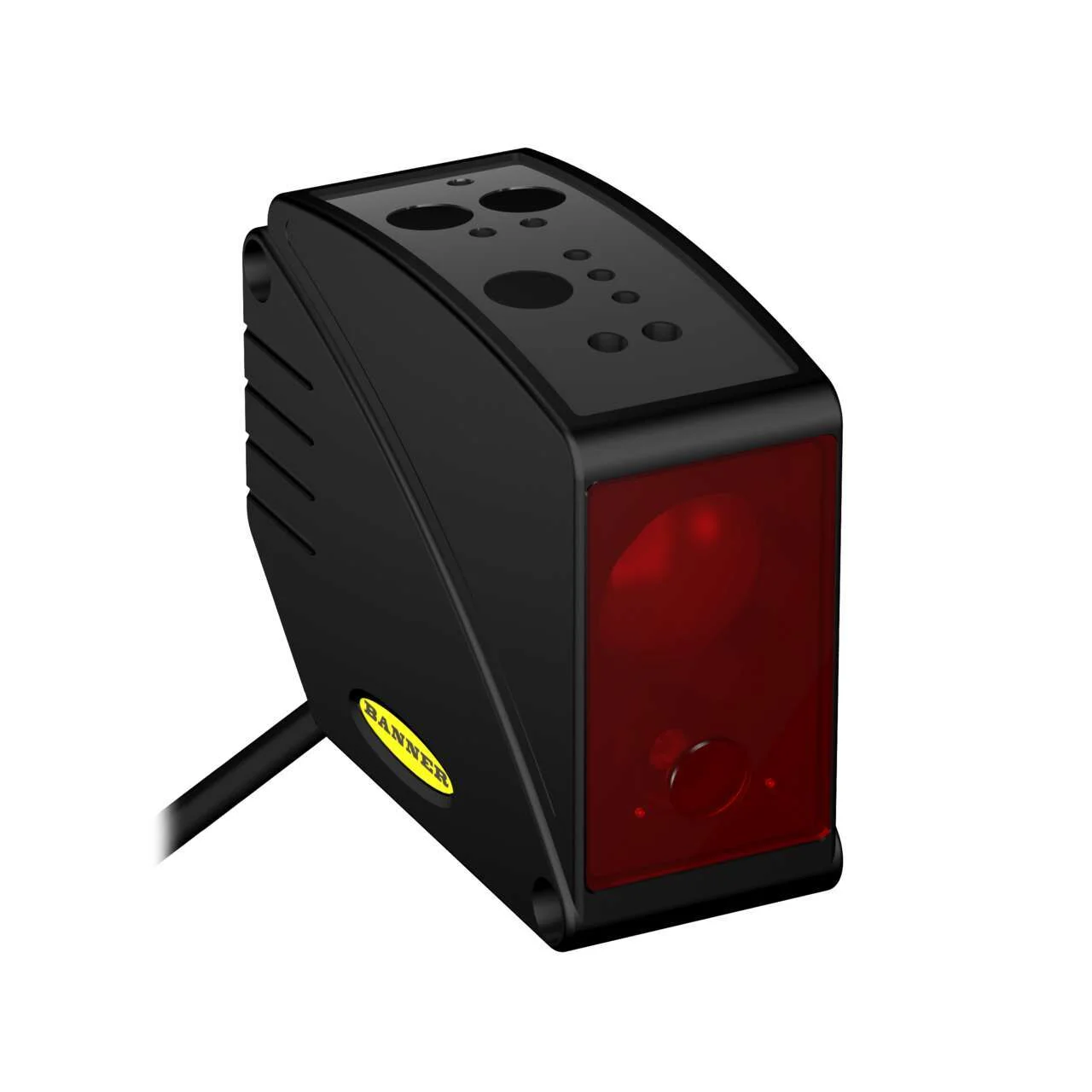

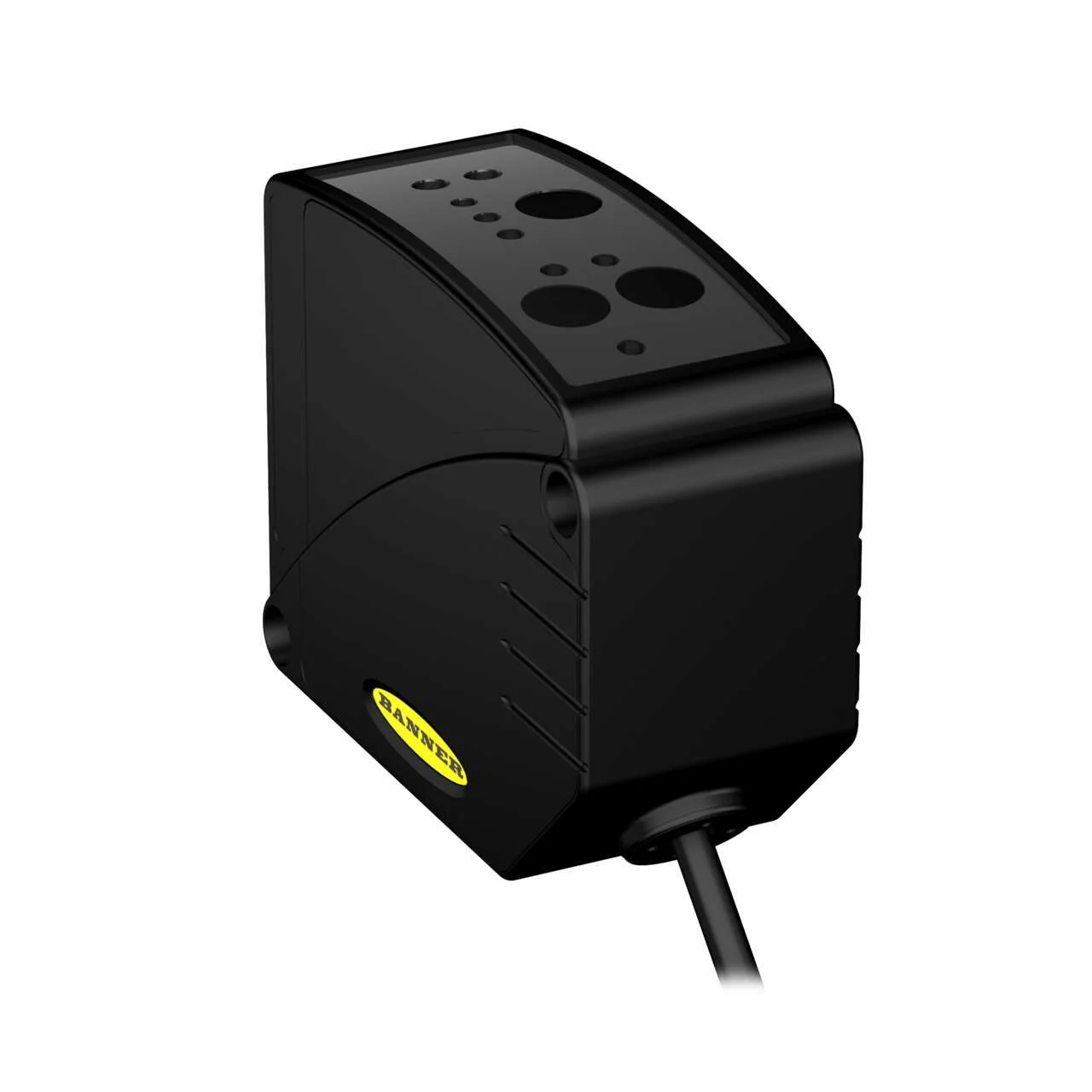

Banner Engineering LT3PI W/30
LT3 Series: Diffuse T.O.F. Laser Distance Measurement
Range: 0.3-5.0 m; Input: 12-24 V dc
Analog Output: 4-20 mA; Discrete Output: PNP
9 m (30 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LT3 Series: Diffuse T.O.F. Laser Distance Measurement
Range: 0.3-5.0 m; Input: 12-24 V dc
Analog Output: 4-20 mA; Discrete Output: PNP
9 m (30 ft) Cable
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Sensing Beam | Visible Red Laser |
| Jam Detection | No |
| Cable Length (M) | 9 |
| Pc Configurable | No |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-24 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | ABS |
| Laser Classification | Class 2 |
| Input/ Output | Analog & Discrete |
| Analog Output Configuration | 4-20 mA |
| Connection | Flying Leads |
| Max Sensing Distance (Mm) | 5000 |
| Minimum Sensing Distance (Mm) | 300 |
| Adjustments | Push Button; Remote Teach |
| Number Of Pins | 8 |
| Discrete (Switched) Outputs | 1 PNP |
| Max Operating Temperature (C) | 50 |
| Minimum Response Time (Ms) | 1 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 5000 |
| Feature: Remote Teach | Yes |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Chemical Resistant | No |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Application: Ultrasonic | No |
| Common Ethernet Protocol | No |
| Io Link | No |
| R S 232 | No |
| Wireless | No |
