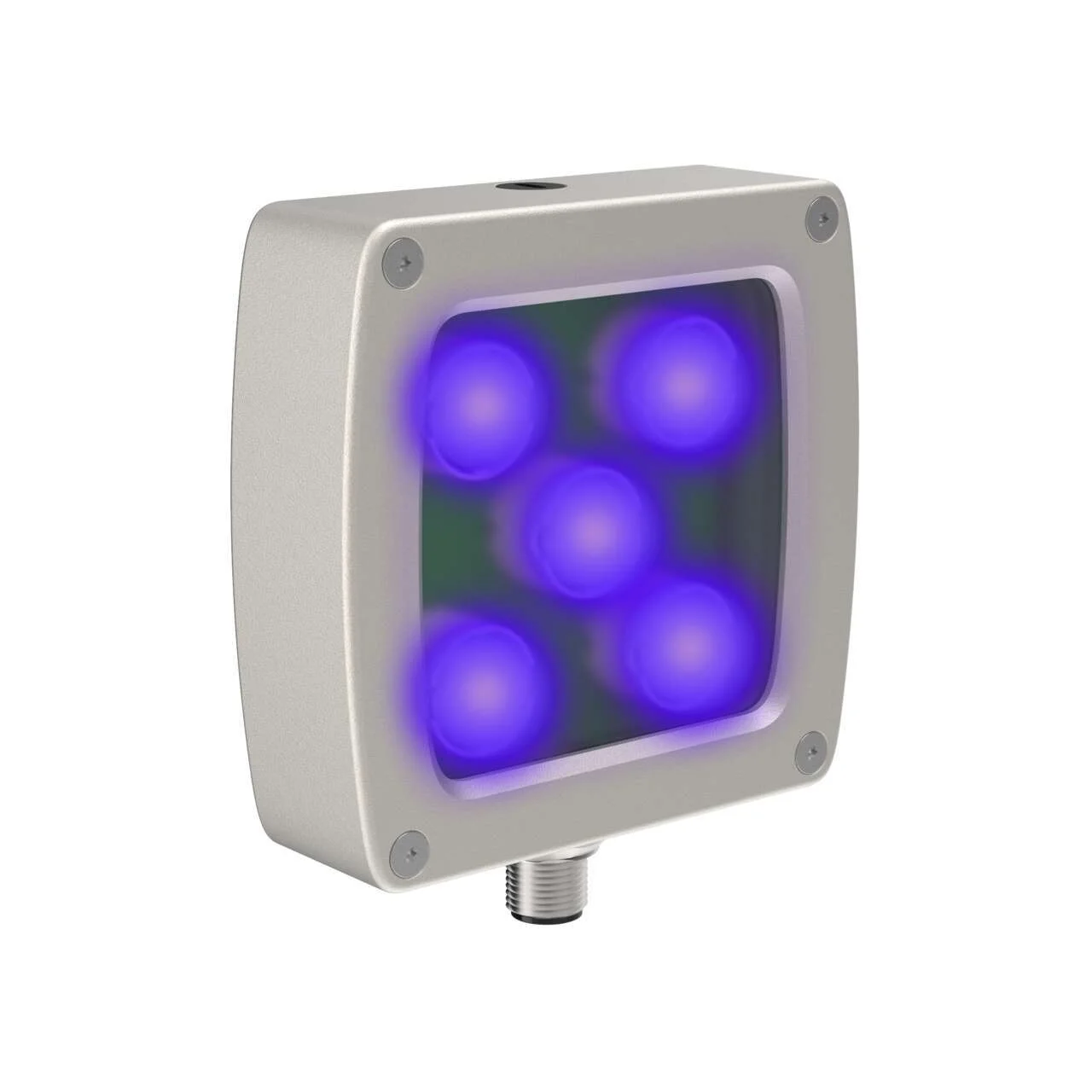

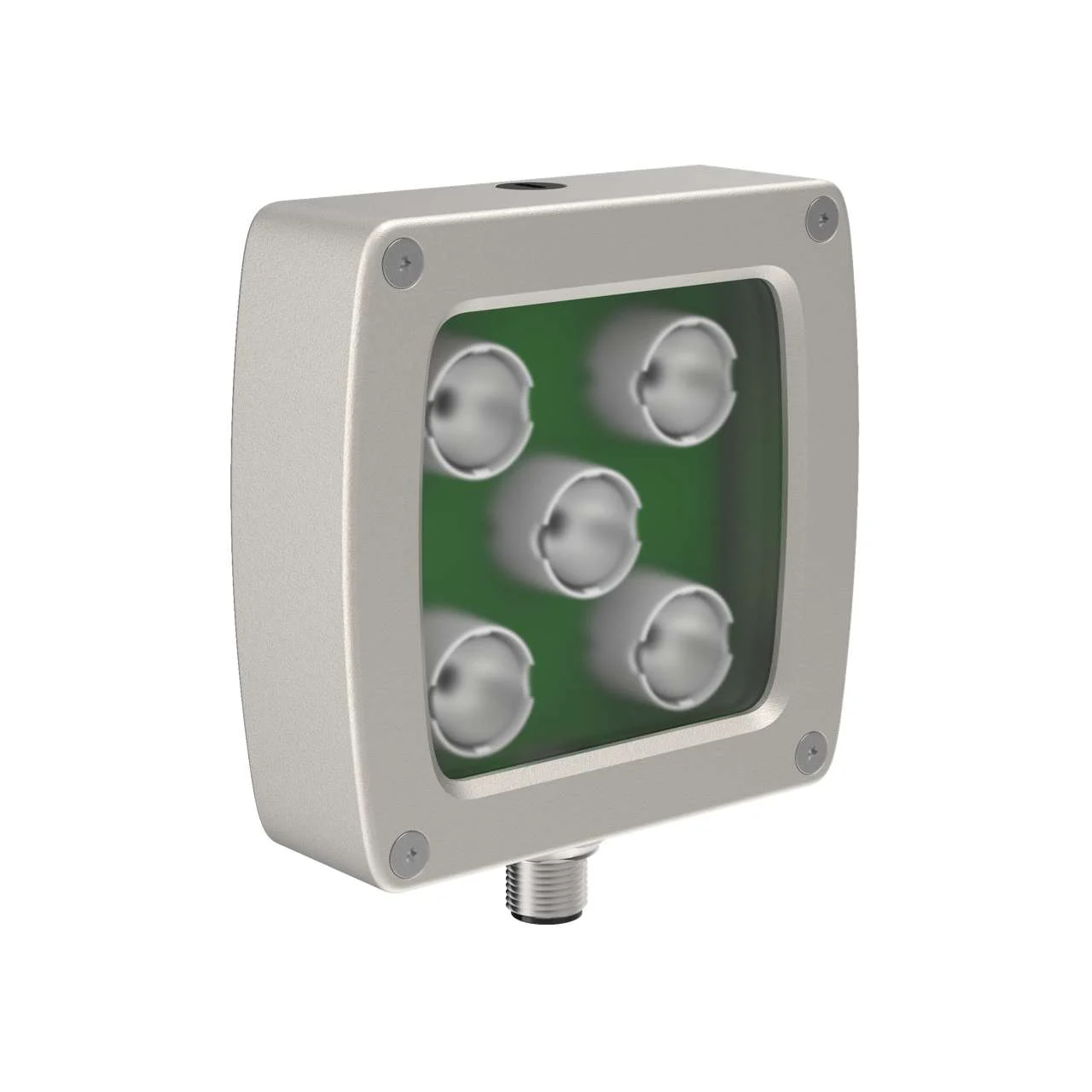

Banner Engineering LEDUV395A70AP5-XQ
Vision Light: 70 mm Area – IP68
5 High Intensity 395 nm UV LEDs – 24 V dc
Clear Plastic Window
Requires Cable MQDC20-xxx
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Vision Light: 70 mm Area – IP68
5 High Intensity 395 nm UV LEDs – 24 V dc
Clear Plastic Window
Requires Cable MQDC20-xxx
Specification
| Power | DC |
|---|---|
| Ip Rating | IP68 |
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Device Type | Area Light |
| Primary Housing Material | Nickel-Plated Aluminum |
| Color | Ultraviolet |
| Window Material | Acrylic |
| Connection Type | Integral QD |
| Qd Type/Cable Length | M12; requires mating cordset |
| Number Of Input Pins/Conductors | 5 |
| Color Technology | Standard LED |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 500 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 102.0 x 91.0 x 28.2 |
| High Temperature (Up To 100 C) | 50 |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Quick Disconnect | Yes |
