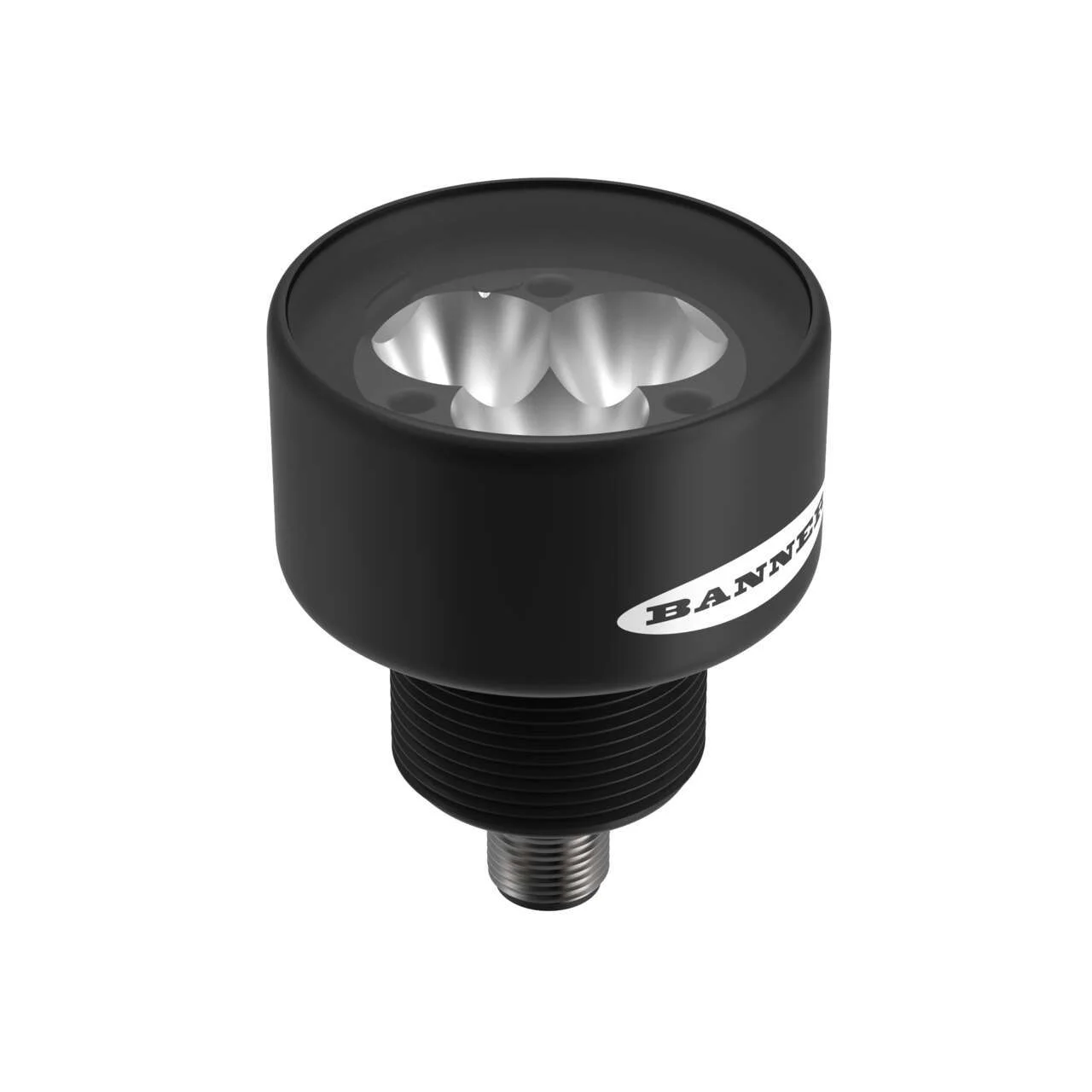

Banner Engineering LEDRS50L5-XQ
Vision Light-50 mm Spot Light
Voltage: 12-30 V dc; Environmental Rating: IP67
Color: Red; 5 Deg Lens
5-pin M12 QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Vision Light-50 mm Spot Light
Voltage: 12-30 V dc; Environmental Rating: IP67
Color: Red; 5 Deg Lens
5-pin M12 QD
Specification
| Power | DC |
|---|---|
| Ip Rating | IP67, IP69K |
| Item Status | RELEASED |
| Housing Style | Circular Spot |
| Device Type | Spot Light |
| Primary Housing Material | Anodized Aluminum |
| Color | Red |
| Window Material | Acrylic |
| Connection Type | Integral QD |
| Qd Type/Cable Length | M12; requires mating cordset |
| Number Of Input Pins/Conductors | 5 |
| Color Technology | Standard LED |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 400 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 64.1 |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Lens Focusing Angle/Fov (Degrees) | 5 |
| Feature: Washdown Rated | Yes |
| Feature: Illuminated | No |
| Feature: Quick Disconnect | Yes |
