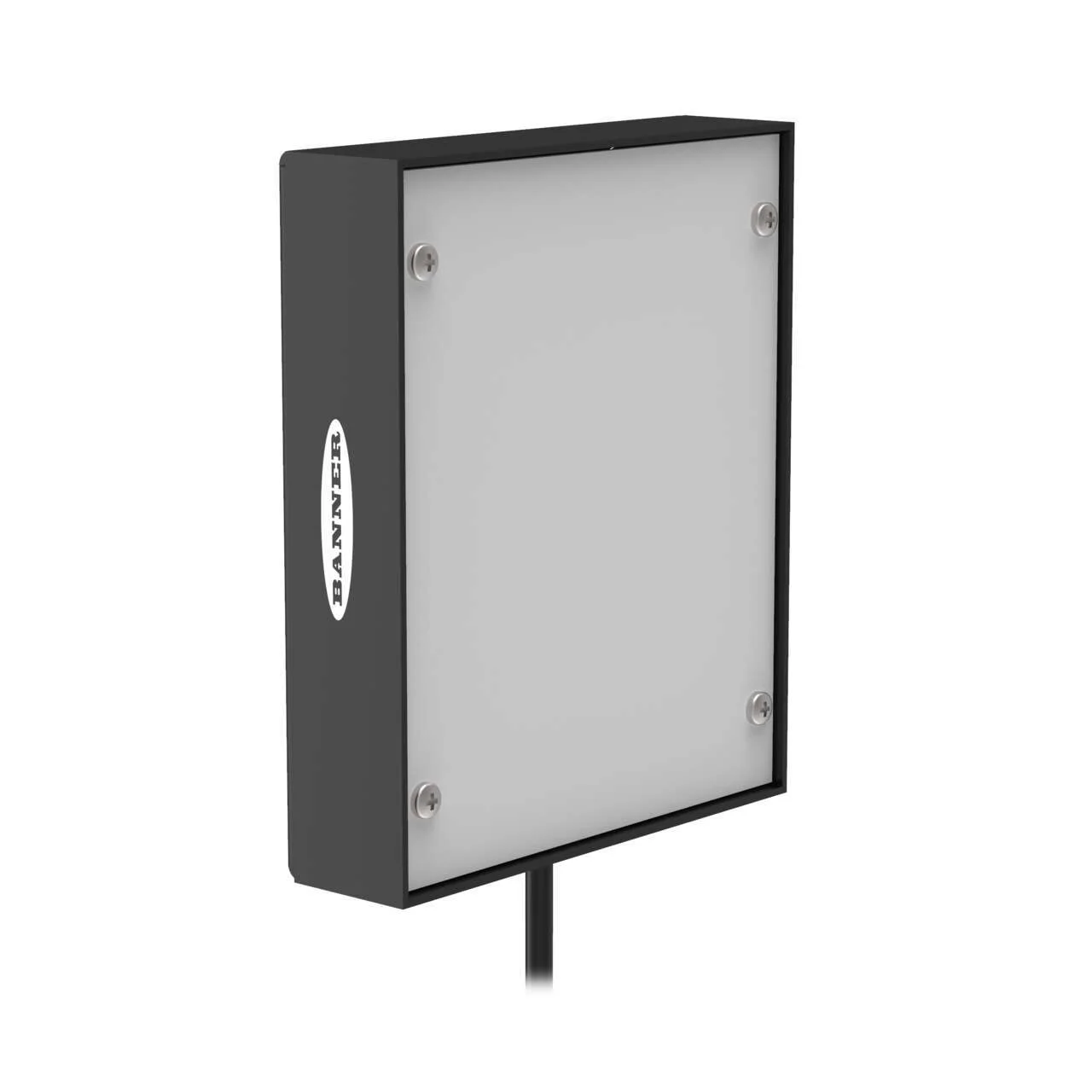

Banner Engineering LEDRB70X70QPMA
PresencePLUS 70 x 70 mm Backlight
Visible Red LED 24 V dc
4-pin M12 male Connector Pin 2 OPEN
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PresencePLUS 70 x 70 mm Backlight
Visible Red LED 24 V dc
4-pin M12 male Connector Pin 2 OPEN
Specification
| Power | DC |
|---|---|
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Device Type | Backlight |
| Primary Housing Material | Low-Carbon Steel |
| Color | Red |
| Window Material | Acrylic |
| Connection Type | Pigtail PUR QD |
| Qd Type/Cable Length | 150 mm; M12; requires mating cordset |
| Number Of Input Pins/Conductors | 4 |
| Color Technology | Standard LED |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 250 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 110.4 x 92.6 x 25.0 |
| High Temperature (Up To 100 C) | 50 |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Quick Disconnect | Yes |
