Banner Engineering LEDBR70XD5-XQ

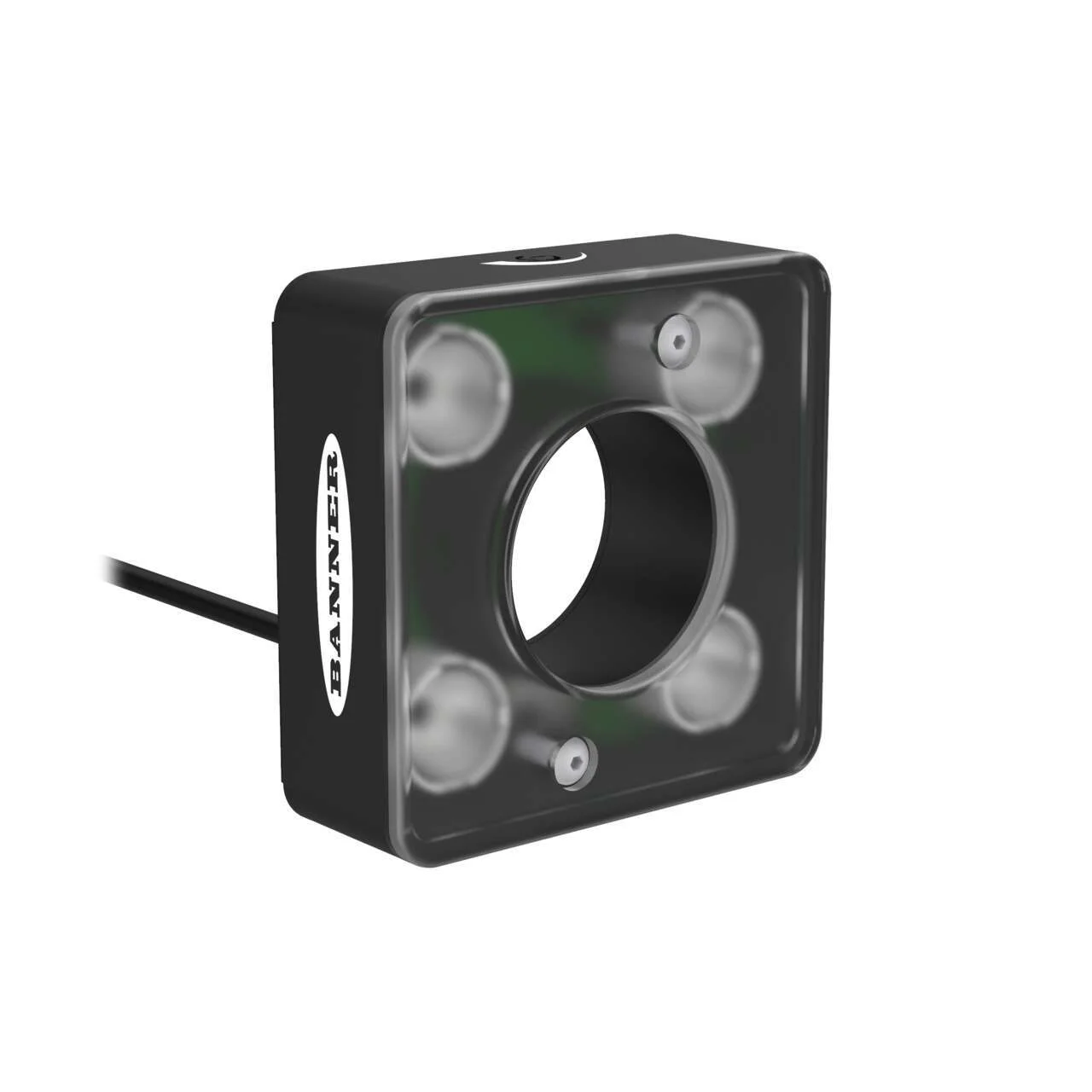

LEDBR70XD5-XQ LED High Intensity Ring Light
LED Color: Blue 465 nm to 485 nm
Input: +24 V dc; Light Intensity Adjustment
150 mm (6 in) 5-pin M12 Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LEDBR70XD5-XQ LED High Intensity Ring Light
LED Color: Blue 465 nm to 485 nm
Input: +24 V dc; Light Intensity Adjustment
150 mm (6 in) 5-pin M12 Pigtail QD
Specification
| Power | DC |
|---|---|
| Cable Length (M) | 0.15 |
| Ip Rating | IP50 |
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Device Type | Ring Light |
| Primary Housing Material | Anodized Aluminum |
| Color | Blue |
| Window Material | Acrylic |
| Connection Type | Integral QD |
| Qd Type/Cable Length | M12; requires mating cordset |
| Number Of Input Pins/Conductors | 5 |
| Color Technology | Standard LED |
| Connection | Pigtail QD |
| Max Current Color (Ma) | 350 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 76.2 x 76.2 x 38.7 |
| High Temperature (Up To 100 C) | 50 |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Quick Disconnect | Yes |
