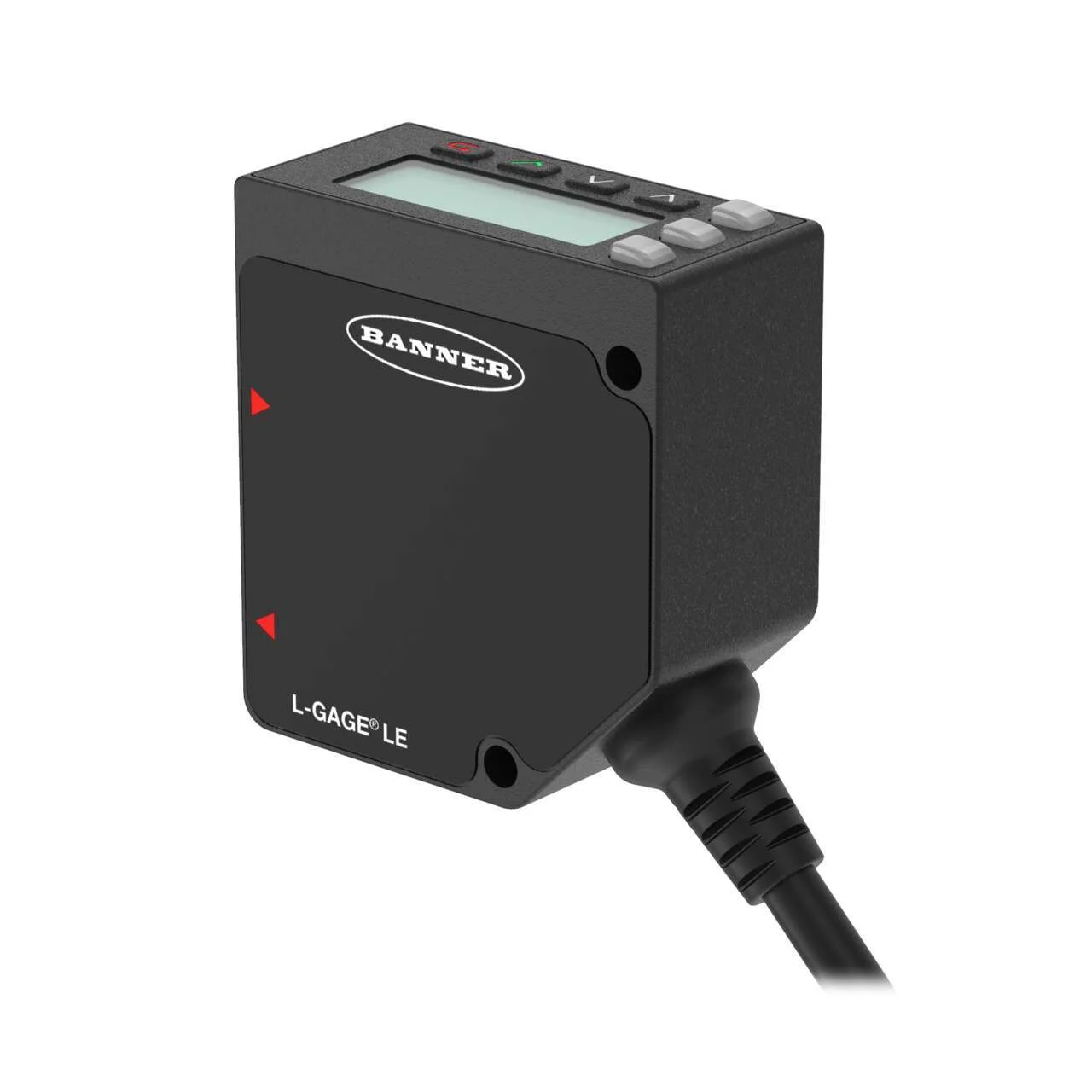

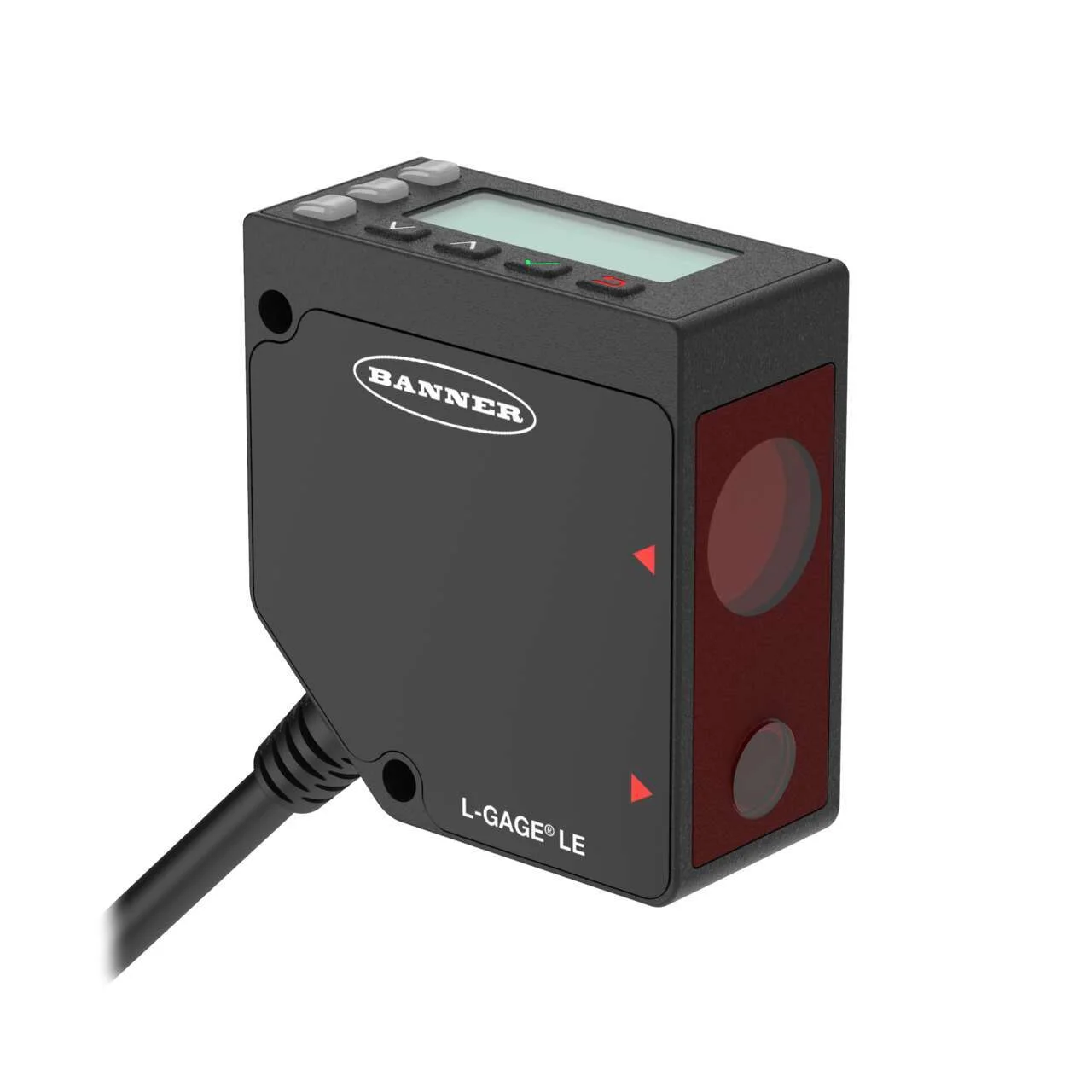

Banner Engineering LE250D W/30
Laser Displacement Sensor; Range: 100-400 mm
Input: 12-30 V dc; Outputs: Discrete: 2 NPN/PNP Configurable; 9 m (30 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser Displacement Sensor; Range: 100-400 mm
Input: 12-30 V dc; Outputs: Discrete: 2 NPN/PNP Configurable; 9 m (30 ft) Cable
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Sensing Beam | Visible Red Laser |
| Jam Detection | No |
| Cable Length (M) | 9 |
| Pc Configurable | No |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Triangulation |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | Zinc Alloy Die-Cast |
| Laser Classification | Class 2 |
| Input/ Output | Discrete |
| Connection | Flying Leads |
| Max Sensing Distance (Mm) | 400 |
| Minimum Sensing Distance (Mm) | 100 |
| Adjustments | Push Button; Remote Teach |
| Number Of Pins | 5 |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Max Operating Temperature (C) | 55 |
| Min Operating Temperature (C) | -20 |
| Minimum Response Time (Ms) | 2 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 10000 |
| Feature: Remote Teach | Yes |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Chemical Resistant | No |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | Yes |
| Application: Ultrasonic | No |
| Common Ethernet Protocol | No |
| Io Link | No |
| R S 232 | No |
| Wireless | No |
