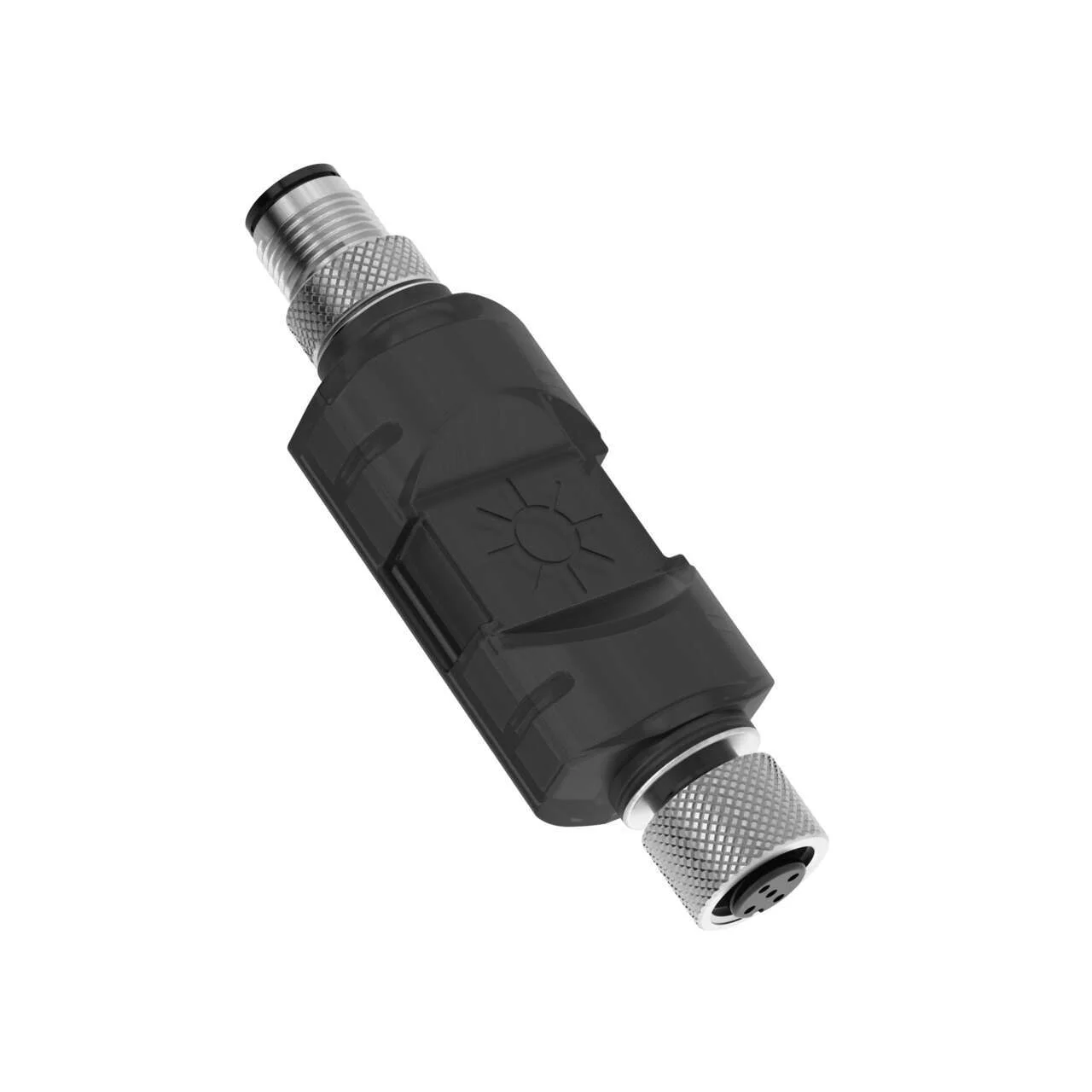

Banner Engineering LC25T-AL2RGQ
LC25T Light Controller; 2-Color Touch Sensor
Voltage: 10-30 V dc; 4 A; Environmental Rating: IP66, IP67
Colors: Red Green; ON/OFF
4-pin M12 Male-Female Integral…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LC25T Light Controller; 2-Color Touch Sensor
Voltage: 10-30 V dc; 4 A; Environmental Rating: IP66, IP67
Colors: Red Green; ON/OFF
4-pin M12 Male-Female Integral QDs
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP66, IP67, IP68 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Inline |
| Primary Housing Material | PVC |
| Indication | Yes |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | No Thread |
| Number Of Colors | 2 |
| Product Size (Mm) | 25 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Color Option 2 | Green |
| Max Current Color (Ma) | 16 |
| Number Of Input Pins/Conductors | 4 |
| Operation | Normally Open |
| Output Type | PNP |
| Input Type | PNP |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 84.8 x 25 x 16.8 |
| Environmental Rating | IP66; IP67; IP68 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 60 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Latching |
| Secondary Material | Metal |
| Illumination Switch Function | I=Color 1; O=OFF; II=Color 2 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 09/22/2023 |
