Banner Engineering K90FDLGYRP

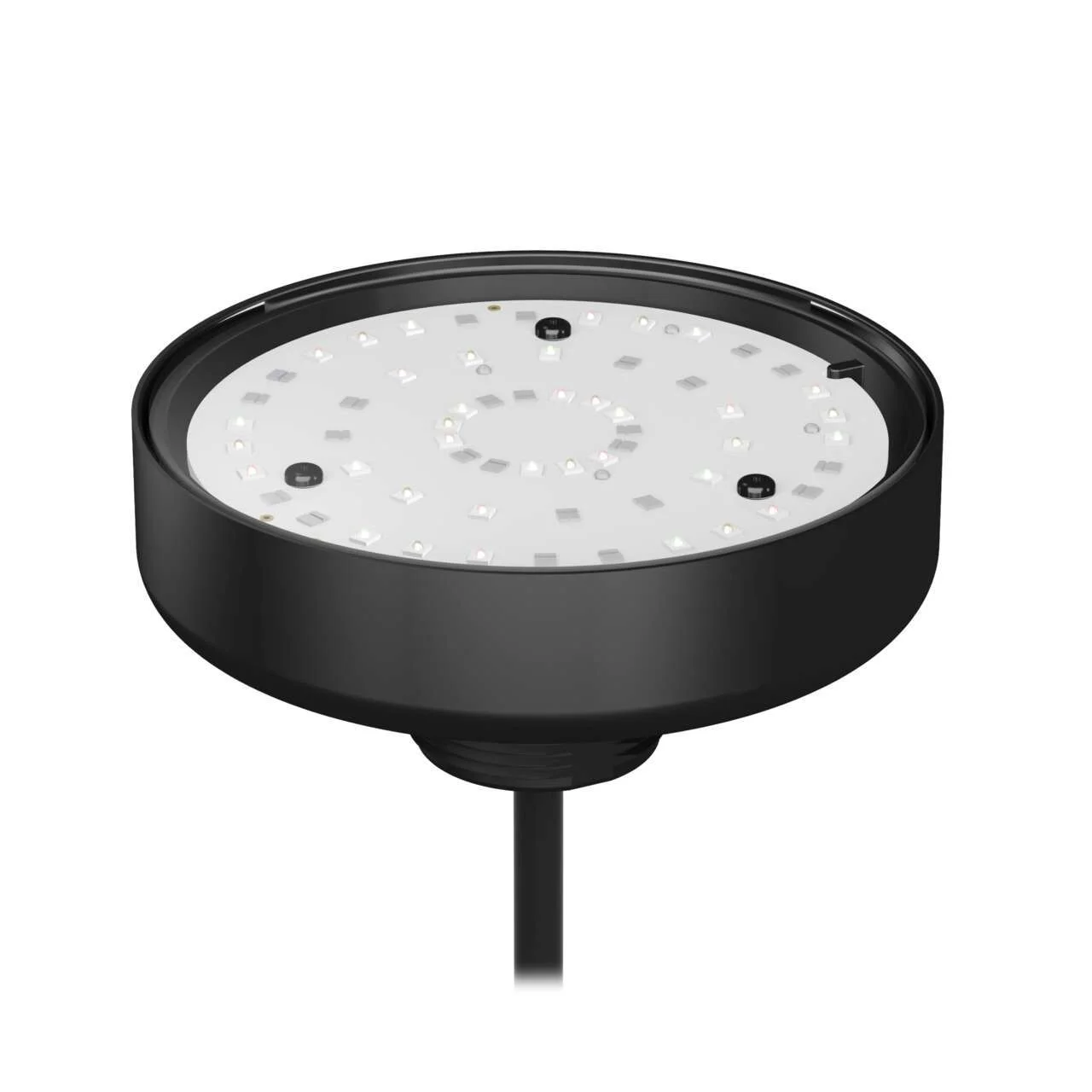

K90F Series EZ-LIGHT; 3-Color Daylight Visible Indicator
Voltage: 12-30 V dc; Environmental Rating: IP67
Input: PNP; Colors: Green Yellow Red
2 m (6.5 ft) Integ…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K90F Series EZ-LIGHT; 3-Color Daylight Visible Indicator
Voltage: 12-30 V dc; Environmental Rating: IP67
Input: PNP; Colors: Green Yellow Red
2 m (6.5 ft) Integral Cable
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Display | No |
| Nema / Ul Type Rating | NEMA 4X, 13 |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Base Mount – Flat Window |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 90 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 175 |
| Color 1 Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 2 | Yellow |
| Lumens Color 2 | 43.0 |
| Color 2 Wavelength/Color Temp/Coordinates | 590 nm |
| Color Option 3 | Red |
| Lumens Color 3 | 83.0 |
| Color 3 Wavelength/Color Temp/Coordinates | 625 nm |
| Max Current Color (Ma) | 475 |
| Wire Selectable Function | Flashing |
| Number Of Input Pins/Conductors | 5 |
| Input Type | PNP |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 75 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 90.0 x 42.0 |
| Environmental Rating | IP67 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Primary Window Material | Polycarbonate Clear |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
