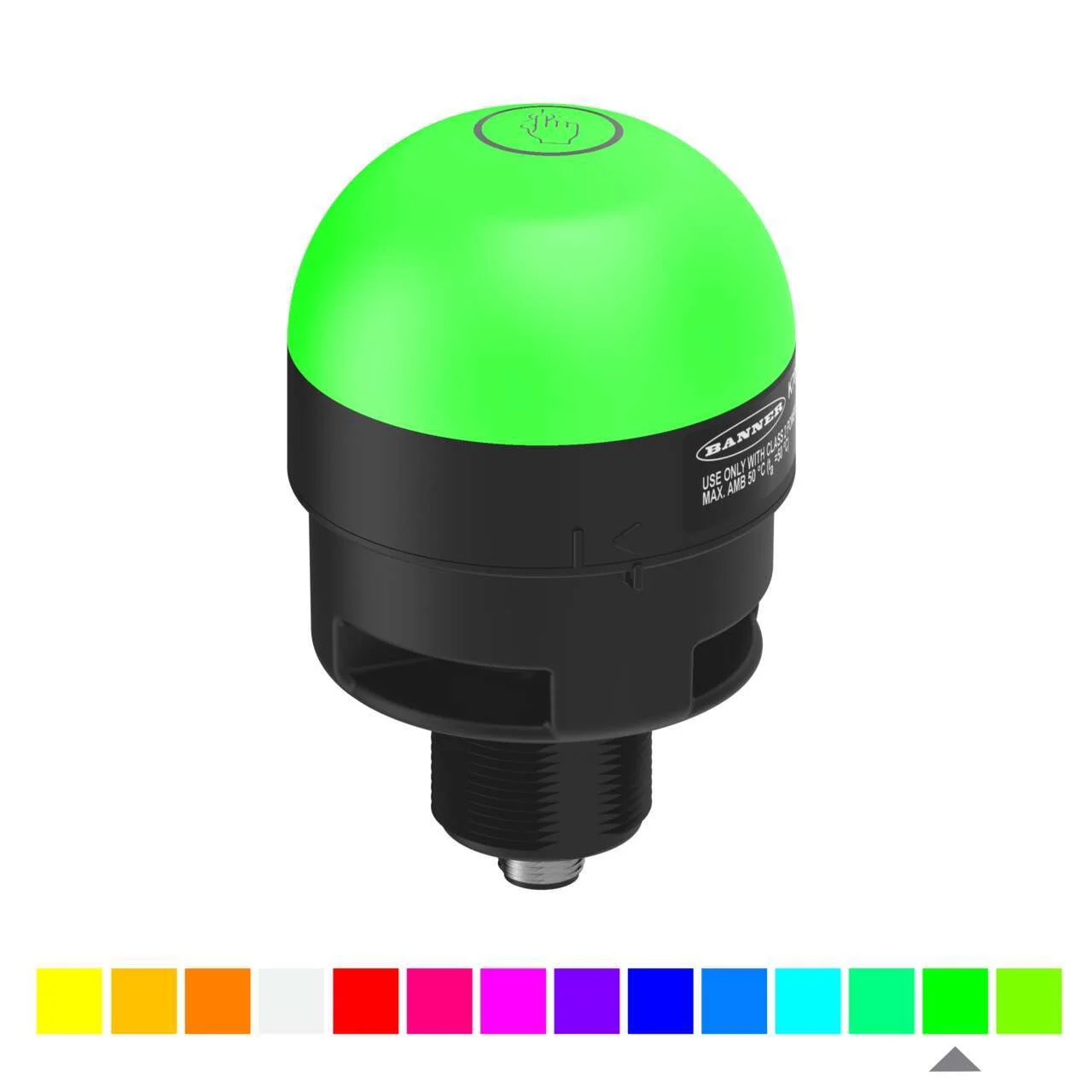

Banner Engineering K70PTALGRY3AQ
K70 Pro Touch Series: 3-Color RGB Touch Sensor with Audible
12-30 V dc; Polycarbonate; IP65
Bimodal, NO, Latching; Multicolor
5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K70 Pro Touch Series: 3-Color RGB Touch Sensor with Audible
12-30 V dc; Polycarbonate; IP65
Bimodal, NO, Latching; Multicolor
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 50 |
| Vibration Feedback | No |
| Color Technology | RGB Configurable |
| Color Option 1 | Green |
| Connection | Integral QD |
| Lumens Color 1 | 46.6 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 532 nm |
| Color Option 2 | Yellow |
| Lumens Color 2 | 36.4 |
| Color 2 Wavelength/Color Temp/Coordinates | 578 nm |
| Color Option 3 | Red |
| Lumens Color 3 | 26.0 |
| Color 3 Wavelength/Color Temp/Coordinates | 621 nm |
| Max Current Color (Ma) | 200 |
| Pick To Light Function | F2 |
| Wire Selectable Function | Programmable |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open |
| Audible Alarm Type | Programmable |
| Output Type | Bipolar (NPN & PNP) |
| Input Type | Bimodal (PNP/NPN) |
| Max Audible Intensity (Db At 1M) | 103 |
| Min Audible Intensity (Db At 1M) | 95 |
| I/O Block Compatible | No |
| Audible Operating Frequency (Khz) | 2.5 |
| Max Input Response Time (Ms) | 40 |
| Max Output Response Time (Ms) | 300 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 70.0 x 102.7 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Latching |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | Yes |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
