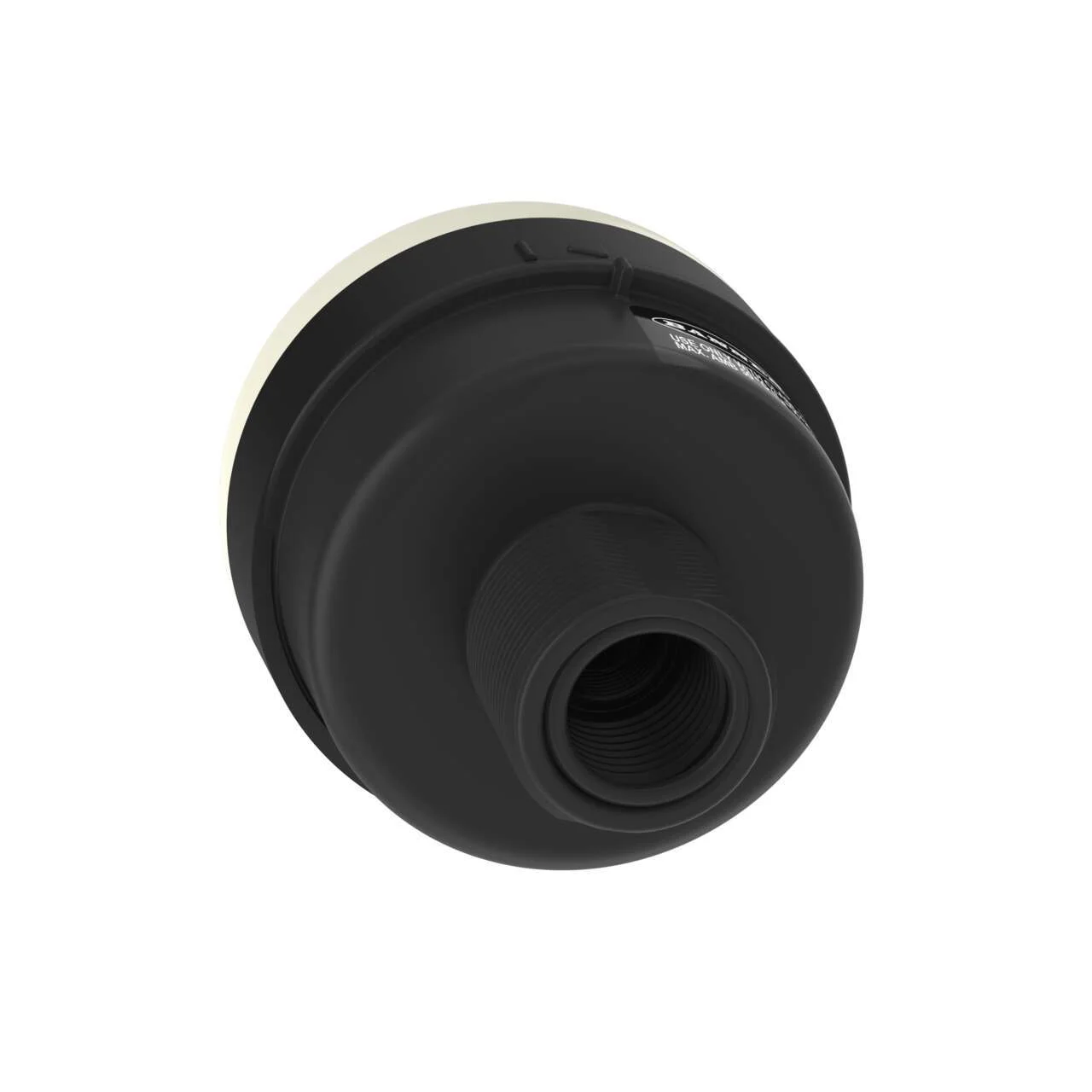

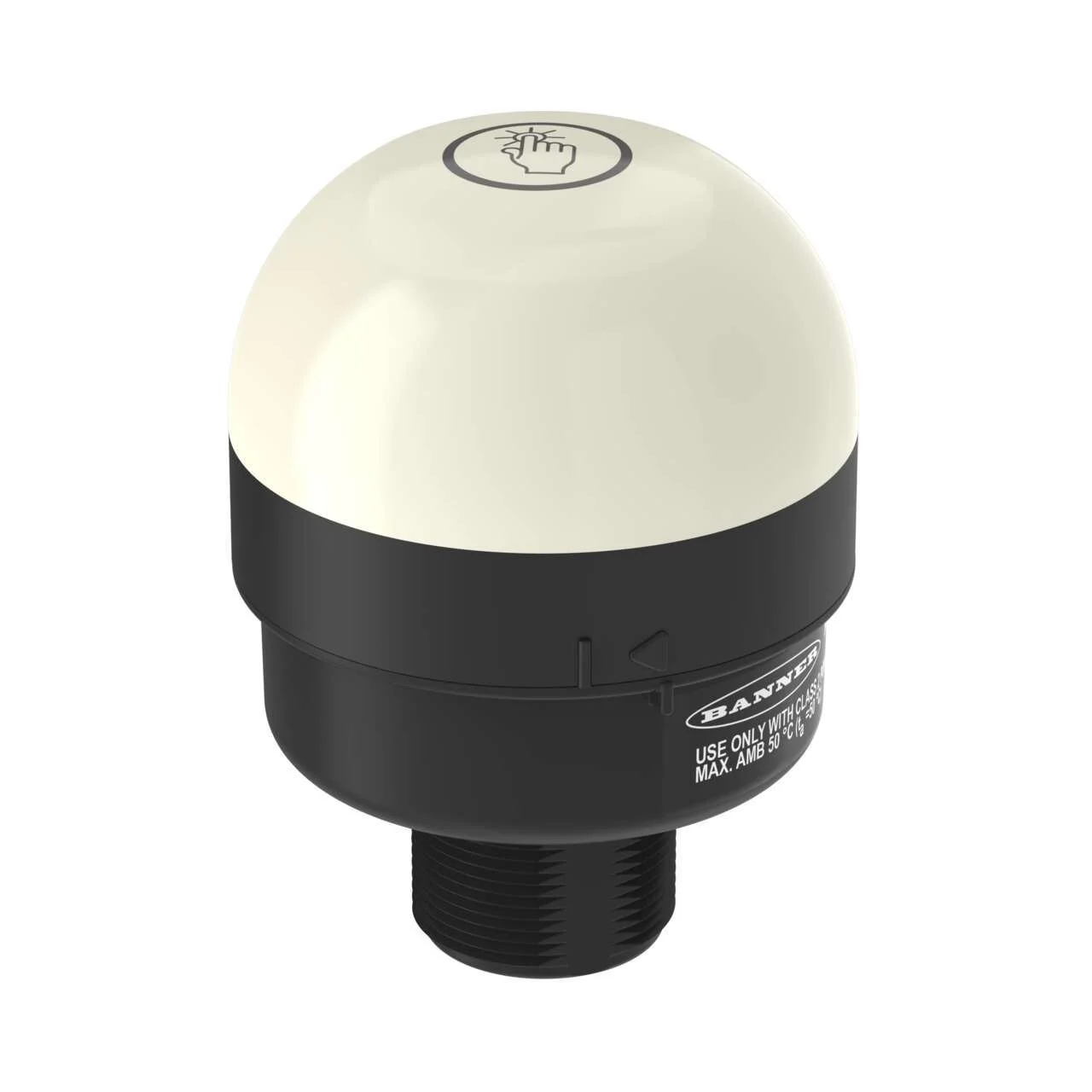

Banner Engineering K70DXN9T2GRYBX-B NB
K70 Wireless Touch Sensor, 900 MHz, Black Housing: 4-Color Indicator
C-Cell Battery
Battery Not Included
Environmental Rating: IP65
Colors: Green Red Yellow Blu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K70 Wireless Touch Sensor, 900 MHz, Black Housing: 4-Color Indicator
C-Cell Battery
Battery Not Included
Environmental Rating: IP65
Colors: Green Red Yellow Blue
Specification
| Power | Battery |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Ships With Battery | No |
| Display | No |
| Supply Voltage | 3.6 V dc |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number Of Colors | 4 |
| Product Size (Mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Flashing Only |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Color Option 4 | Blue |
| Operation | Normally Open |
| Output Type | Communication Protocol |
| Input Type | Communication Protocol |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 180 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 70.0 x 95.5 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Primary Housing Color | Black |
| Button Operation | Momentary and Latching |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | Yes |
| Wireless Radio Frequency | 900 MHz |
| U S B | No |
| Cert: Korea | Yes |
| Wireless Network | Node |
