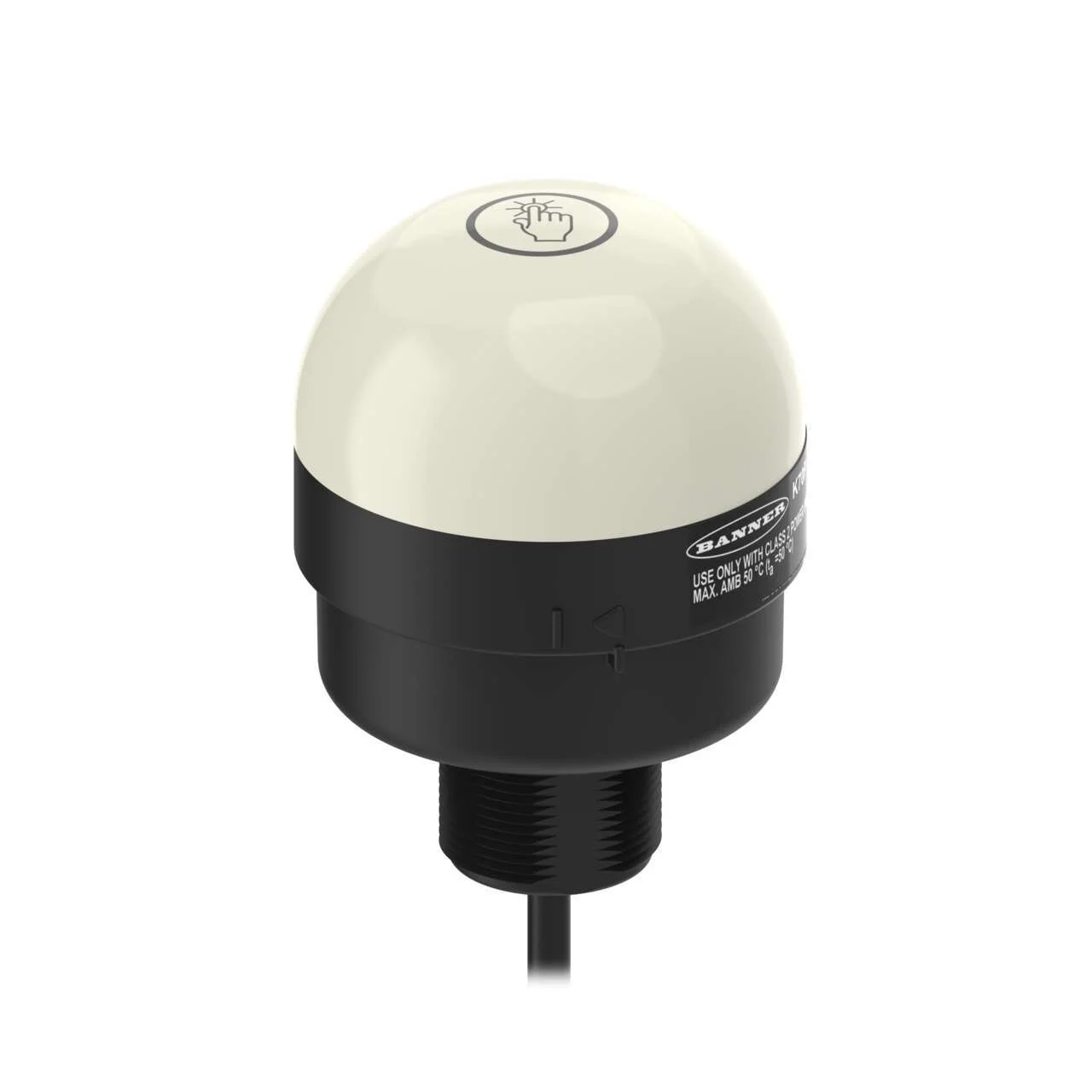

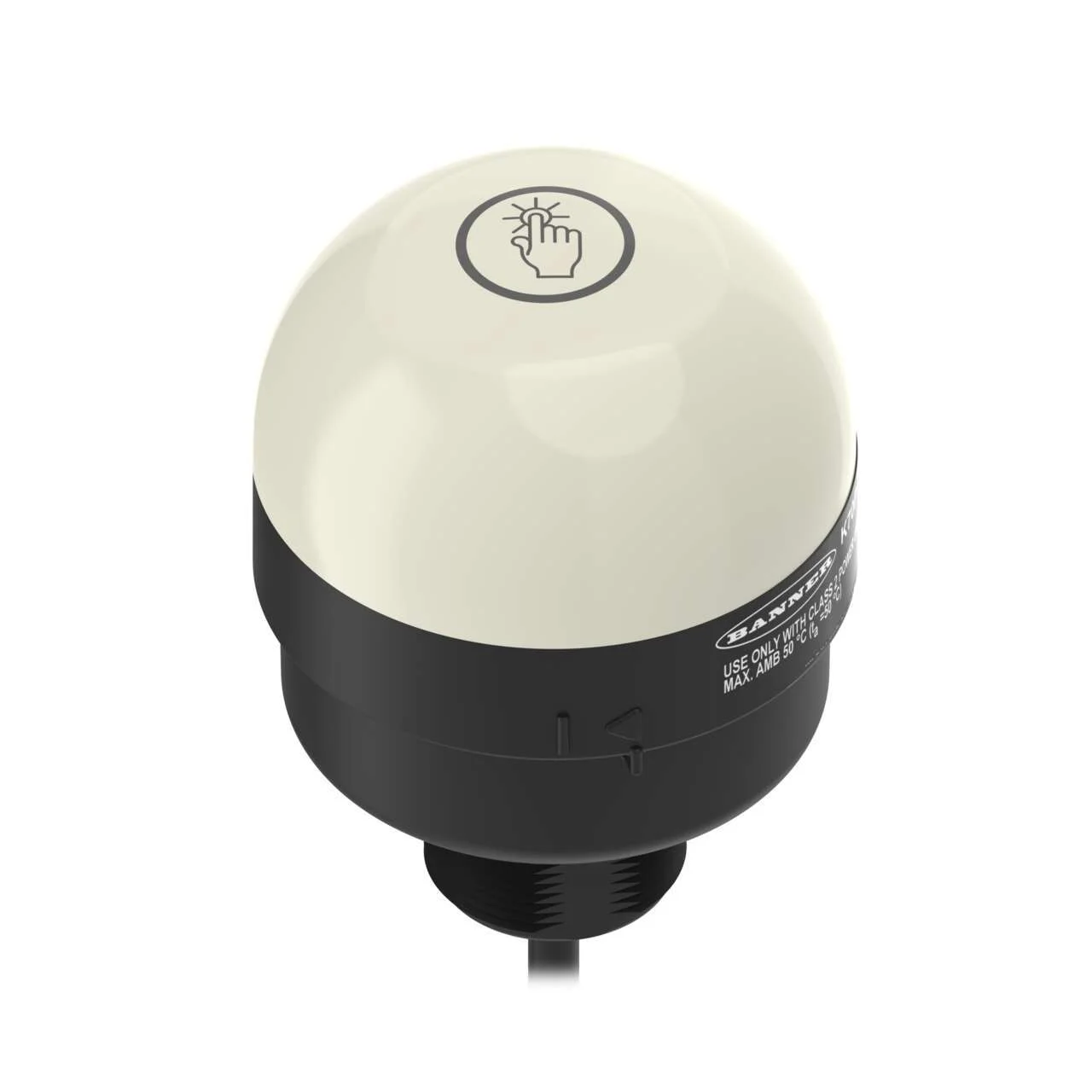

Banner Engineering K70DXN2T2GRY
K70 Wireless Touch Sensor Gen 2, 2.4 GHz, Black Housing: 3-Color Indicator
Voltage: 12-30 V dc; Environmental Rating: IP65
Colors: Green Red Yellow
2 m (6.5 ft)…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K70 Wireless Touch Sensor Gen 2, 2.4 GHz, Black Housing: 3-Color Indicator
Voltage: 12-30 V dc; Environmental Rating: IP65
Colors: Green Red Yellow
2 m (6.5 ft) PVC Cable
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP65 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | INACTIVE |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 45.0 |
| Color 1 Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Lumens Color 3 | 13.0 |
| Color 3 Wavelength/Color Temp/Coordinates | 590 nm |
| Max Current Color (Ma) | 260 |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open |
| Output Type | Communication Protocol |
| Input Type | Communication Protocol |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 180 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 70.0 x 95.5 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| U S B | No |
| Wireless Network | Node |
