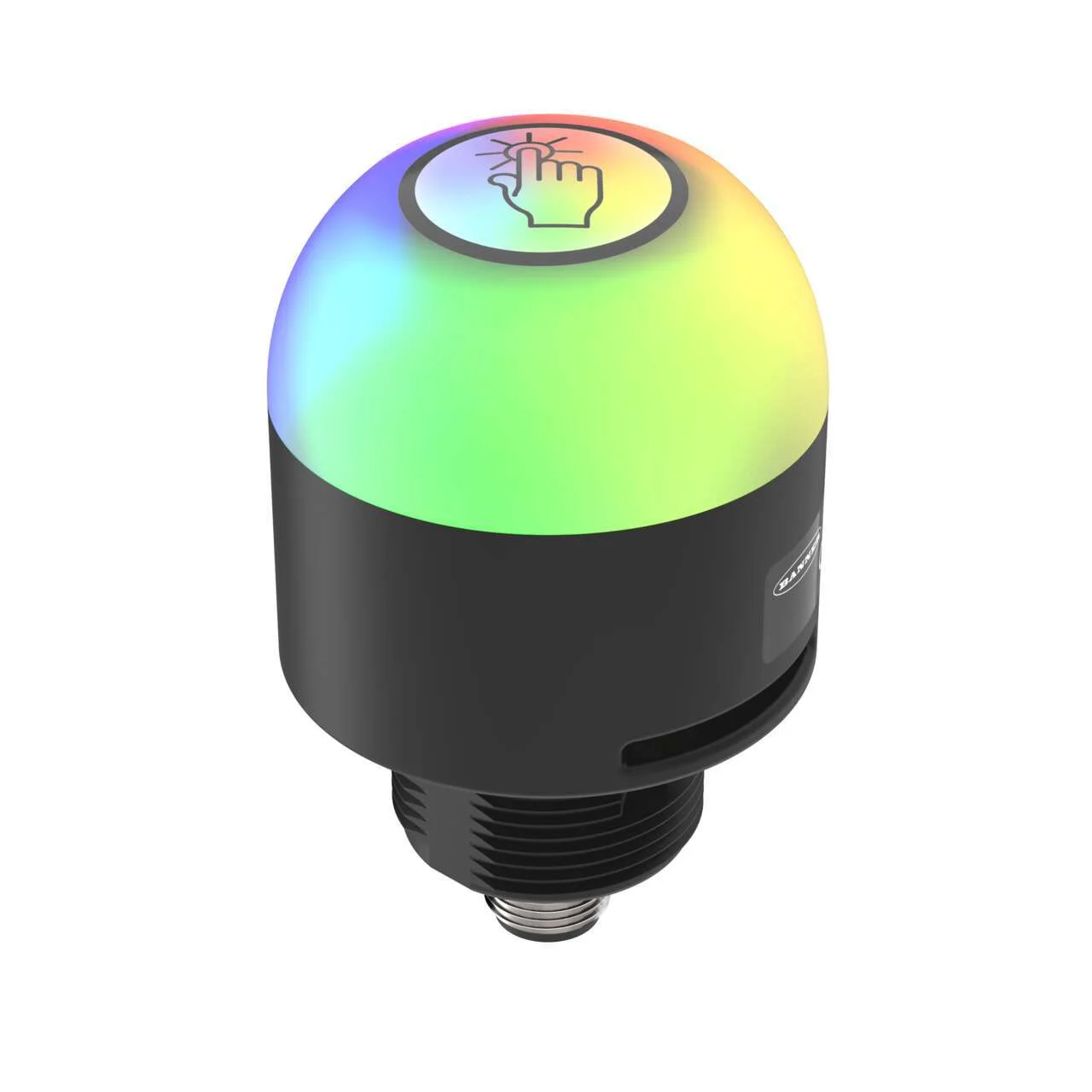

Banner Engineering K50PTKAQ
K50 Pro Touch with IO-Link Series: RGB Touch Sensor with Audible
18-30 V dc; Polycarbonate; IP67, IP69K
Multicolor
4-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K50 Pro Touch with IO-Link Series: RGB Touch Sensor with Audible
18-30 V dc; Polycarbonate; IP67, IP69K
Multicolor
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65, IP67 |
| Display | No |
| Supply Voltage | 18-30 V dc |
| Lighting Device Type | Touch Button |
| Discrete | No |
| Programmable | Yes |
| Item Status | RELEASED |
| Housing Style | Dome |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number Of Colors | Programmable |
| Product Size (Mm) | 50 |
| Vibration Feedback | No |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGB |
| Animation Option 1 | Programmable |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 120 |
| Dimming Option | Programmable |
| Pick To Light Function | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Operation | Programmable |
| Audible Alarm Type | Programmable |
| Output Type | Communication Protocol |
| Input Type | Communication Protocol |
| Max Audible Intensity (Db At 1M) | 97 |
| Min Audible Intensity (Db At 1M) | 94 |
| I/O Block Compatible | Yes |
| Audible Operating Frequency (Khz) | 2.9 |
| Max Output Response Time (Ms) | 300 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 80.6 |
| Environmental Rating | IP65; IP67 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Programmable |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Encapsulated | Yes |
| Feature: Hazardous Area | No |
| Feature: Audible | Yes |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | Yes |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
