Banner Engineering K50PSAF1000KQ

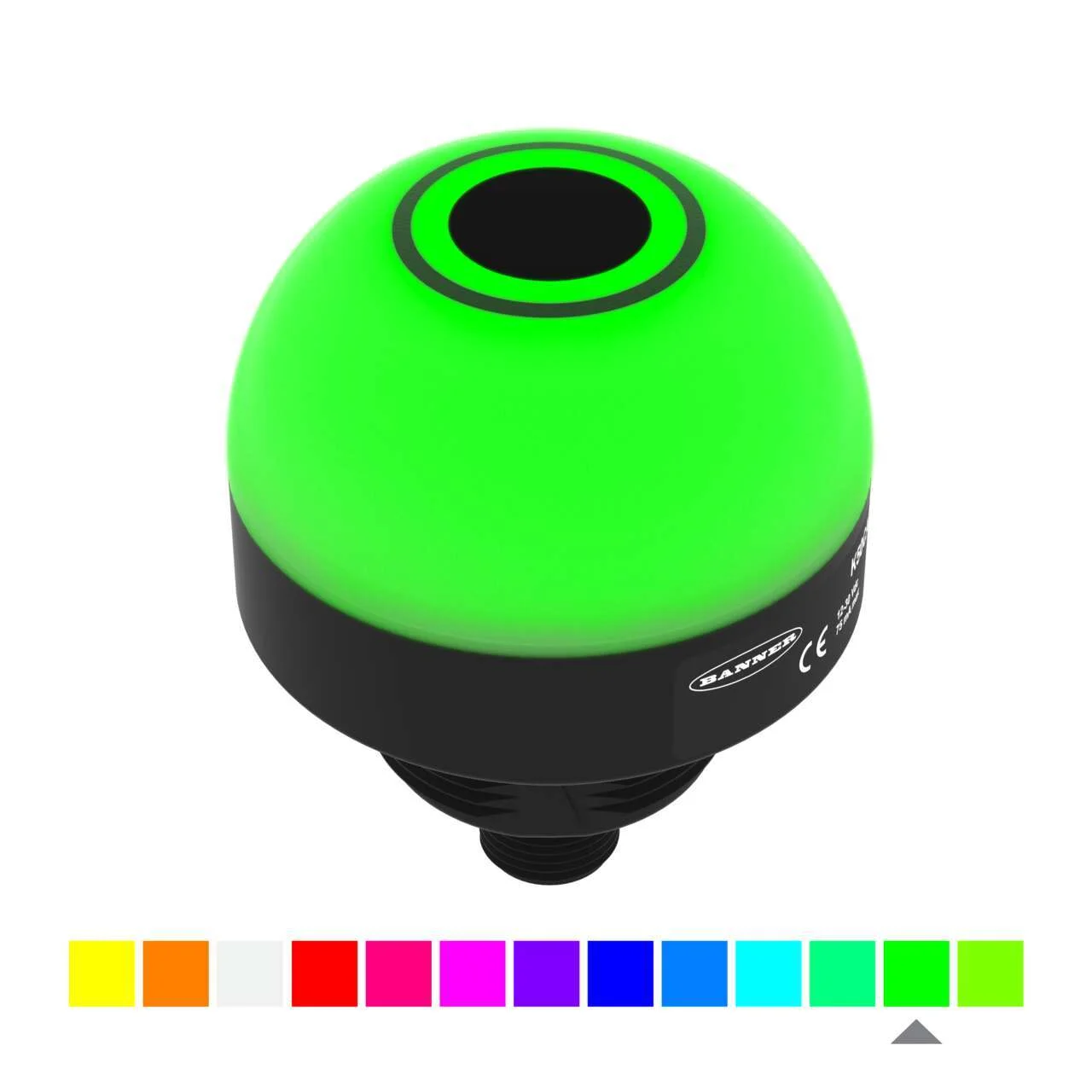

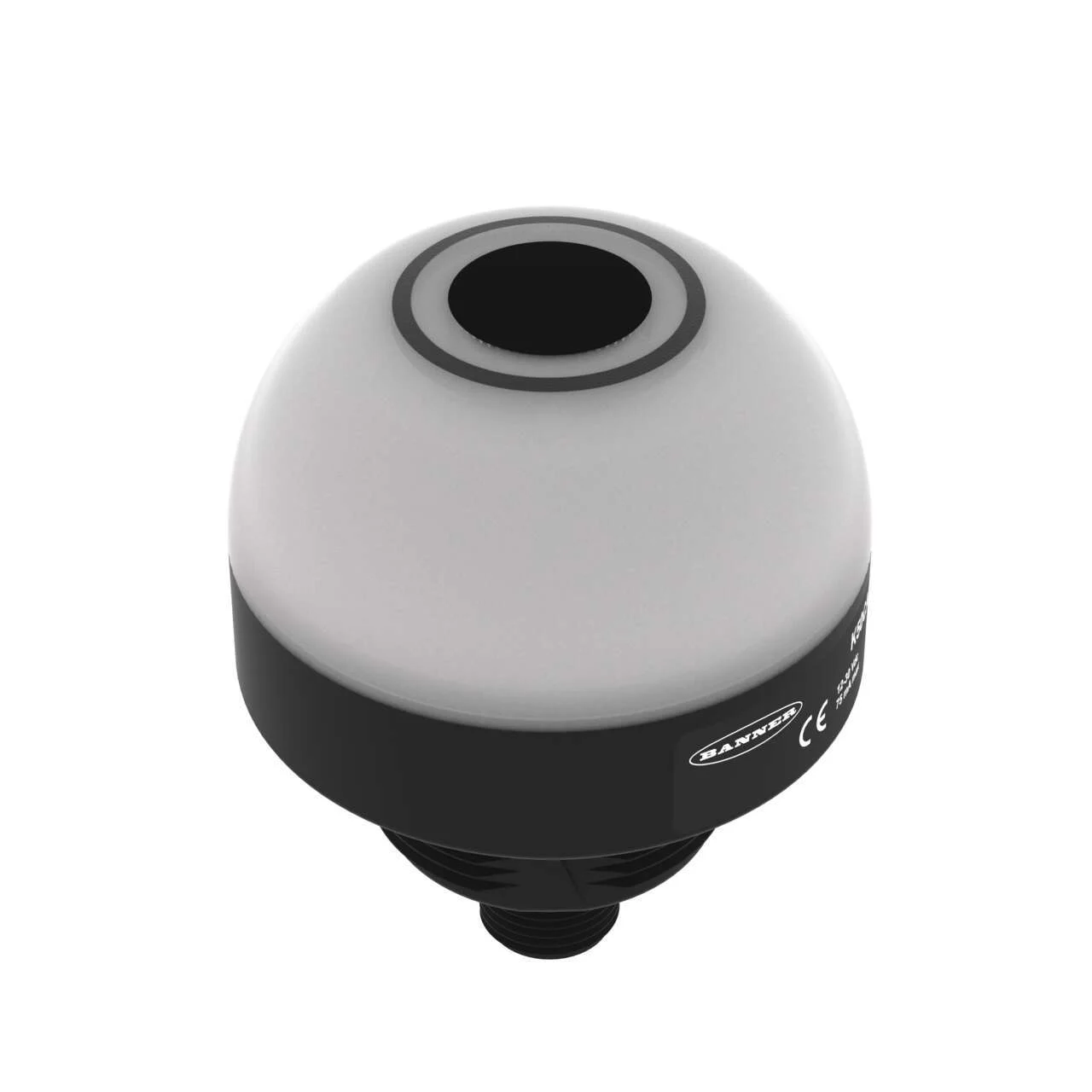

K50 Pro: IO-Link Adjustable-Field Sensor
18-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: IO-Link; Colors: Multicolor
4-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K50 Pro: IO-Link Adjustable-Field Sensor
18-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: IO-Link; Colors: Multicolor
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP66, IP67, IP69K |
| Display | No |
| Supply Voltage | 18-30 V dc |
| Lighting Device Type | Touchless Button |
| Discrete | No |
| Programmable | Yes |
| Item Status | RELEASED |
| Housing Style | Dome |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | Programmable |
| Product Size (Mm) | 50 |
| Vibration Feedback | No |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGB |
| Animation Option 1 | IO-Link Controlled |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 220 |
| Dimming Option | IO-Link Controlled |
| Pick To Light Function | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Operation | Programmable |
| Output Type | Bipolar (NPN & PNP) |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | Yes |
| Max Input Response Time (Ms) | 250 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 66.0 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Programmable |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Encapsulated | No |
| Feature: Hazardous Area | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | Yes |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 07/03/2025 |
