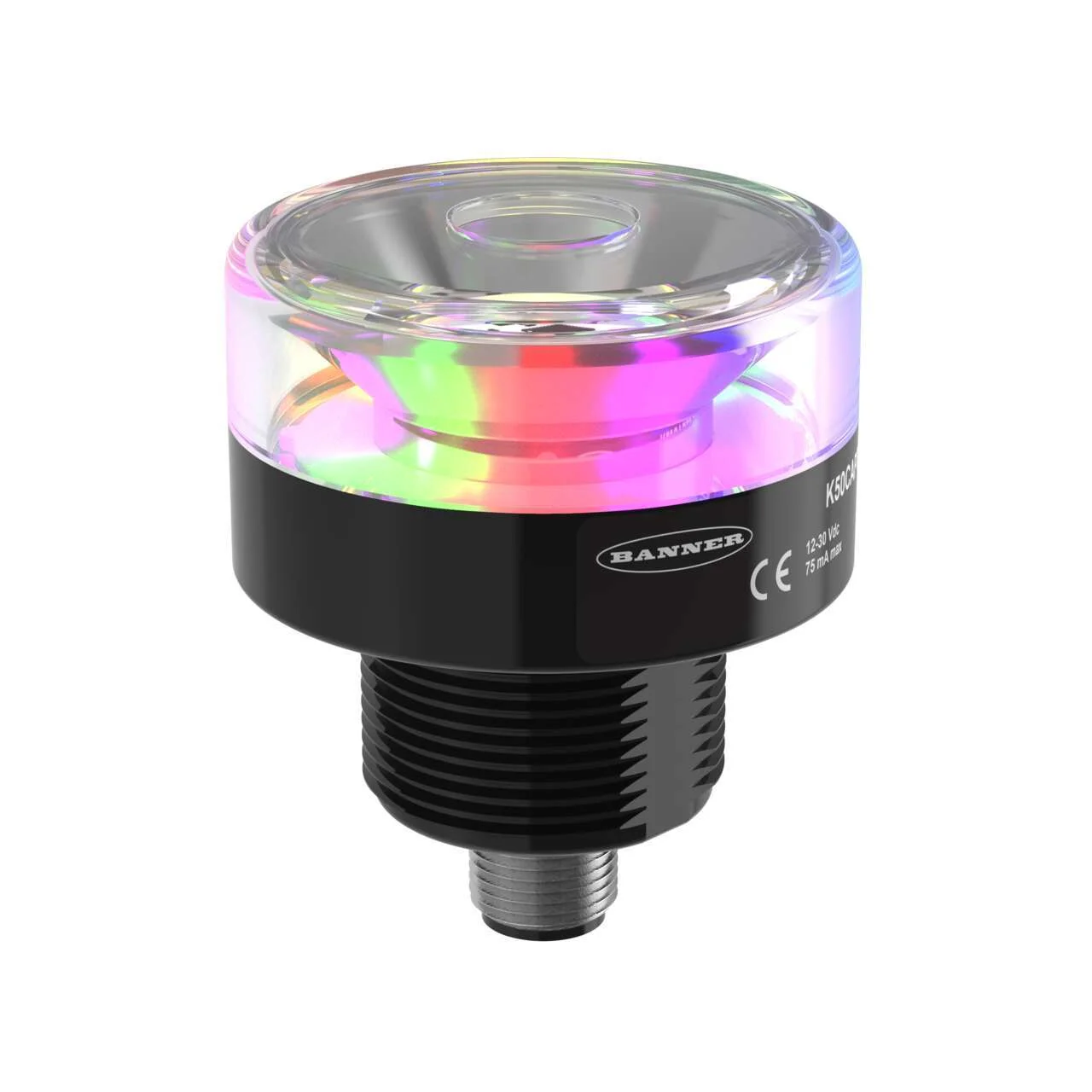

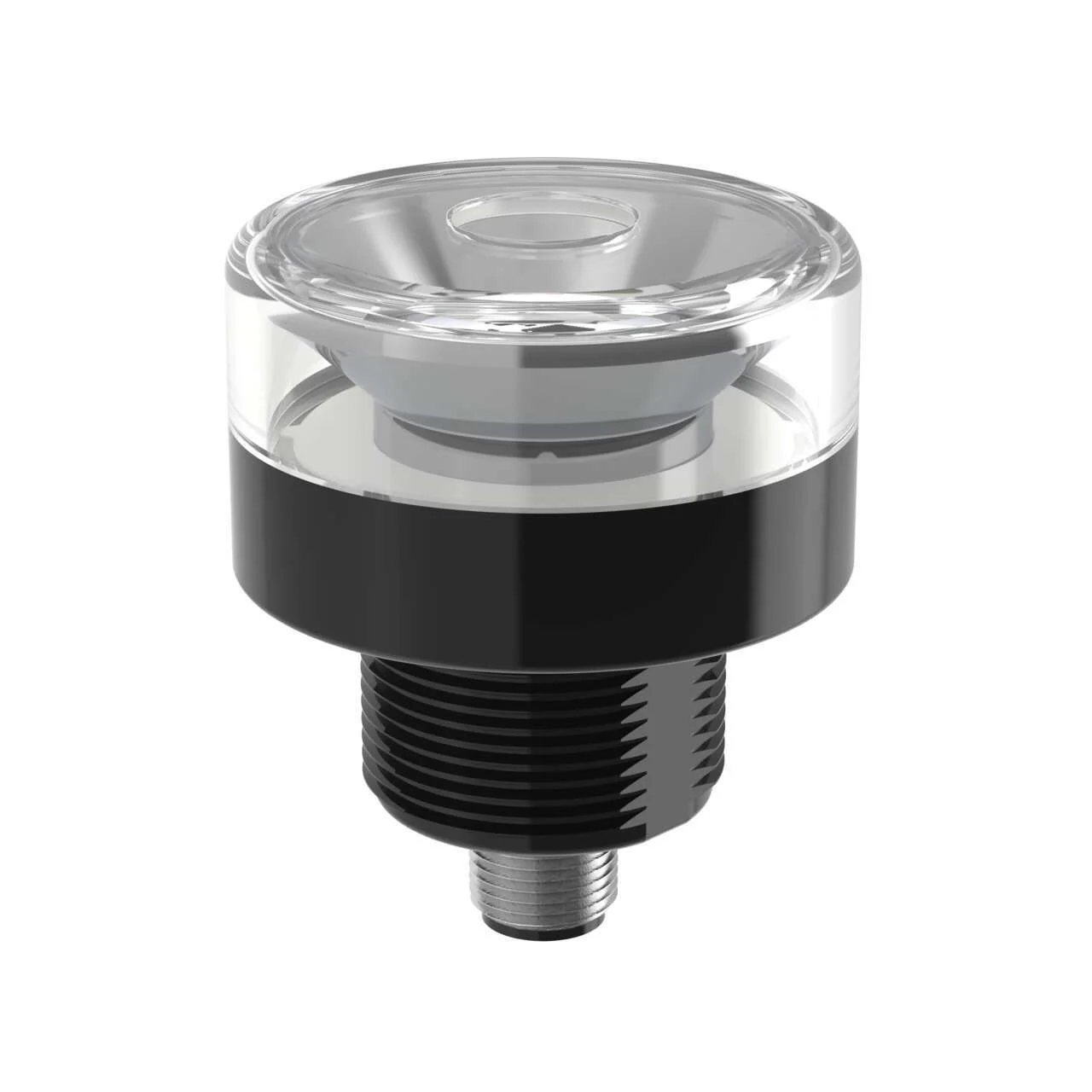

Banner Engineering K50PBLRGB7Q
K50 Pro Series: Beacon Light; 7-color RGB Indicator
10-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: Bimodal; Colors: Multicolor
5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K50 Pro Series: Beacon Light; 7-color RGB Indicator
10-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: Bimodal; Colors: Multicolor
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP67, IP69K |
| Display | No |
| Nema / Ul Type Rating | UL 4X, 13 |
| Supply Voltage | 10-30 V dc |
| Lighting Device Type | Indicator |
| Discrete | Yes |
| Programmable | Yes |
| Item Status | RELEASED |
| Housing Style | Beacon |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 14 |
| Product Size (Mm) | 50 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Animation Option 1 | Programmable |
| Connection | Integral QD |
| Lumens Color 1 | 6.8 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 625 nm |
| Color Option 2 | Green |
| Animation Option 2 | Programmable |
| Lumens Color 2 | 15.3 |
| Color 2 Wavelength/Color Temp/Coordinates | 530 nm |
| Color Option 3 | Blue |
| Animation Option 3 | Programmable |
| Lumens Color 3 | 3.3 |
| Color 3 Wavelength/Color Temp/Coordinates | 470 nm |
| Color Option 4 | Yellow |
| Animation Option 4 | Programmable |
| Lumens Color 4 | 17.2 |
| Color 4 Wavelength/Color Temp/Coordinates | 0.469, 0.466 |
| Color Option 5 | White |
| Animation Option 5 | Programmable |
| Lumens Color 5 | 20.9 |
| Color 5 Wavelength/Color Temp/Coordinates | 5950K |
| Color Option 6 | Magenta |
| Animation Option 6 | Programmable |
| Lumens Color 6 | 8.6 |
| Color 6 Wavelength/Color Temp/Coordinates | 0.399, 0.189 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 17.0 |
| Color 7 Wavelength/Color Temp/Coordinates | 0.159, 0.337 |
| Max Current Color (Ma) | 220 |
| Dimming Option | Programmable |
| Wire Selectable Function | Programmable |
| Number Of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | Yes |
| Max Input Response Time (Ms) | 250 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 59.8 |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Feature: Encapsulated | No |
| Feature: Hazardous Area | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | No |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
