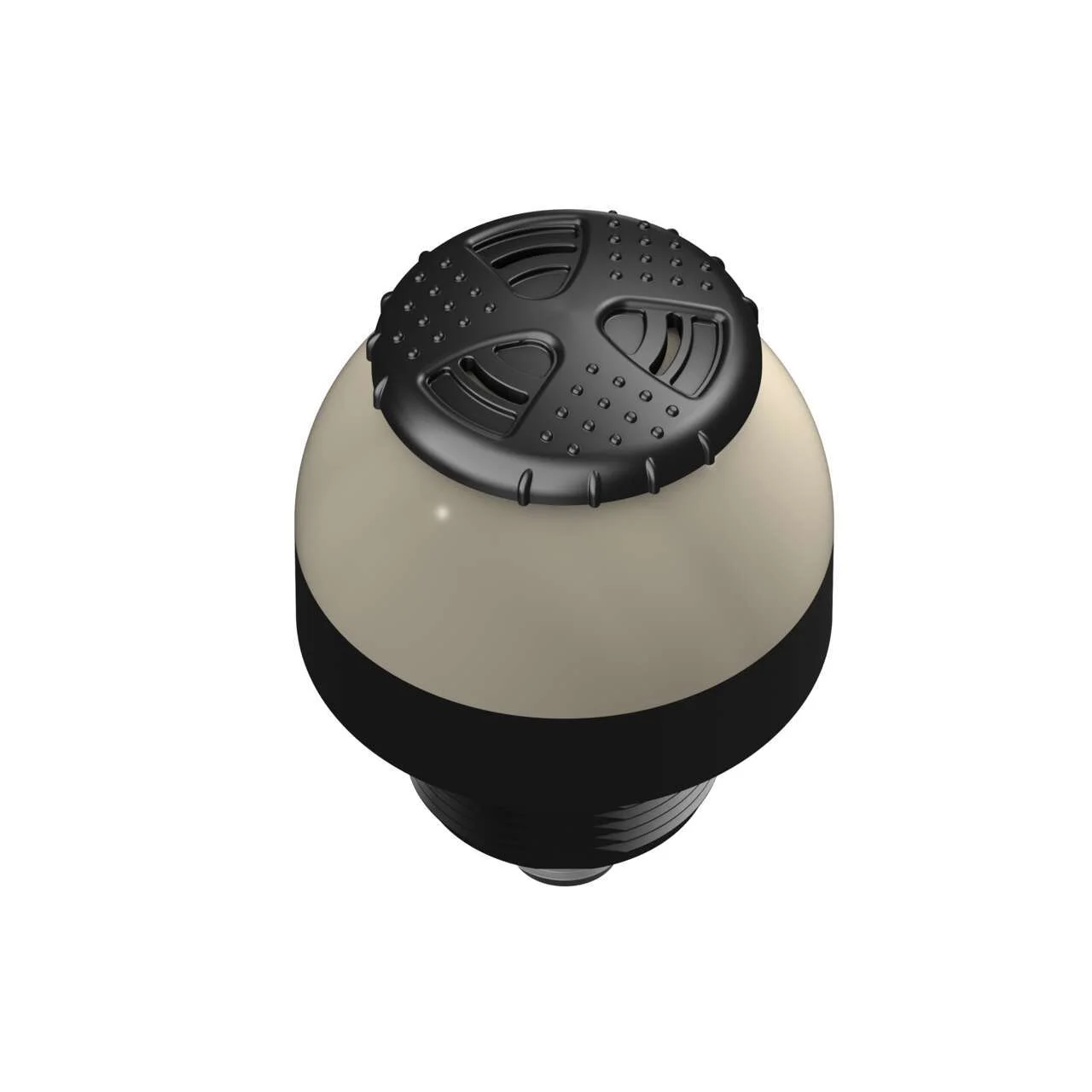

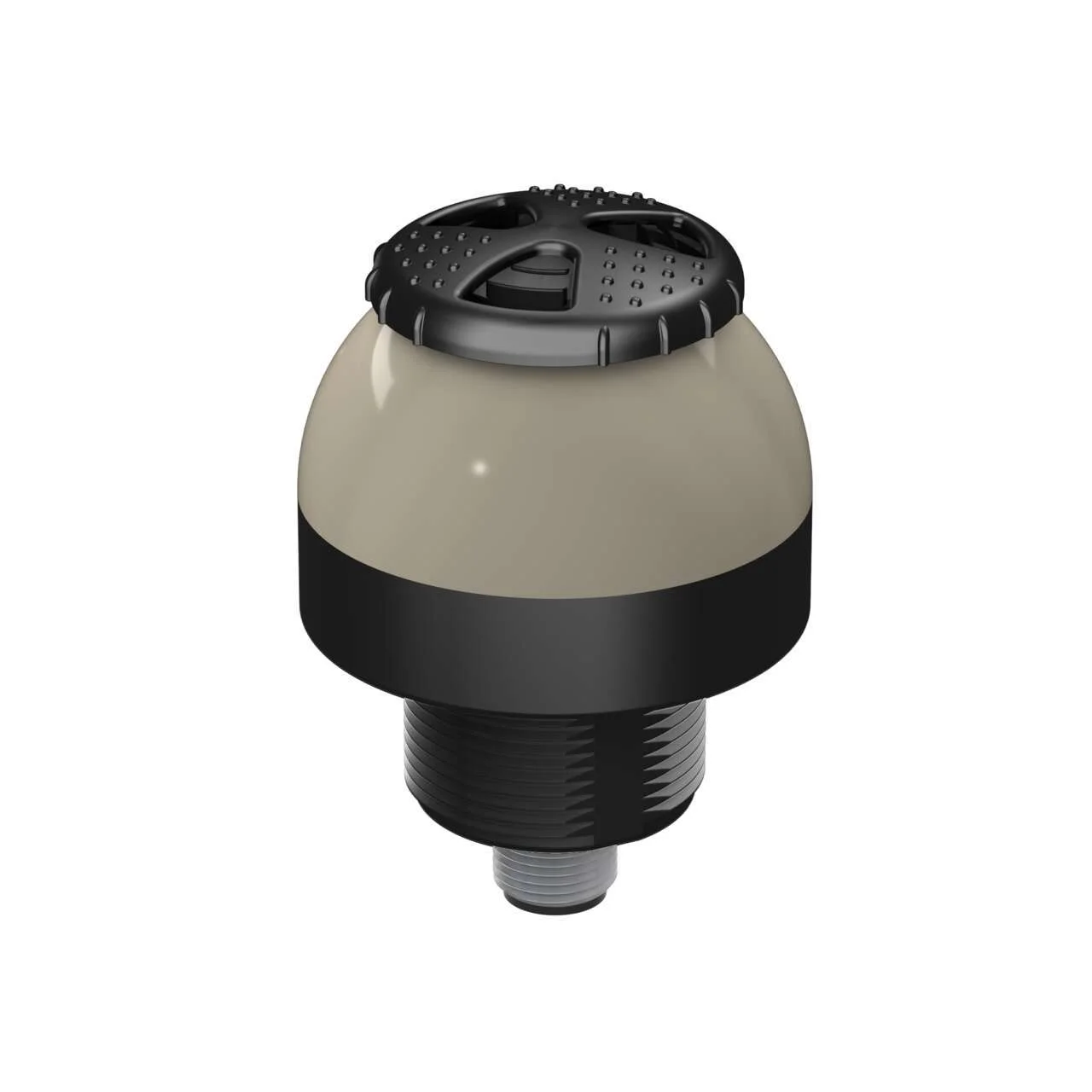

Banner Engineering K50LRXALSXPQ
K50 Series EZ-LIGHT: 1-Color Sealed Loud Audible Indicator
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67
Tone: Loud; Input: PNP; Colors: Red
5-pin M12 Integ…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K50 Series EZ-LIGHT: 1-Color Sealed Loud Audible Indicator
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67
Tone: Loud; Input: PNP; Colors: Red
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP67 |
| Display | No |
| Nema / Ul Type Rating | NEMA and UL 4X, 13 |
| Supply Voltage | 12-30 V dc |
| Lighting Device Type | Indicator |
| Discrete | Yes |
| Programmable | No |
| Item Status | RELEASED |
| Housing Style | Dome |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 35 |
| Number Of Input Pins/Conductors | 5 |
| Audible Alarm Type | Continuous |
| Input Type | PNP |
| Max Audible Intensity (Db At 1M) | 94 |
| Min Audible Intensity (Db At 1M) | 70 |
| I/O Block Compatible | No |
| Audible Operating Frequency (Khz) | 2.9 |
| Max Input Response Time (Ms) | 1 |
| Max Current Audible Alarm (Ma) | 35 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 73.0 |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -20 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Secondary Material | Thermoplastic |
| Feature: Washdown Rated | No |
| Feature: Encapsulated | Yes |
| Feature: Hazardous Area | No |
| Feature: Audible | Yes |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | No |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
