Banner Engineering K50LDGA120

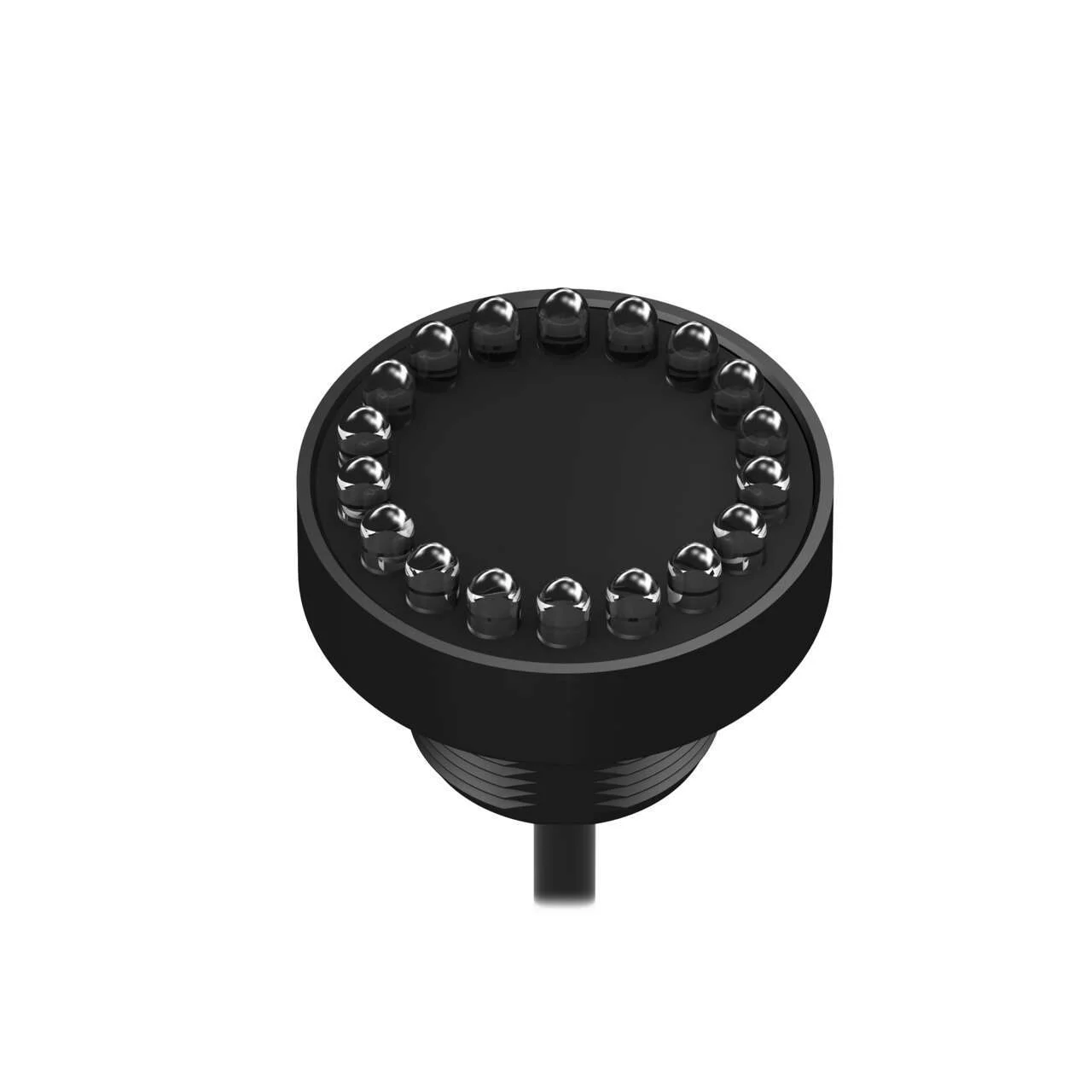

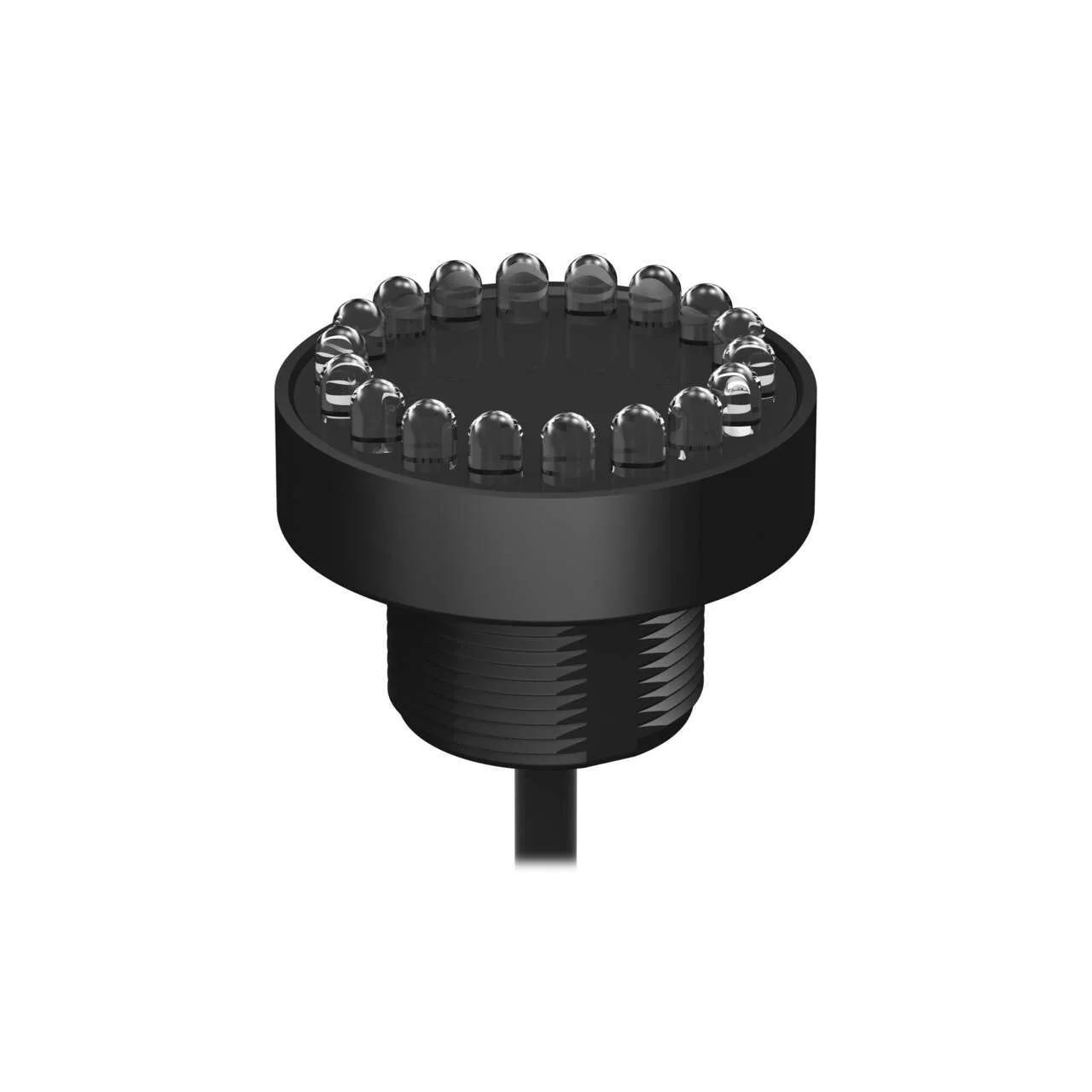

K50 Series EZ-LIGHT Daylight Visible 1-Color Indicator
Voltage: 85-130 V ac; Housing: Polycarbonate; IP67
Colors: Green; 2 m (6.5 ft) Integral Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K50 Series EZ-LIGHT Daylight Visible 1-Color Indicator
Voltage: 85-130 V ac; Housing: Polycarbonate; IP67
Colors: Green; 2 m (6.5 ft) Integral Cable
Specification
| Power | AC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Display | No |
| Supply Voltage | 85-130 V ac |
| Lighting Device Type | Indicator |
| Discrete | Yes |
| Programmable | No |
| Item Status | RELEASED |
| Housing Style | Beacon-No Window |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 14.0 |
| Color 1 Wavelength/Color Temp/Coordinates | 525 nm |
| Max Current Color (Ma) | 16 |
| Number Of Input Pins/Conductors | 2 |
| Input Type | AC |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 0.5 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 38.5 |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Primary Housing Color | Black |
| Feature: Washdown Rated | No |
| Feature: Encapsulated | No |
| Feature: Hazardous Area | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Io Link | No |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 07/03/2024 |
