Banner Engineering K30PAF1000AMGRY3Q
K30 Pro with Pro Editor: 3-Color RGB Adjustable-Field Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP65
Range: 1000 mm; Bimodal, NO, Momentary; Colors: M…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

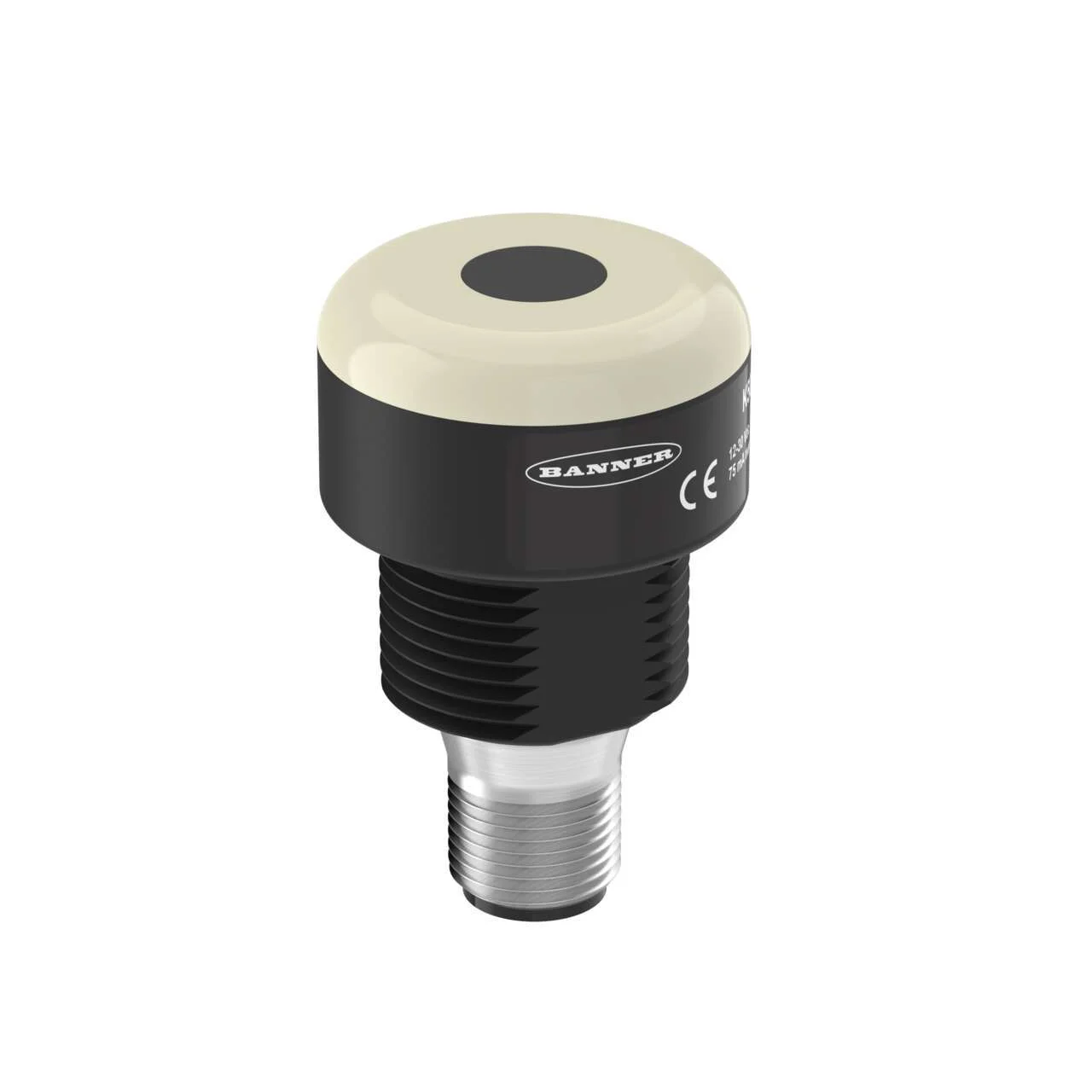

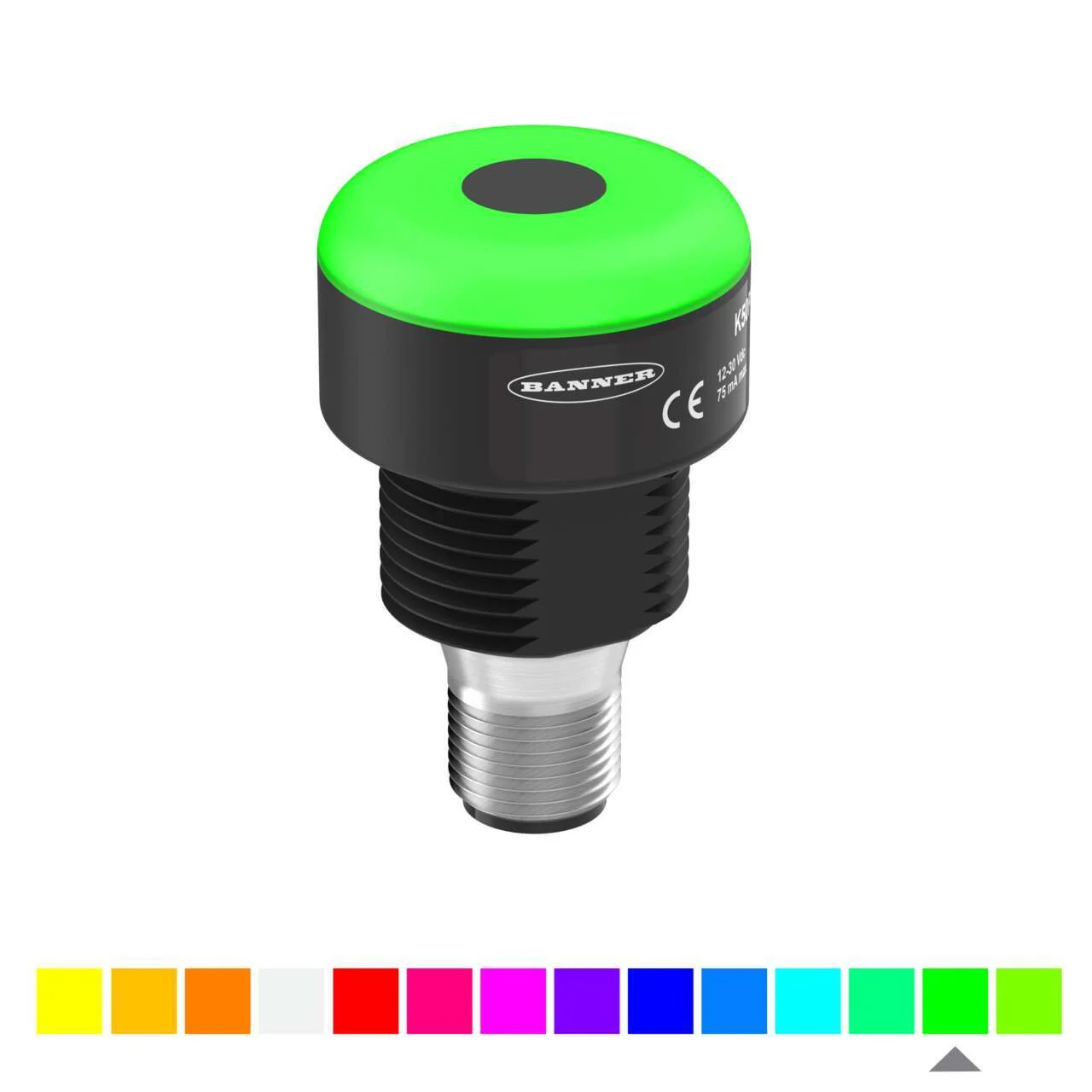

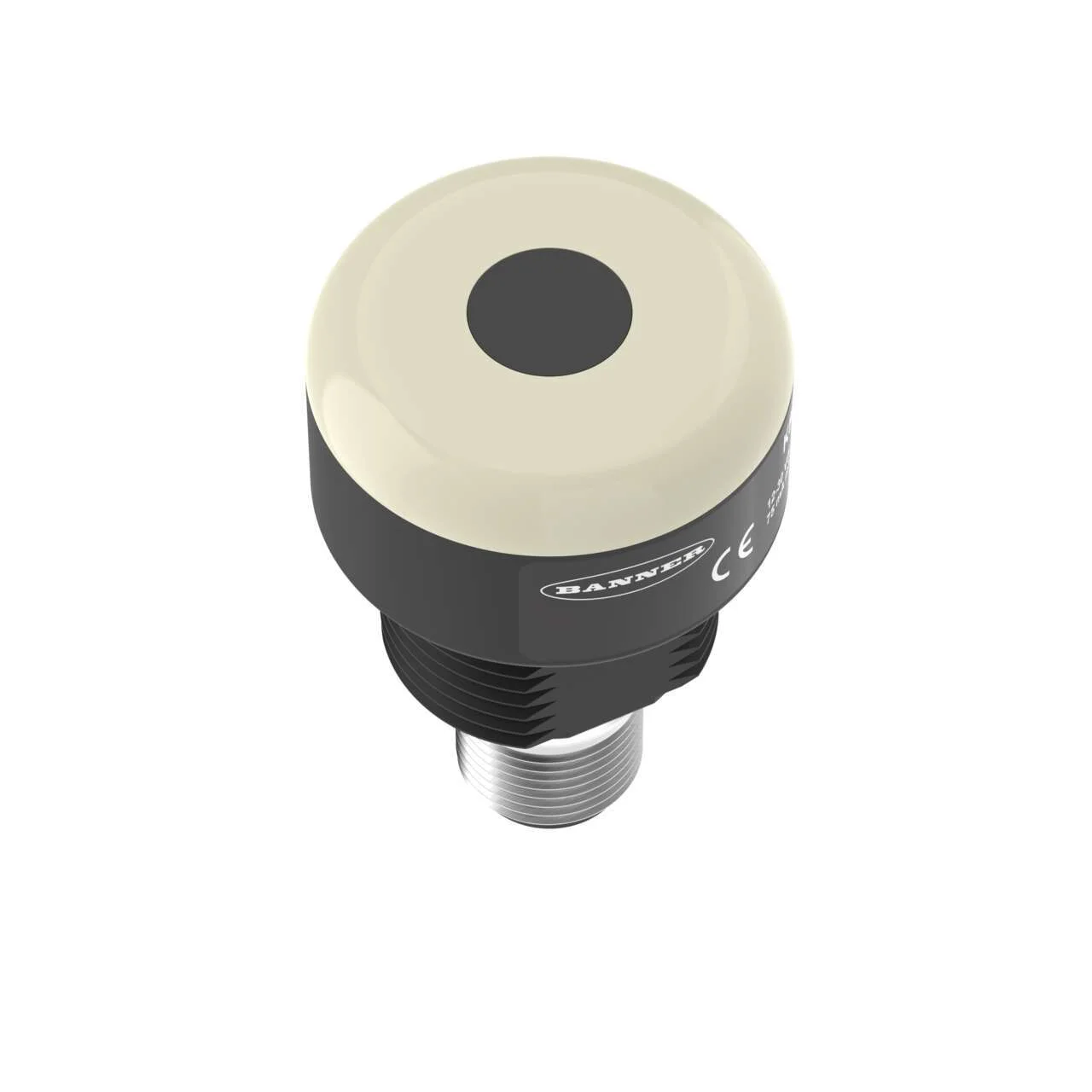

K30 Pro with Pro Editor: 3-Color RGB Adjustable-Field Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP65
Range: 1000 mm; Bimodal, NO, Momentary; Colors: Multicolor
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Display | No |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Connection | Integral QD |
| Lumens Color 1 | 5.8 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 522 nm |
| Color Option 2 | Red |
| Lumens Color 2 | 3.2 |
| Color 2 Wavelength/Color Temp/Coordinates | 620 nm |
| Color Option 3 | Yellow |
| Lumens Color 3 | 7.9 |
| Color 3 Wavelength/Color Temp/Coordinates | 576 nm |
| Max Current Color (Ma) | 150 |
| Pick To Light Function | C |
| Wire Selectable Function | Programmable |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open |
| Output Type | Bipolar (NPN & PNP) |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 40 |
| Max Output Response Time (Ms) | 120 |
| Maximum Sensing Distance (Mm) | 1000 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 30.0 x 48.0 |
| Number Of Beams | 1 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -20 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/23/2023 |
