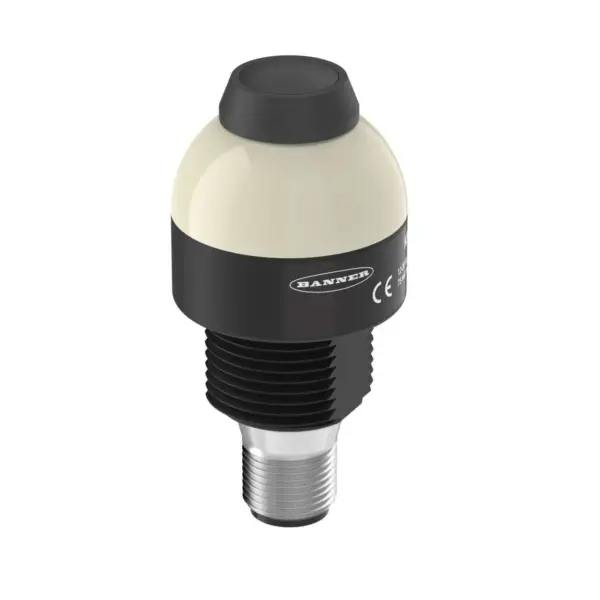

Banner Engineering K30LYXXPPB2Q

K30L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch. Part number: 25418. model: K30LYXXPPB2Q. part_number: 25418. list_price: 97 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/162557.pdf. BAN_NumberOfColors: 1. BAN_Connection: Integral QD. Custom_Group_1139_1139: Colors: Yellow. BAN_CableLength: —. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP67. Display: No. NEMA / UL Type Rating: NEMA 13. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Housing Style: Base Mount – Dome Window. Primary Housing Material: Polycarbonate. Indication: No. Illumination: No. Actuation: Yes. Activation Function: Push-Button. Mounting Thread: M22 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 1. Product Size (mm): 30. Color Technology: Standard LED. Color Option 1: Yellow. Animation Option 1: Solid On. Connection: Integral QD. Quick Disconnect Type: M12. Max Current Color (mA): 40. Number of Input Pins/Conductors: 4. Operation: Normally Open. Output Type: Dry Contact. Input Type: PNP. I/O Block Compatible: No. Max Input Response Time (ms): 1. Max Output Response Time (ms): 10. Physical Dimensions (LxWxH or DxH mm): 30.0 x 62.8. Environmental Rating: IP67. Eye Shield: No. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Button Operation: Momentary. Primary Window Material: Polycarbonate Diffused. Secondary Material: Thermoplastic. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No
