Banner Engineering K30ALBTRGHQ
K30 Series: 2-Color Touch Sensor; Latching Output
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar (NO); Colors: Red – Not Activated, Gre…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

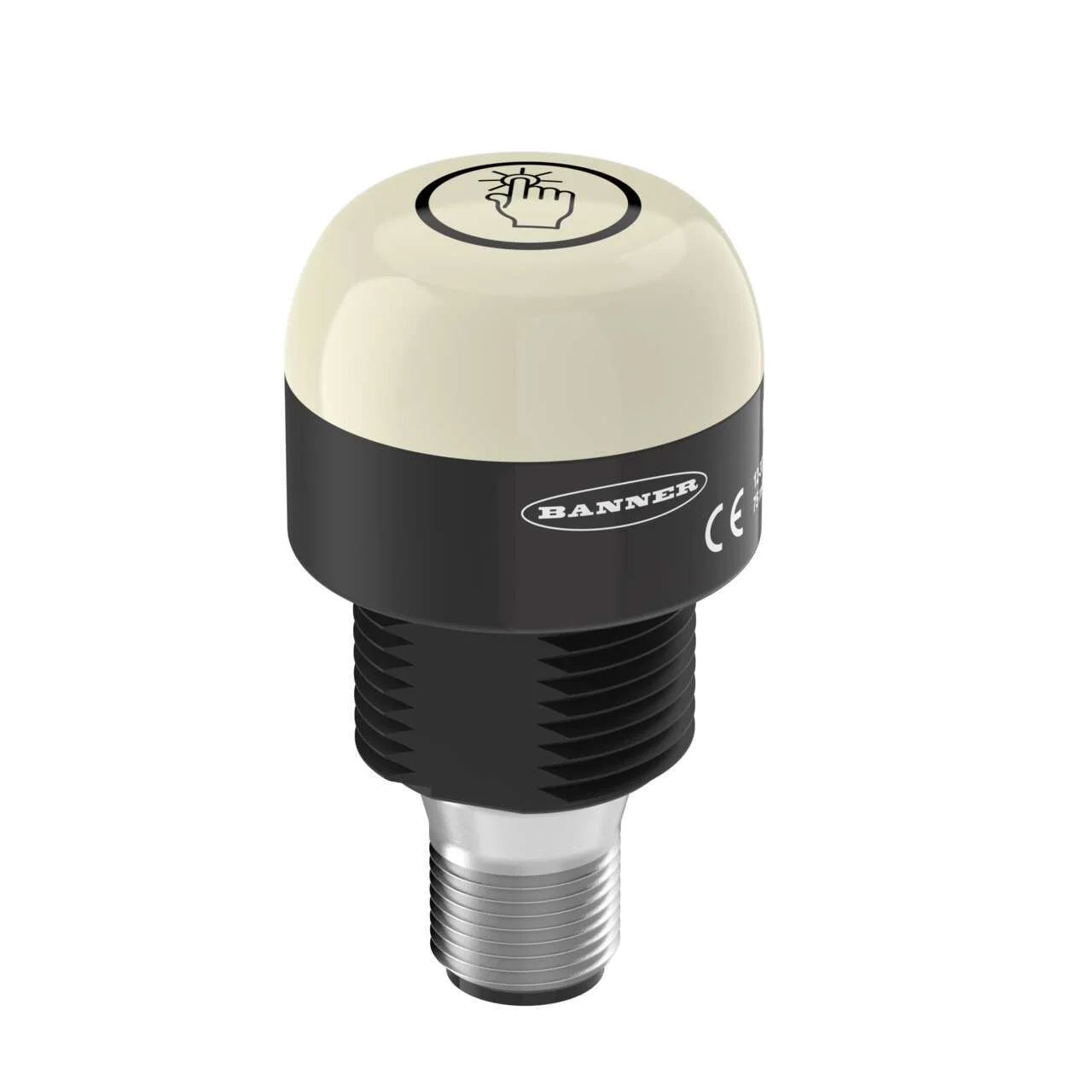

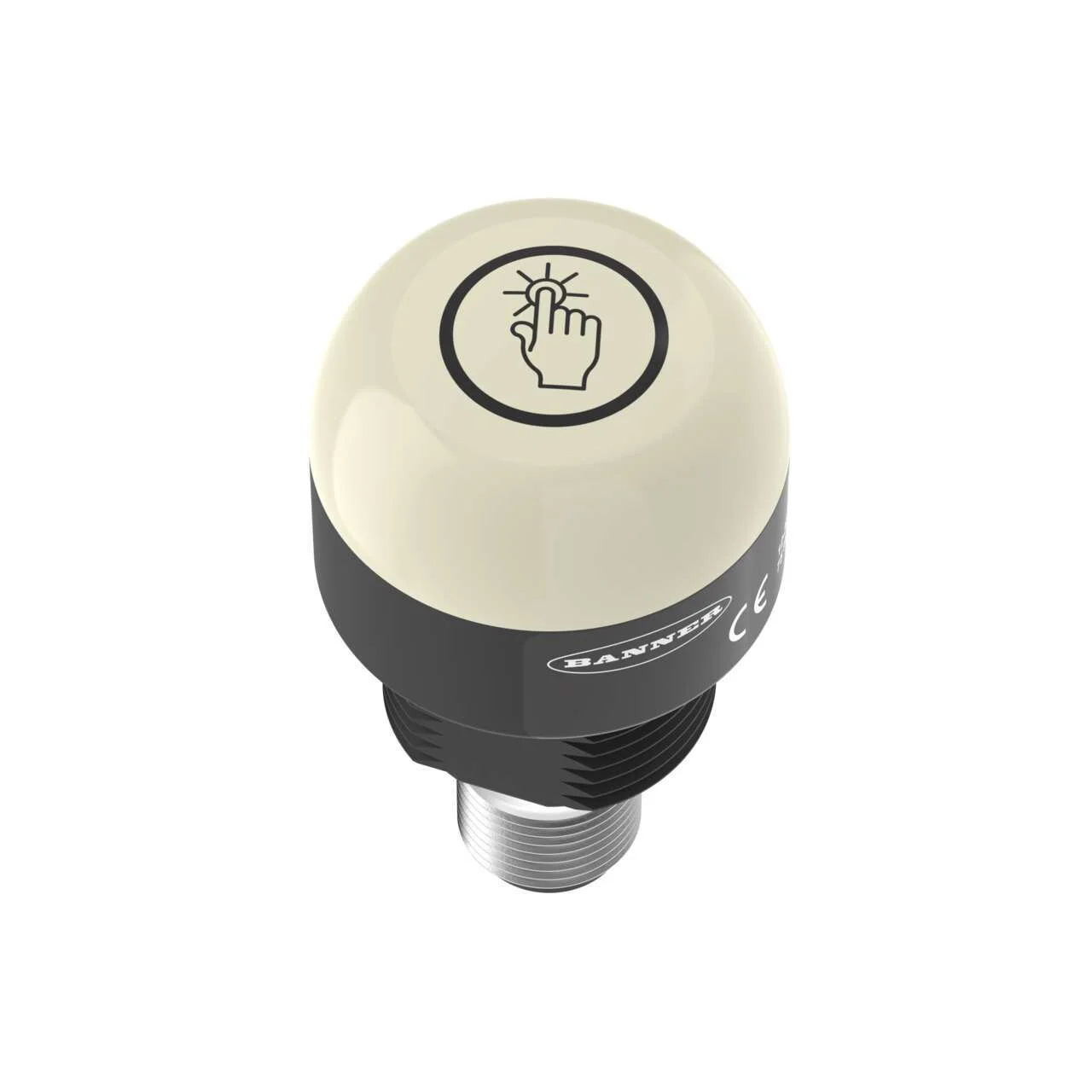

K30 Series: 2-Color Touch Sensor; Latching Output
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar (NO); Colors: Red – Not Activated, Green – Activated
M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP67, IP69K |
| Display | No |
| Nema / Ul Type Rating | NEMA 4X, 13 |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 2 |
| Product Size (Mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Color Option 2 | Green |
| Max Current Color (Ma) | 55 |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open |
| Output Type | Bipolar (NPN & PNP) |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 300 |
| Max Output Response Time (Ms) | 150 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 30.0 x 54.5 |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Latching |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
