Banner Engineering K100PDBLRGBKAQ
K100 Pro IO-Link Status Display Indicator with Audible
Status Display with IO-Link; 8 x 77 Pixels; White Display LEDs; RGB Indicator; Audible
18-30 V dc; Polyca…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

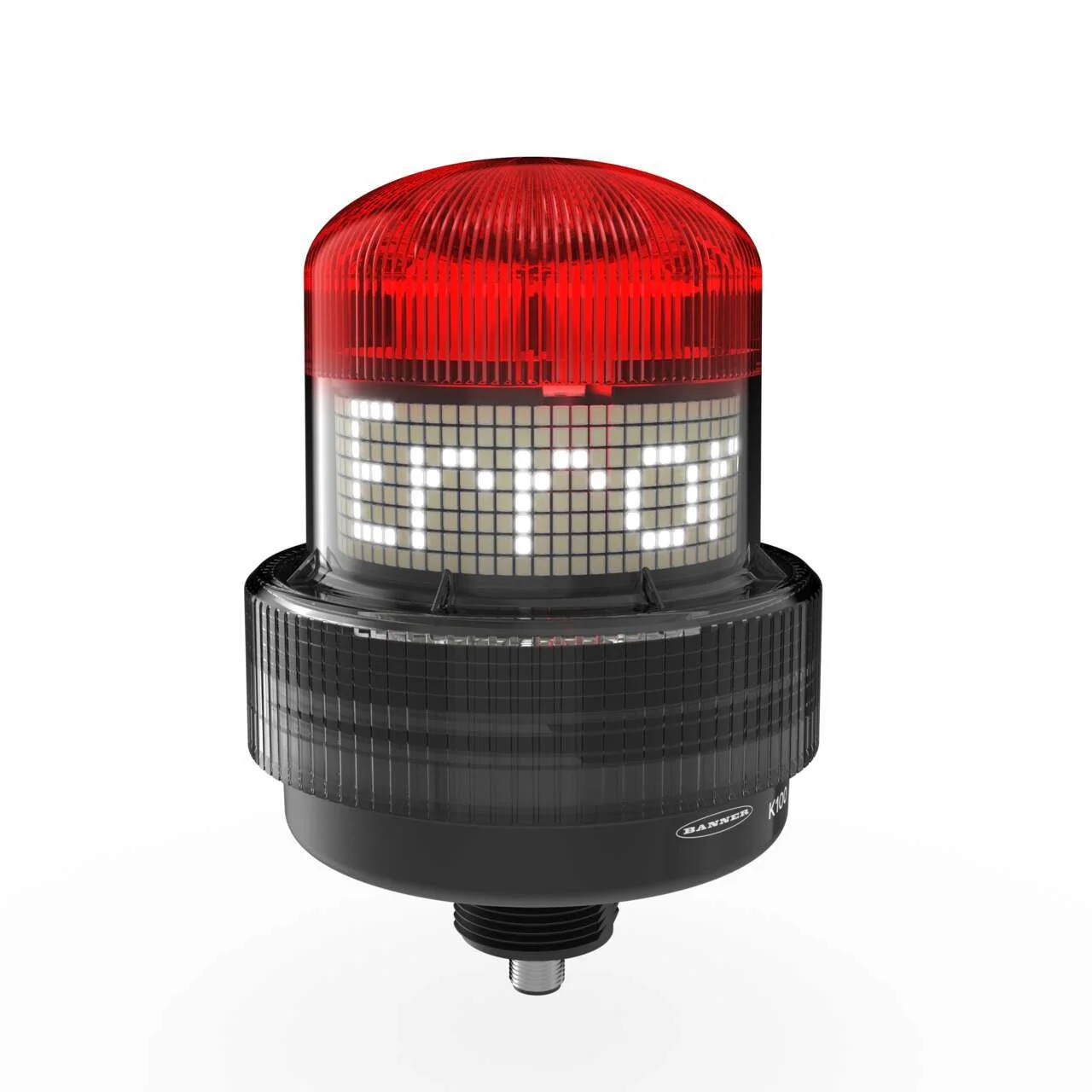

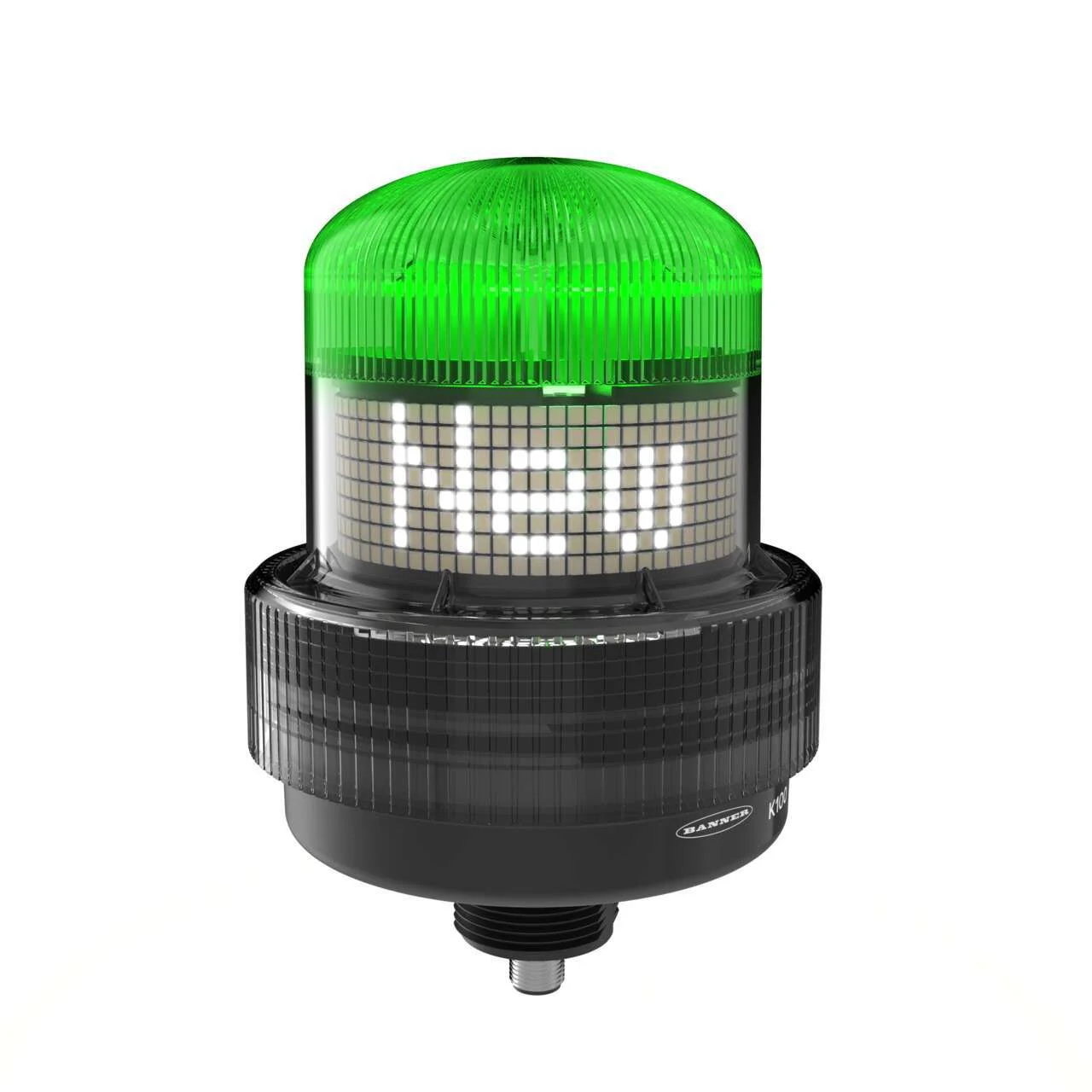

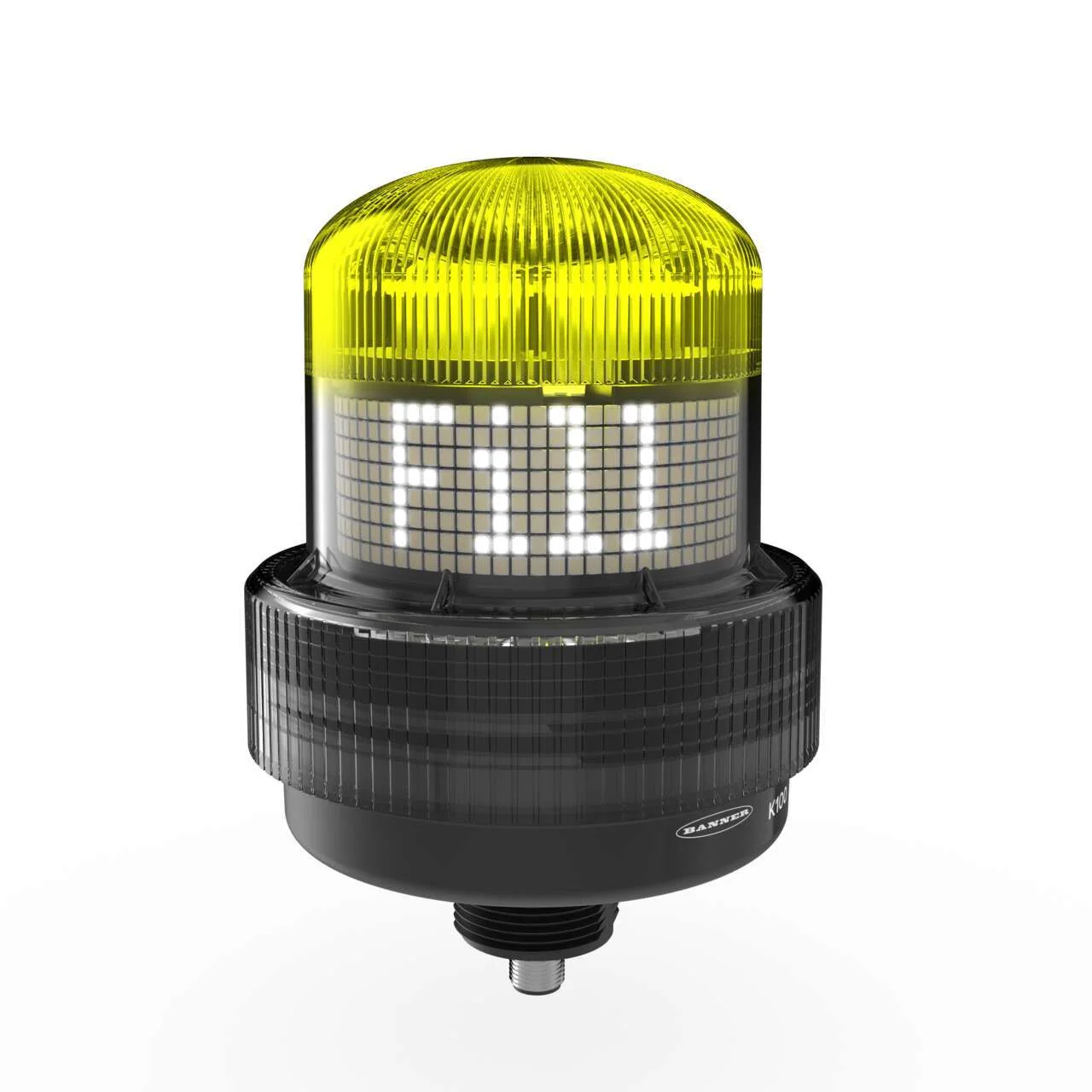

K100 Pro IO-Link Status Display Indicator with Audible
Status Display with IO-Link; 8 x 77 Pixels; White Display LEDs; RGB Indicator; Audible
18-30 V dc; Polycarbonate; IP66, IP69K
Multicolor
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Ip Rating | IP66, IP69K |
| Ships With Battery | No |
| Display | Yes |
| Supply Voltage | 18-30 V dc |
| Item Status | RELEASED |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Mounting Thread | M36 x 2.0 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 14 |
| Product Size (Mm) | 100 |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGB |
| Animation Option 1 | Programmable |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Dimming Option | Programmable |
| Wire Selectable Function | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Audible Alarm Type | Programmable |
| Array Length (Mm) | 220 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 118x118x135 |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate |
| Feature: Washdown Rated | Yes |
| Feature: Audible | Yes |
| Feature: Cascade | No |
| Multi Color Device | Single Color On – Alternating |
| Io Link | Yes |
| Modbus Rtu | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 09/18/2025 |
