Banner Engineering K100PBLNZBYR

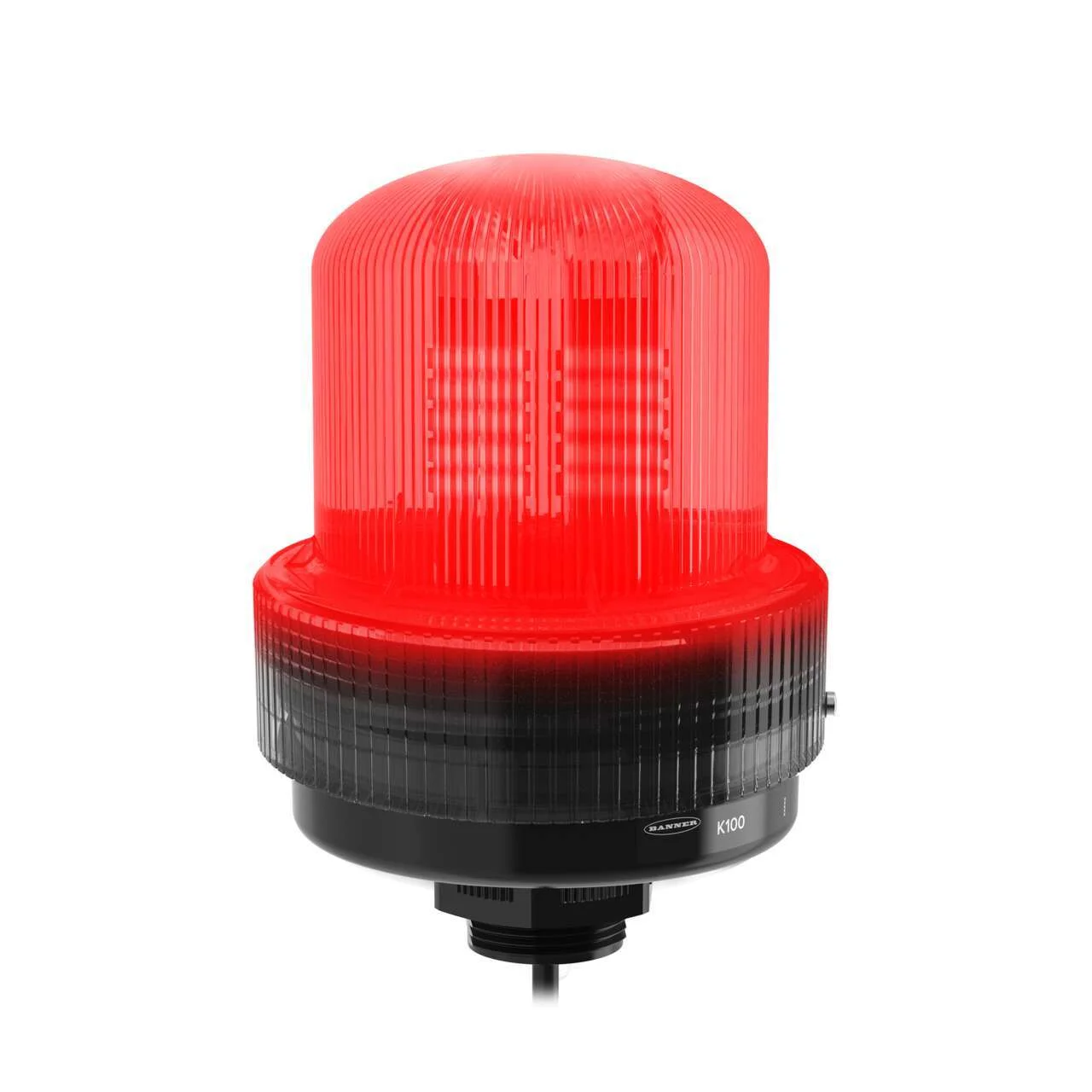

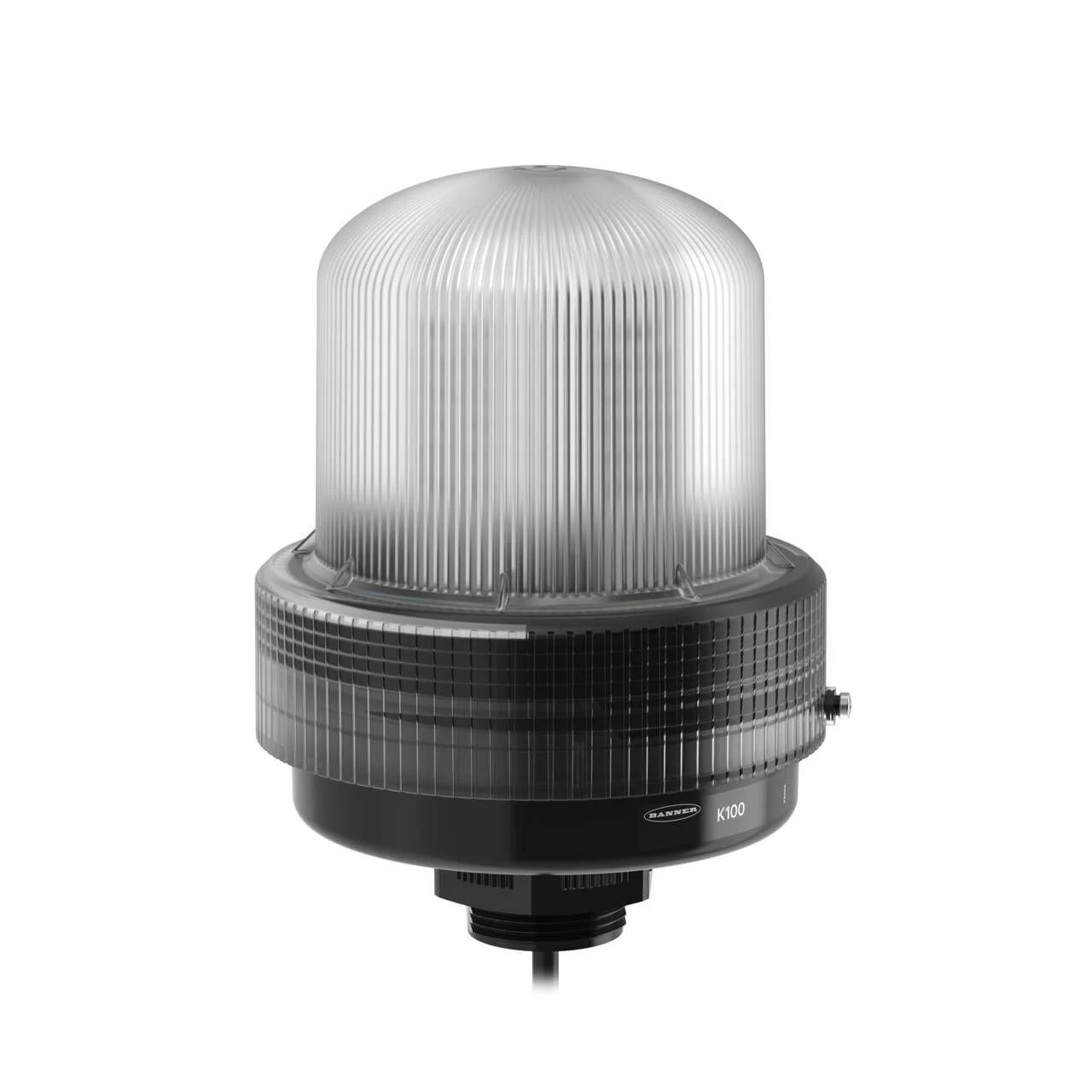

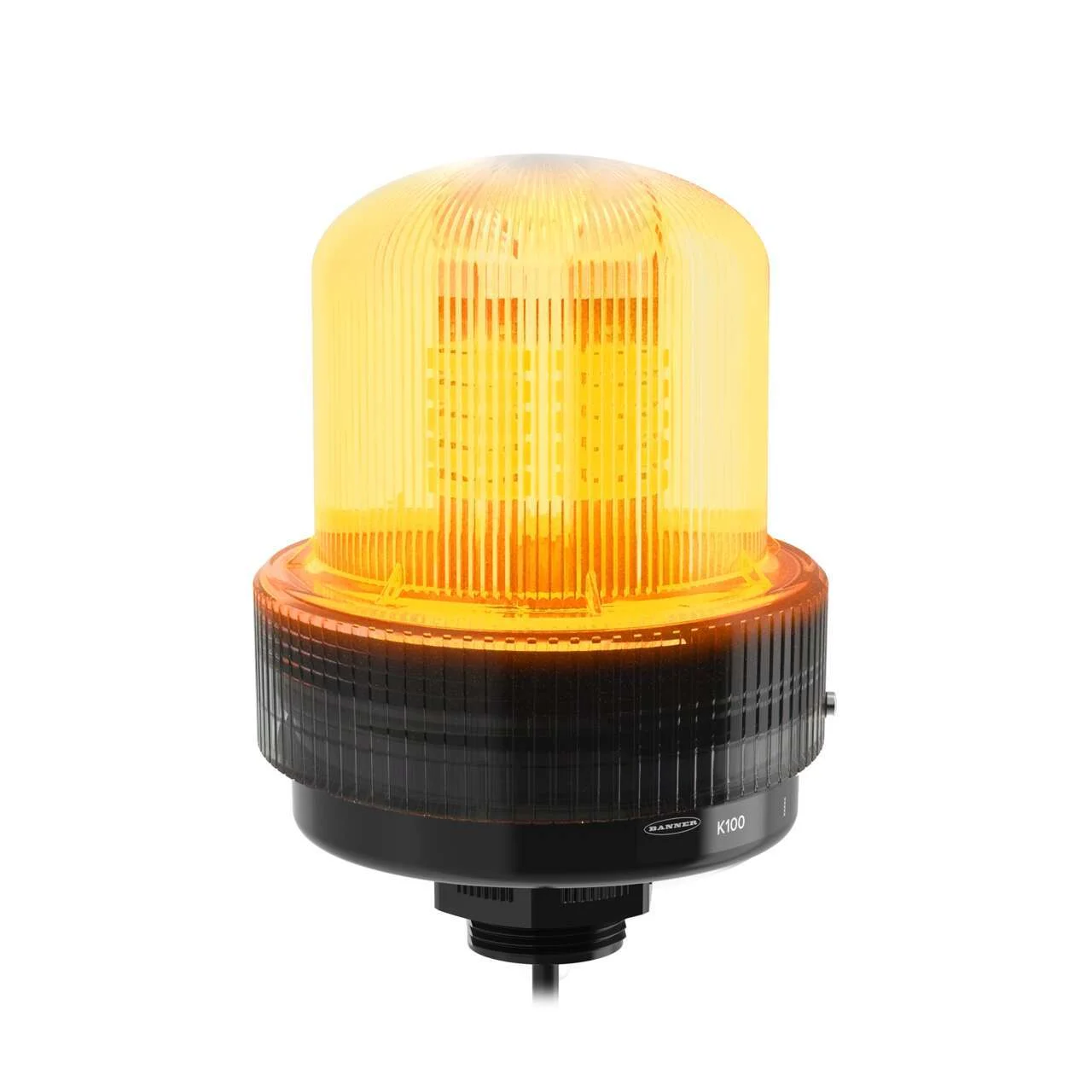

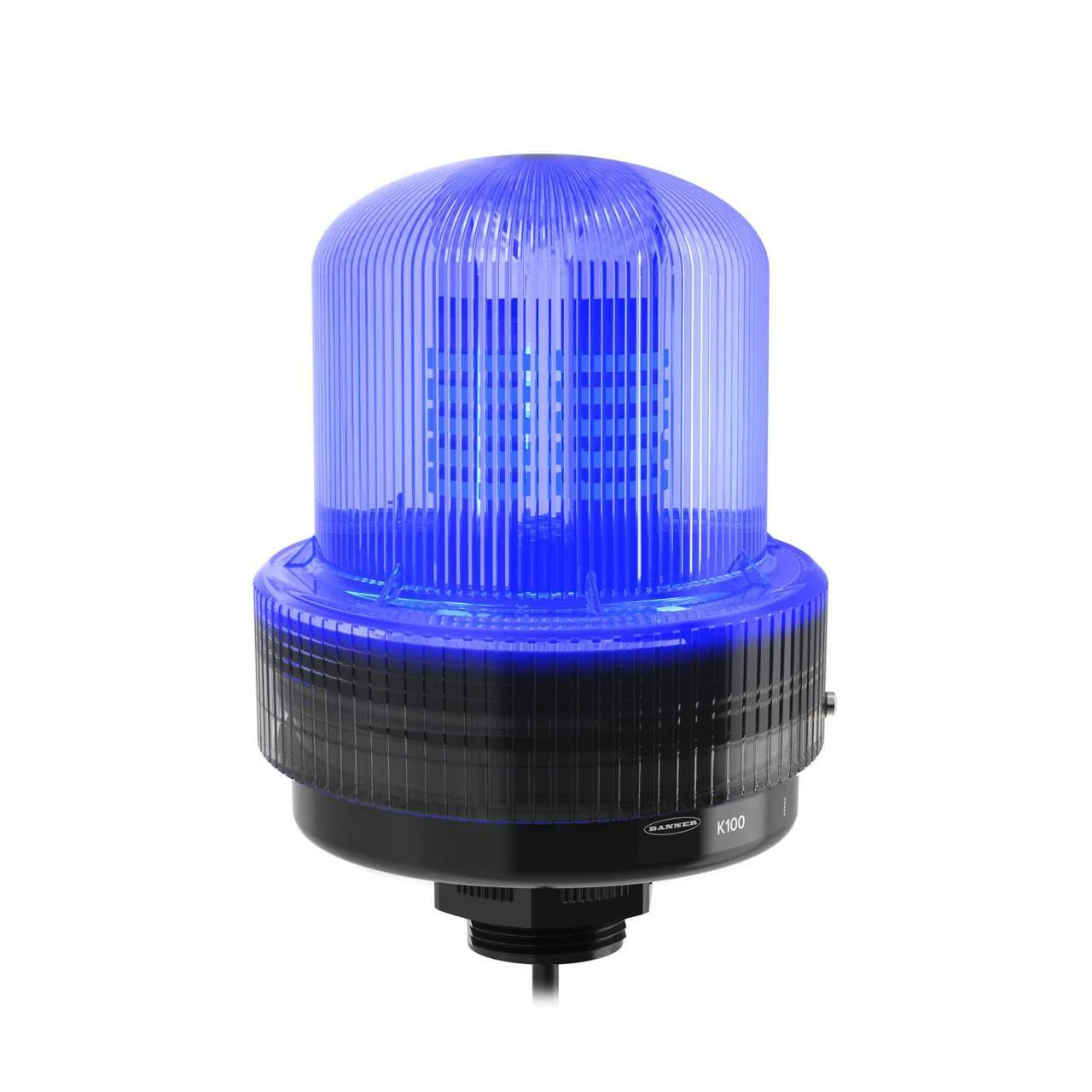

K100 Pro Hazardous Daylight Visible: 3-Color Beacon
100-240 V ac; Polycarbonate; IP66, IP69K
Blue, Yellow, Red
2 m (6.5 ft) ITC-ER 5-wire Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
K100 Pro Hazardous Daylight Visible: 3-Color Beacon
100-240 V ac; Polycarbonate; IP66, IP69K
Blue, Yellow, Red
2 m (6.5 ft) ITC-ER 5-wire Cable
Specification
| Power | AC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP66, IP69K |
| Display | No |
| Nema / Ul Type Rating | UL 4X |
| Supply Voltage | 100-240 V ac |
| Item Status | RELEASED |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M36 x 2.0 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 100 |
| Color Technology | Standard LED |
| Color Option 1 | Blue |
| Animation Option 1 | Programmable |
| Connection | Cable |
| Lumens Color 1 | 165 |
| Color 1 Wavelength/Color Temp/Coordinates | 475 nm |
| Color Option 2 | Yellow |
| Animation Option 2 | Programmable |
| Lumens Color 2 | 525 |
| Color 2 Wavelength/Color Temp/Coordinates | 589 nm |
| Color Option 3 | Red |
| Animation Option 3 | Programmable |
| Lumens Color 3 | 155 |
| Color 3 Wavelength/Color Temp/Coordinates | 625 nm |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 118.5 x 173.2 |
| Environmental Rating | IP69K |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 60 |
| Min Op. Temperature (C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Hazardous Area | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
| Eplan Status | Ready for Prep |
| Eplan Original Sent Date | 06/07/2023 |
