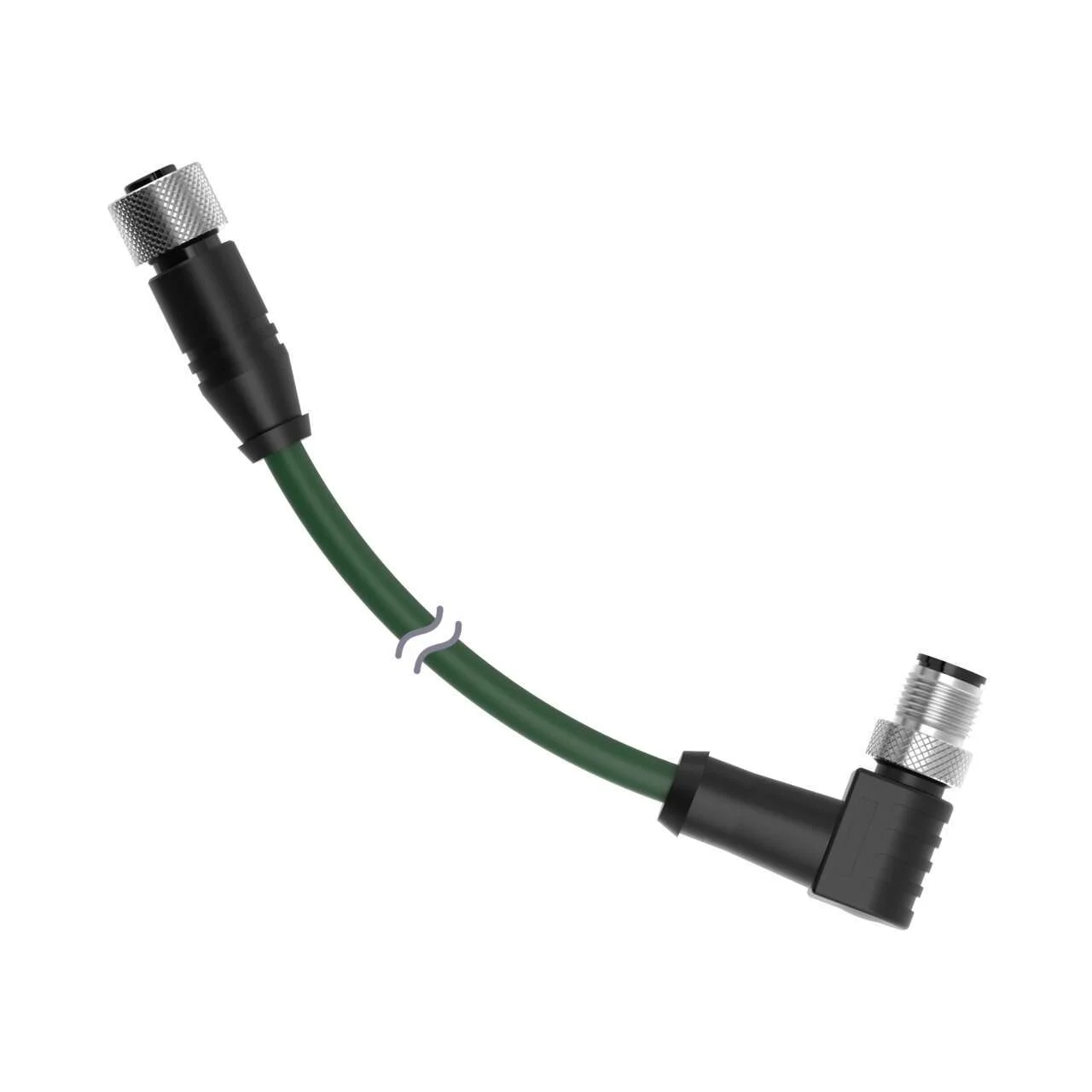

Banner Engineering IVURDM-QD-830RA
Cordset: Double-Ended M12
8-pin Straight Female; 8-pin Right-Angle Male Shielded
9.14 m 8×24 Dark Green TPE Jacket
Nickel-Plated Brass Coupling Nuts
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cordset: Double-Ended M12
8-pin Straight Female; 8-pin Right-Angle Male Shielded
9.14 m 8×24 Dark Green TPE Jacket
Nickel-Plated Brass Coupling Nuts
Specification
| Ip Rating | IP67 |
|---|---|
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Number Of Ends | Double Ended |
| Connector 1 Number Of Contacts | 8 |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 2 Number Of Contacts | 8 |
| Cable Jacket Material | TPE |
| Cable Jacket Color | Dark Green |
| Connector 1 Key Code | A |
| Connector 2 Key Code | A |
| Connector 1 Gender | Female |
| Outside Cable Diameter (Mm) | 6.2 |
| Connector 2 Gender | Male |
| Cordset Length (M) | 9.14 |
| Connector 1 Orientation | Straight |
| Connector 2 Orientation | Right Angle |
| Overmold Material And Color | PUR Black |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Trunk Length (M) | No Trunk |
| Minimum Temp. (Celsius) | -40 |
| Maximum Temp. (Celsius) | 70 |
| Current Rating (A) | 2.0 |
| Coiled | No |
| Supply Voltage | 30 V ac/dc |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Indication | No |
| Feature: Washdown Rated | No |
| Feature: Chemical Resistant | No |
| Oil/Grease Resistant | No |
