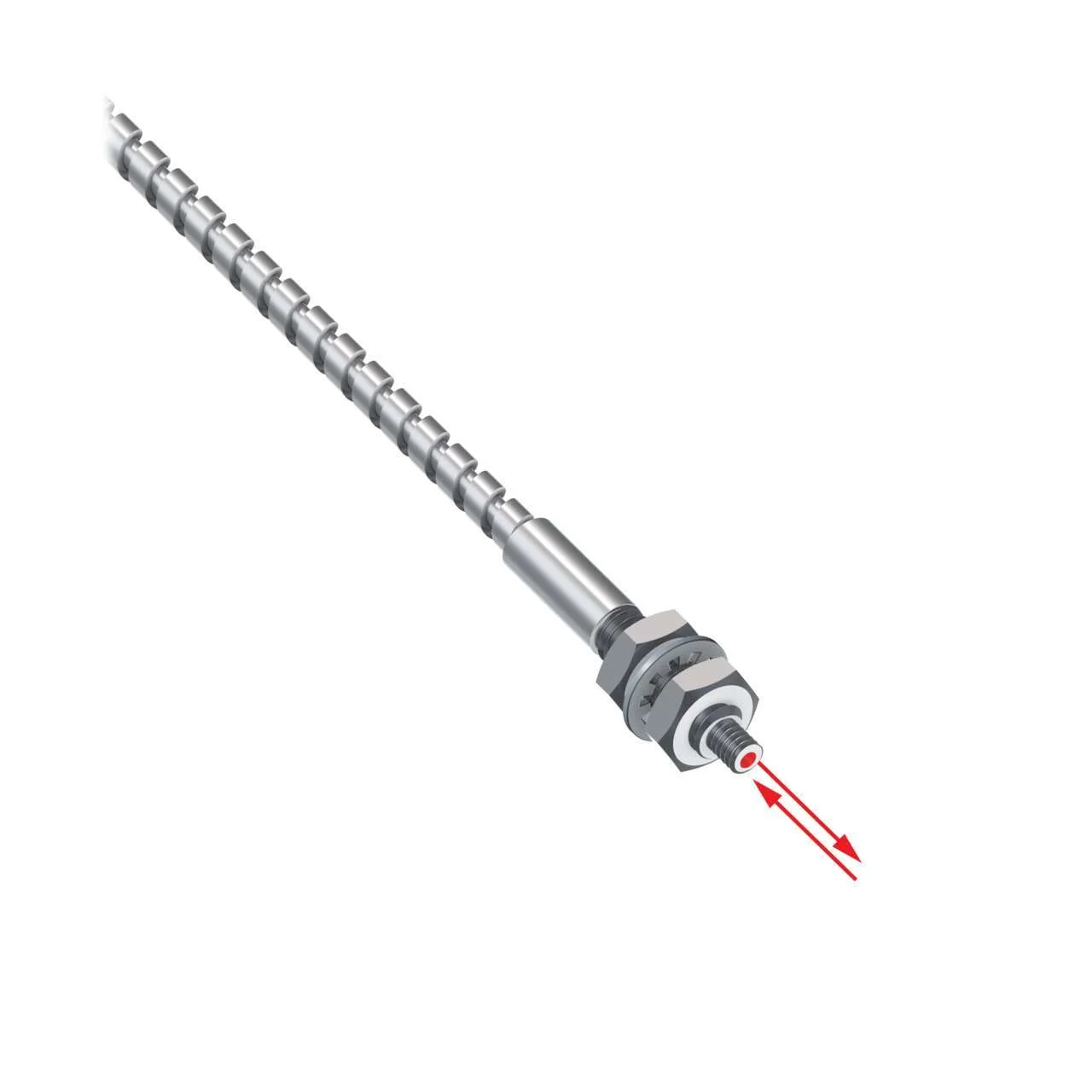

Banner Engineering IT46ST5-VL
Glass Fiber
Opposed Mode 1 mm. dia. Bundle
M4 Threaded Tip With M2.5
Stainless Sheathing 2 m Long
Terminated For Plastic Fiber Sensors
Vantage Line
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Glass Fiber
Opposed Mode 1 mm. dia. Bundle
M4 Threaded Tip With M2.5
Stainless Sheathing 2 m Long
Terminated For Plastic Fiber Sensors
Vantage Line
Specification
| Max Range: Df G3 (Mm) | >3m – <=5m |
|---|---|
| Item Status | RELEASED |
| Housing Style | Round |
| Quantity Included | 1 |
| Fiber Optic Type | Glass |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Stainless Steel |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Fiber Sensing End Tip | Thread |
| Fiber Length (M) | 2 |
| Fiber Sensing End Size | M2.5 |
| Sensing End Segment 1 | Thread |
| Sensing End Segment 2 | Thread |
| Retractile | No |
| Flex Relief | Yes |
| Core Diameter (Mm) | 1 |
| Minimum Bend Radius (Mm) | 25 |
| Termination | Terminated |
| Max Temp (C) | 249 |
| Integrated Lens | No |
| Feature: Chemical Resistant | No |
| Feature: Small Object Detection | No |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Plastic Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 648 |
| Max Distance: Df G1 (Mm) | 513 |
| Max Distance: Df G2 (Mm) | 832 |
| Max Distance: Df G3 (Mm) | 3989 |
| Measured Max Distance (Mm) | 513 |
| Fiber Sensing End Size Mounting Area | M4 |
