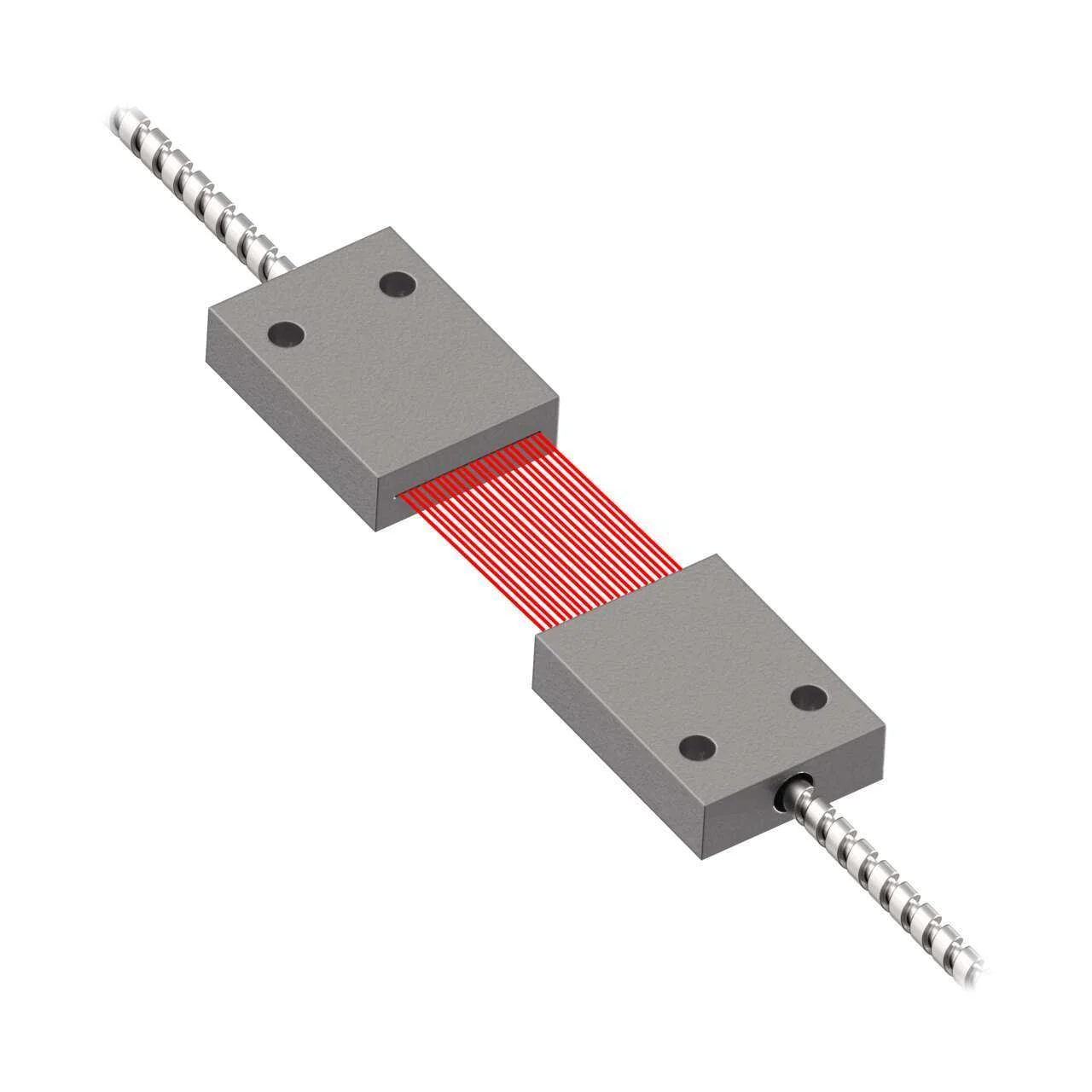

Banner Engineering IR13ST5AL7.6
Glass Fiber Opposed Mode
1 m long
Stainless Steel Sheath

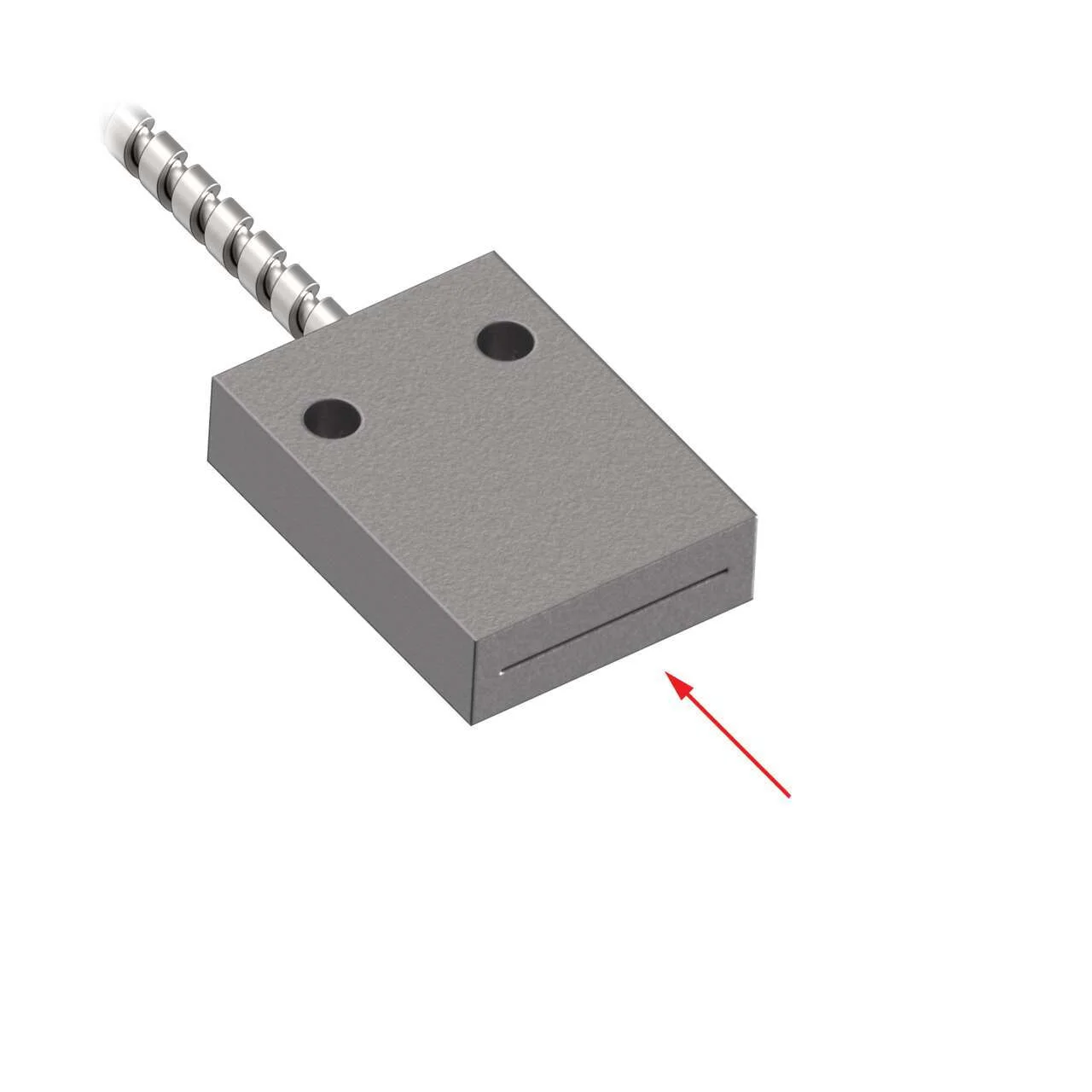

Rectangle Sensing Tip
0.25 mm x 7.62 mm array
Max. Operating Temperature at Sensing Tip, 315C
Terminate…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Glass Fiber Opposed Mode
1 m long
Stainless Steel Sheath
Rectangle Sensing Tip
0.25 mm x 7.62 mm array
Max. Operating Temperature at Sensing Tip, 315C
Terminated for use in Plastic Fiber Sensors
Specification
| Max Range: Df G3 (Mm) | >5m |
|---|---|
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Quantity Included | 1 |
| Fiber Optic Type | Glass |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Array |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Aluminum |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Fiber Sensing End Tip | Array |
| Fiber Length (M) | 1 |
| Fiber Sensing End Size | 19.1 x 25.4 mm |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Array |
| Array Length (Mm) | 7.6 |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (Mm) | 1.6 |
| Minimum Bend Radius (Mm) | 25 |
| Termination | Terminated |
| Max Temp (C) | 315 |
| Integrated Lens | No |
| Feature: Chemical Resistant | No |
| Feature: Small Object Detection | Yes |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Plastic Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 829 |
| Max Distance: Df G1 (Mm) | 719 |
| Max Distance: Df G2 (Mm) | 1165 |
| Max Distance: Df G3 (Mm) | 5590 |
| Measured Max Distance (Mm) | 719 |
| Fiber Sensing End Size Mounting Area | 19.1 x 25.4 mm |
