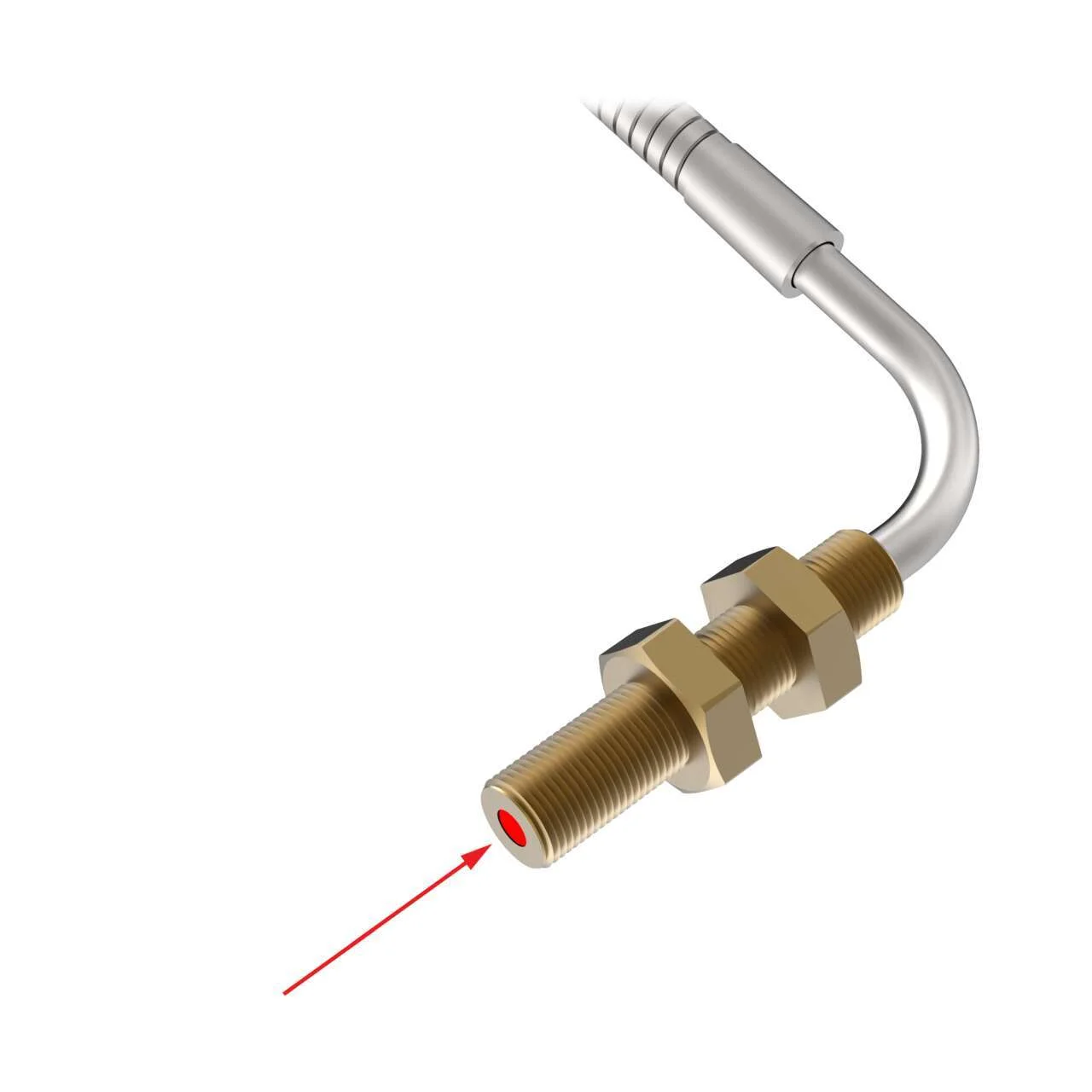

Banner Engineering IAT26S
IAT26S Glass Fiber Optic
Individual 90 Degree Angle with Threaded Ferrule
6 ft Length Stainless Steel Sheathing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
IAT26S Glass Fiber Optic
Individual 90 Degree Angle with Threaded Ferrule
6 ft Length Stainless Steel Sheathing
Specification
| Item Status | RELEASED |
|---|---|
| Housing Style | Round |
| Quantity Included | 1 |
| Fiber Optic Type | Glass |

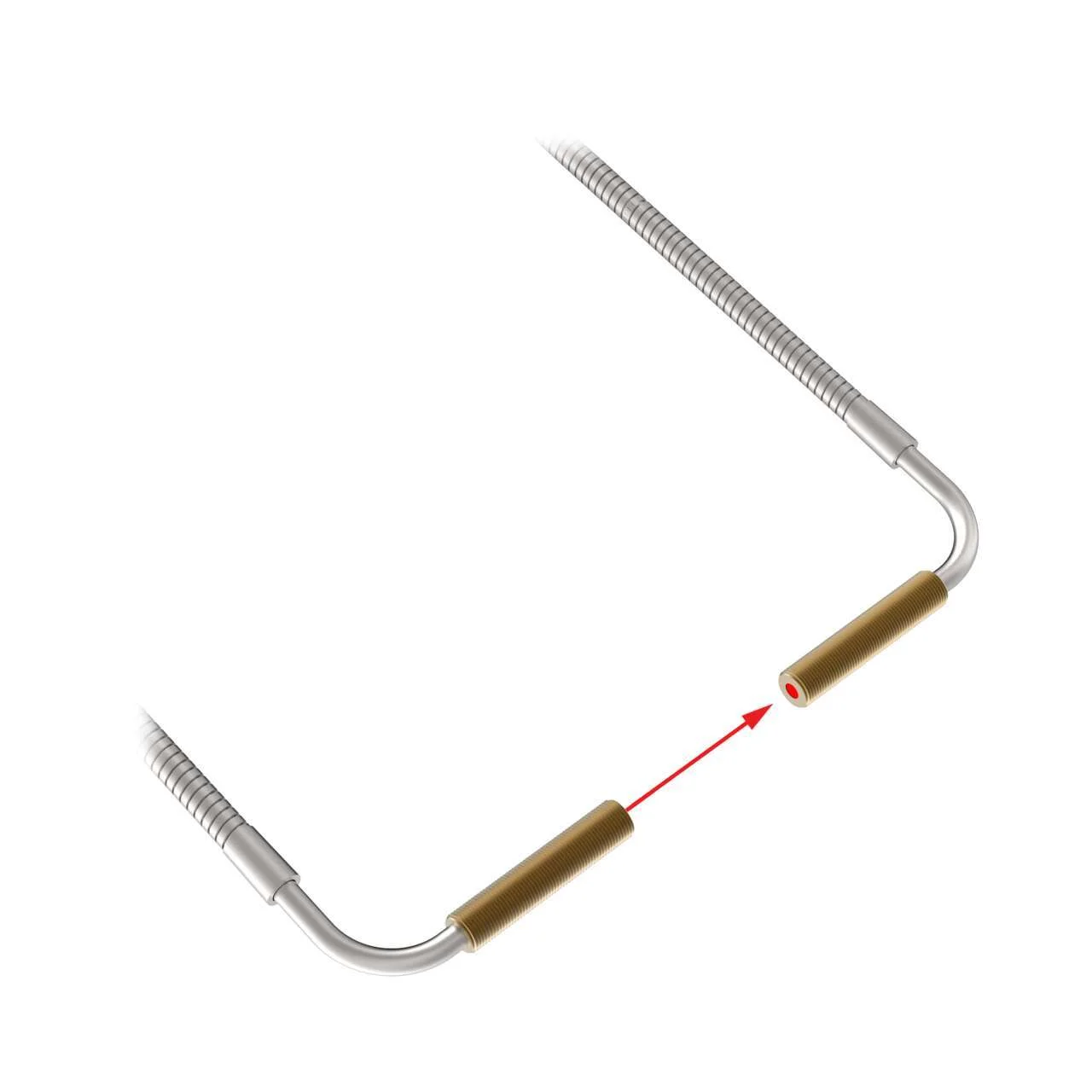

| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | Right Angle |
| Sensing End Material (Specific) | Brass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Fiber Sensing End Tip | Thread |
| Fiber Length (M) | 1.829 |
| Fiber Sensing End Size | #5/16-24 thread |
| Sensing End Segment 1 | Angle |
| Sensing End Segment 2 | Thread |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (Mm) | 3.2 |
| Minimum Bend Radius (Mm) | 25 |
| Termination | Terminated |
| Max Temp (C) | 249 |
| Integrated Lens | No |
| Feature: Chemical Resistant | No |
| Feature: Small Object Detection | No |
| Application: Liquid Level | No |
| Application: Vacuum Feed Through | None |
| Termination Type | Glass Fiber Sensors |
| Tariff Fiber Meters (Fbm) | 6224.09 |
| Max Distance: Df G1 (Mm) | No Data |
| Max Distance: Df G2 (Mm) | No Data |
| Max Distance: Df G3 (Mm) | No Data |
| Measured Max Distance (Mm) | No Data |
| Fiber Sensing End Size Mounting Area | #5/16-24 thread |
