Banner Engineering HLS28XW285XM W/15

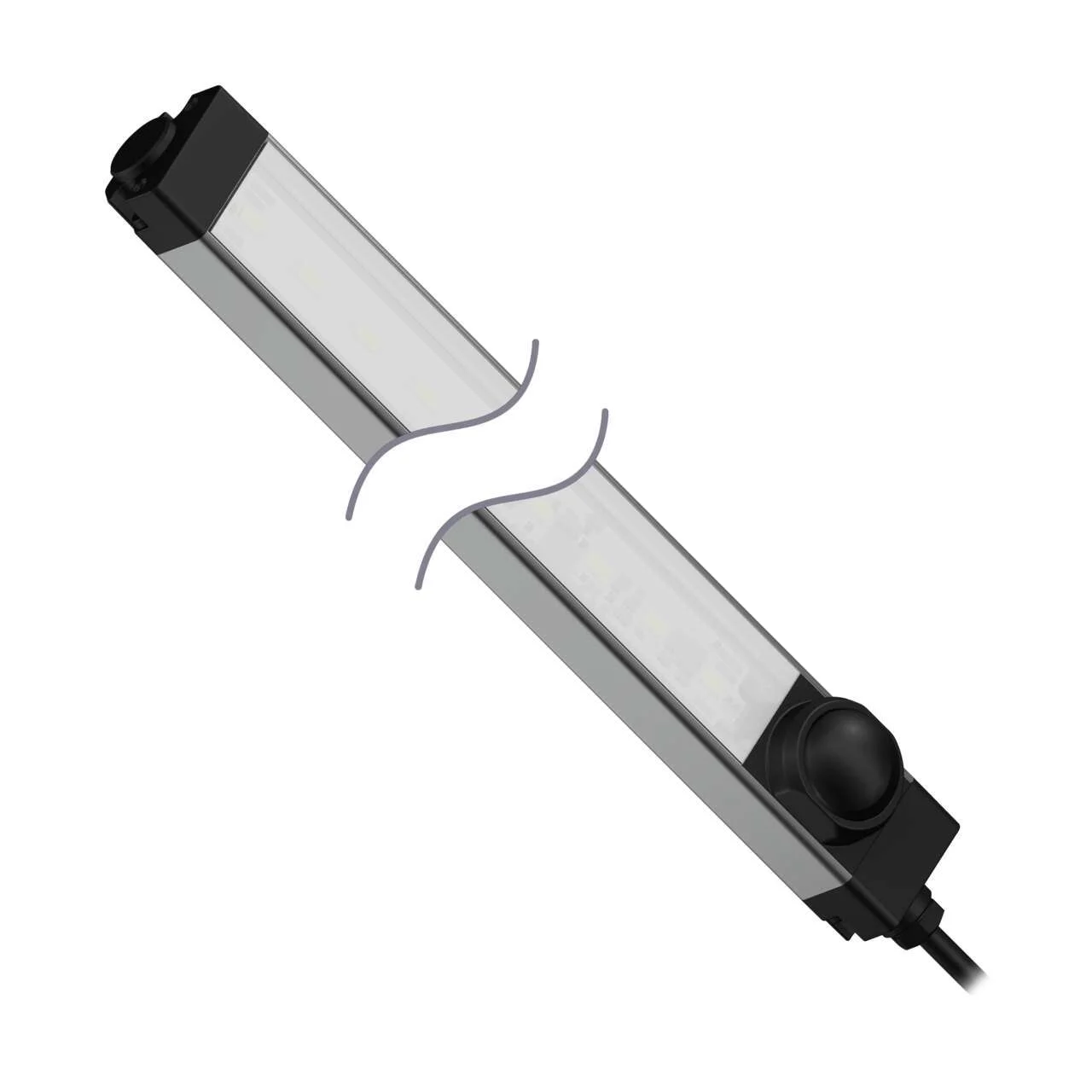

HLS28 Hazardous Enclosure Strip Light; Motion; Clear Window; 285 mm
12-30 V dc; IP50
Color: White
5 m (15 ft) Integral Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HLS28 Hazardous Enclosure Strip Light; Motion; Clear Window; 285 mm
12-30 V dc; IP50
Color: White
5 m (15 ft) Integral Cable
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 4.5 |
| Ip Rating | IP50 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Aluminum |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 28 |
| Color Technology | Standard LED |
| Color Option 1 | Cool White |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 800 |
| Color 1 Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Max Current Color (Ma) | 800 |
| Number Of Input Pins/Conductors | 3 |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 285.0 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 354.5 x 28.0 x 35.9 |
| Environmental Rating | IP50 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 60 |
| Min Op. Temperature (C) | -20 |
| Storage Temp (C) | -40 to 70 |
| Primary Window Material | Polycarbonate Clear |
| Illumination Switch Function | Motion Activated |
| Feature: Washdown Rated | No |
| Feature: Hazardous Area | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
