Banner Engineering HLS27DWGRYB5-570C24
HLS27 Hazardous Location Multicolor Strip Light; Length: 570 mm
Voltage: 24 V dc; Environmental Rating: IP66; IP67
Colors: White, Green, Red, Yellow, Blue
2 m (…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

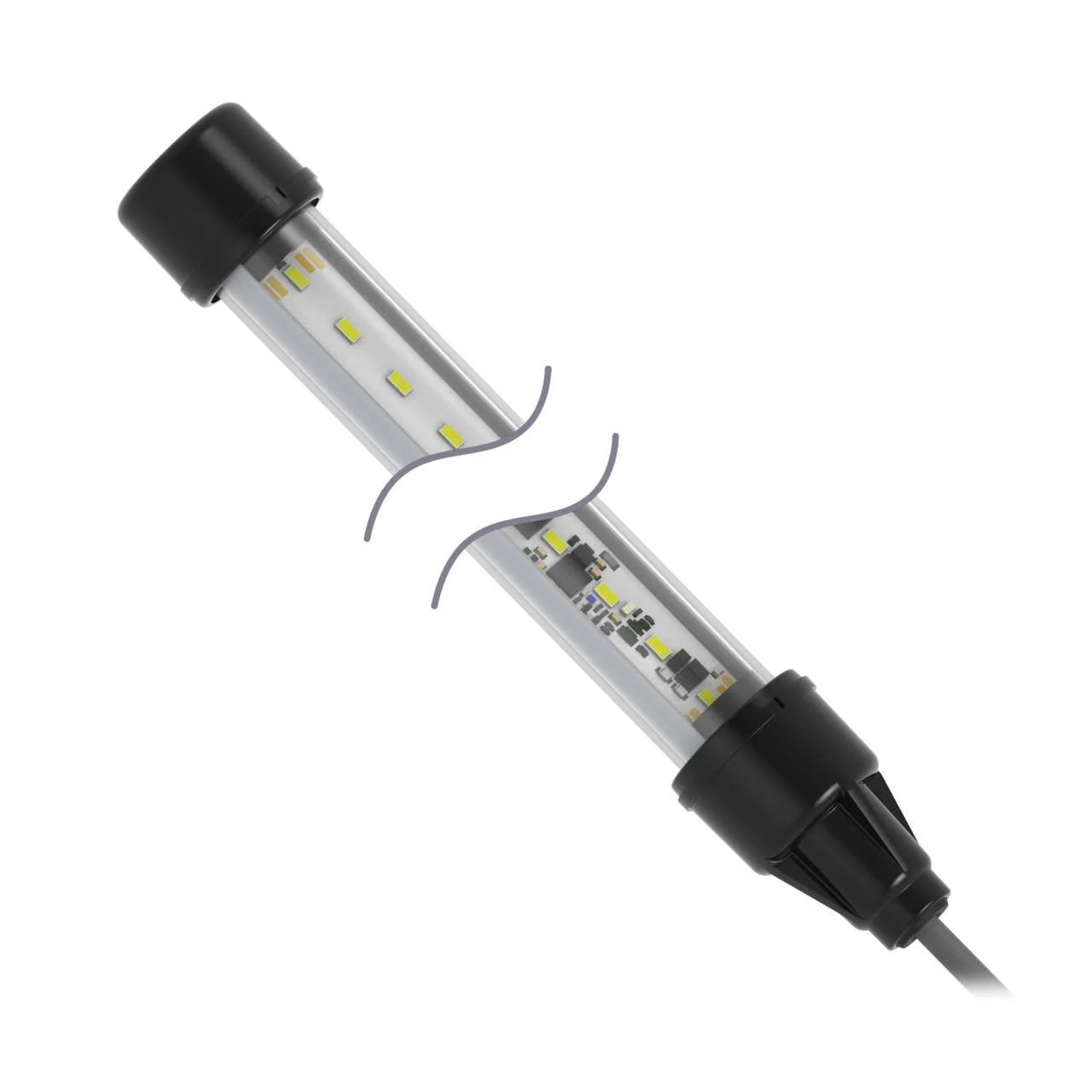

HLS27 Hazardous Location Multicolor Strip Light; Length: 570 mm
Voltage: 24 V dc; Environmental Rating: IP66; IP67
Colors: White, Green, Red, Yellow, Blue
2 m (6.5 ft) ITC-ER 4-wire Cable
Specification
| Power | DC |
|---|---|
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP66, IP67 |
| Display | No |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 5 |
| Product Size (Mm) | 27 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 1380 |
| Color 1 Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Option 2 | Green |
| Animation Option 2 | Solid On |
| Lumens Color 2 | 850 |
| Color 2 Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 3 | Red |
| Animation Option 3 | Solid On |
| Lumens Color 3 | 390 |
| Color 3 Wavelength/Color Temp/Coordinates | 625 nm |
| Color Option 4 | Yellow |
| Animation Option 4 | Solid On |
| Lumens Color 4 | 1210 |
| Color 4 Wavelength/Color Temp/Coordinates | 580 nm |
| Color Option 5 | Blue |
| Animation Option 5 | Solid On |
| Lumens Color 5 | 230 |
| Color 5 Wavelength/Color Temp/Coordinates | 470 nm |
| Max Current Color (Ma) | 800 |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 564.0 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 38.1 x 652.0 |
| Environmental Rating | IP66; IP67 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 60 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Window Material | Polycarbonate Clear |
| Feature: Washdown Rated | No |
| Feature: Hazardous Area | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | Yes |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
