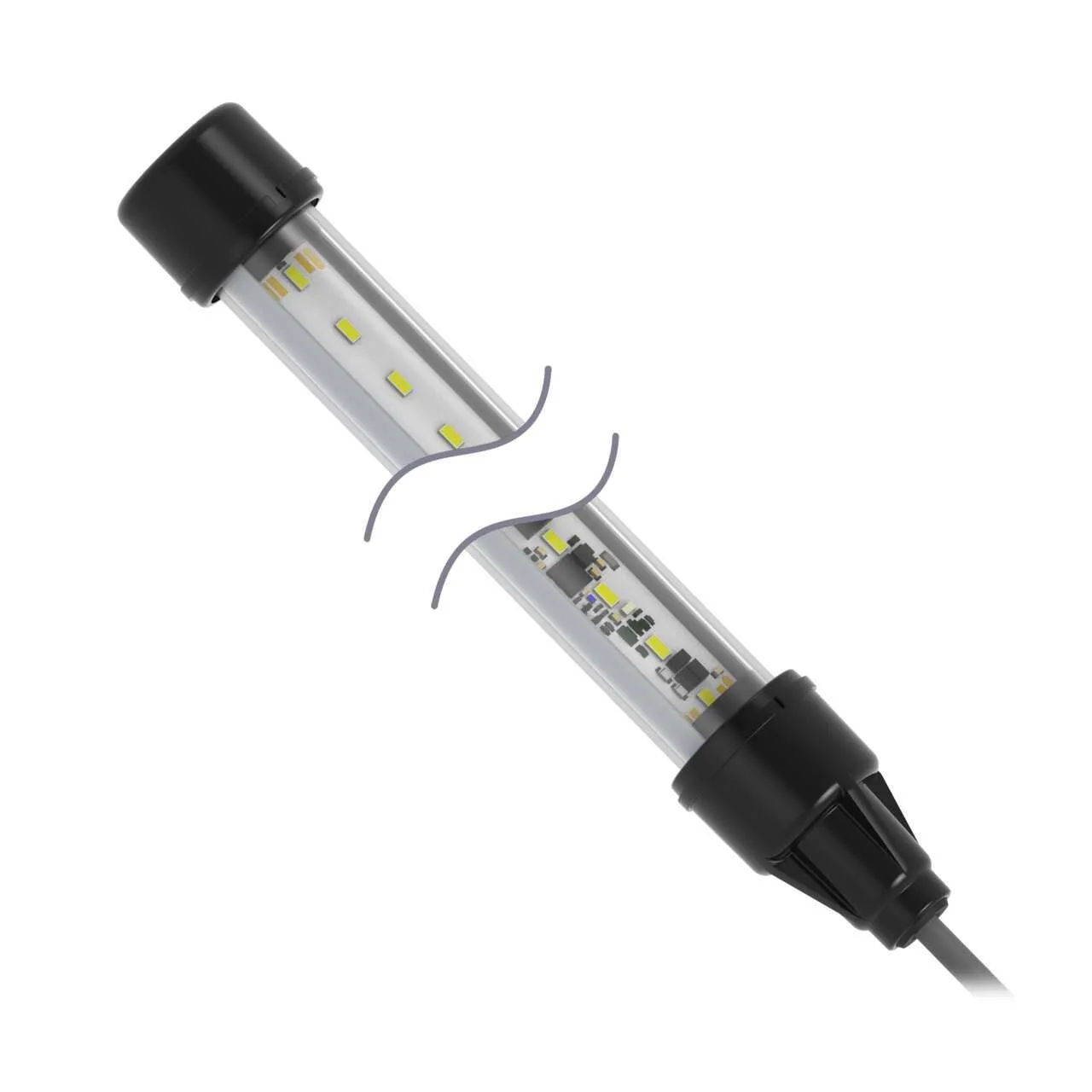

Banner Engineering HLS27DWGRYB5-1130C24

HLS27 Hazardous Location Multicolor Strip Light; Length: 1130 mm Voltage: 24 V dc; Environmental Rating: IP66; IP67 Colors: White, Green, Red, Yellow, Blue 2 m (6.5 ft) ITC-ER 4-wire Cable. Part number: 809259. Power: DC. Non-Illuminated: No. Cable Length (m): 2. IP Rating: IP66, IP67. Display: No. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Multiple (One or more wires/color, enables more colors than input wires). Number of Colors: 5. Product Size (mm): 27. Color Technology: Standard LED. Color Option 1: Daylight White. Animation Option 1: Solid On. Connection: Cable. Lumens Color 1: 2760. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Color Option 2: Green. Animation Option 2: Solid On. Lumens Color 2: 1700. Color 2 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 3: Red. Animation Option 3: Solid On. Lumens Color 3: 780. Color 3 – Wavelength/Color Temp/Coordinates: 625 nm. Color Option 4: Yellow. Animation Option 4: Solid On. Lumens Color 4: 2420. Color 4 – Wavelength/Color Temp/Coordinates: 580 nm. Color Option 5: Blue. Animation Option 5: Solid On. Lumens Color 5: 460. Color 5 – Wavelength/Color Temp/Coordinates: 470 nm. Max Current Color (mA): 1600. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 1128.0. Physical Dimensions (LxWxH or DxH mm): 38.1 x 1216.0. Environmental Rating: IP66; IP67. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 60. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Clear. Feature: Washdown Rated: No. Feature: Hazardous Area: Yes. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: Yes. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: No. Wireless: No. USB: No
