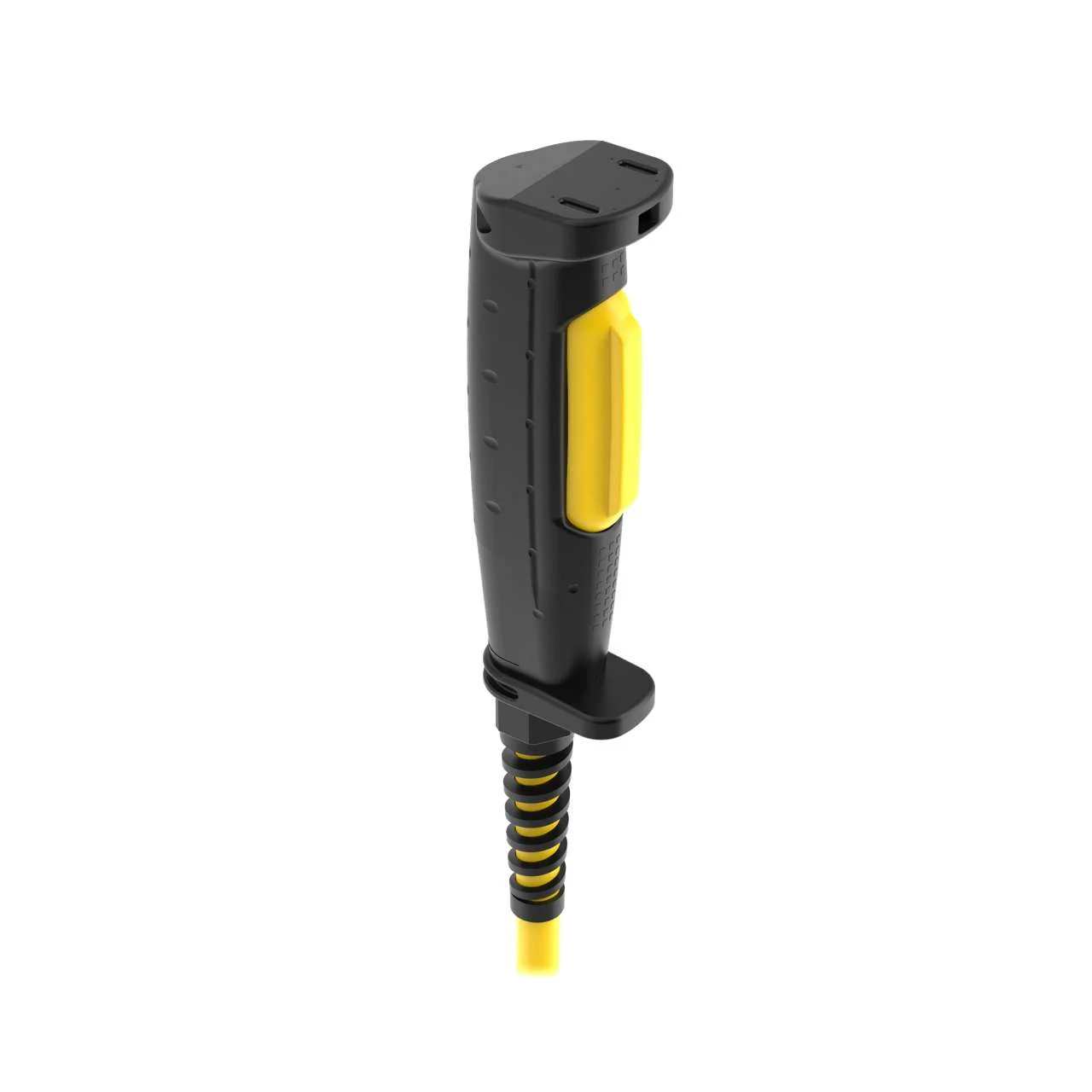

Banner Engineering ED1G-L21SM-1N
Three-position Enabling Device: 2 N/O and 1 N/C Contacts
M20 x 1.5 conduit
Cordset strain relief provided
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Three-position Enabling Device: 2 N/O and 1 N/C Contacts
M20 x 1.5 conduit
Cordset strain relief provided
Specification
| Connection Type | Wiring Chamber |
|---|---|
| Min Operating Temperature (C) | -10 |
| Max Operating Temperature (C) | 60 |
| Button Shroud | No |
| Ip Rating | IP66 |
| Item Status | RELEASED |
| Housing Style | HandleGrip Switch |
| Device Type | Enabling Switch |
| Primary Housing Material | Thermoplastic |
| Actuation | Manual |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Lockable | No |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NO, 1 NC |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (Hxwxd Mm ) | 269 x 46 x 58 |
