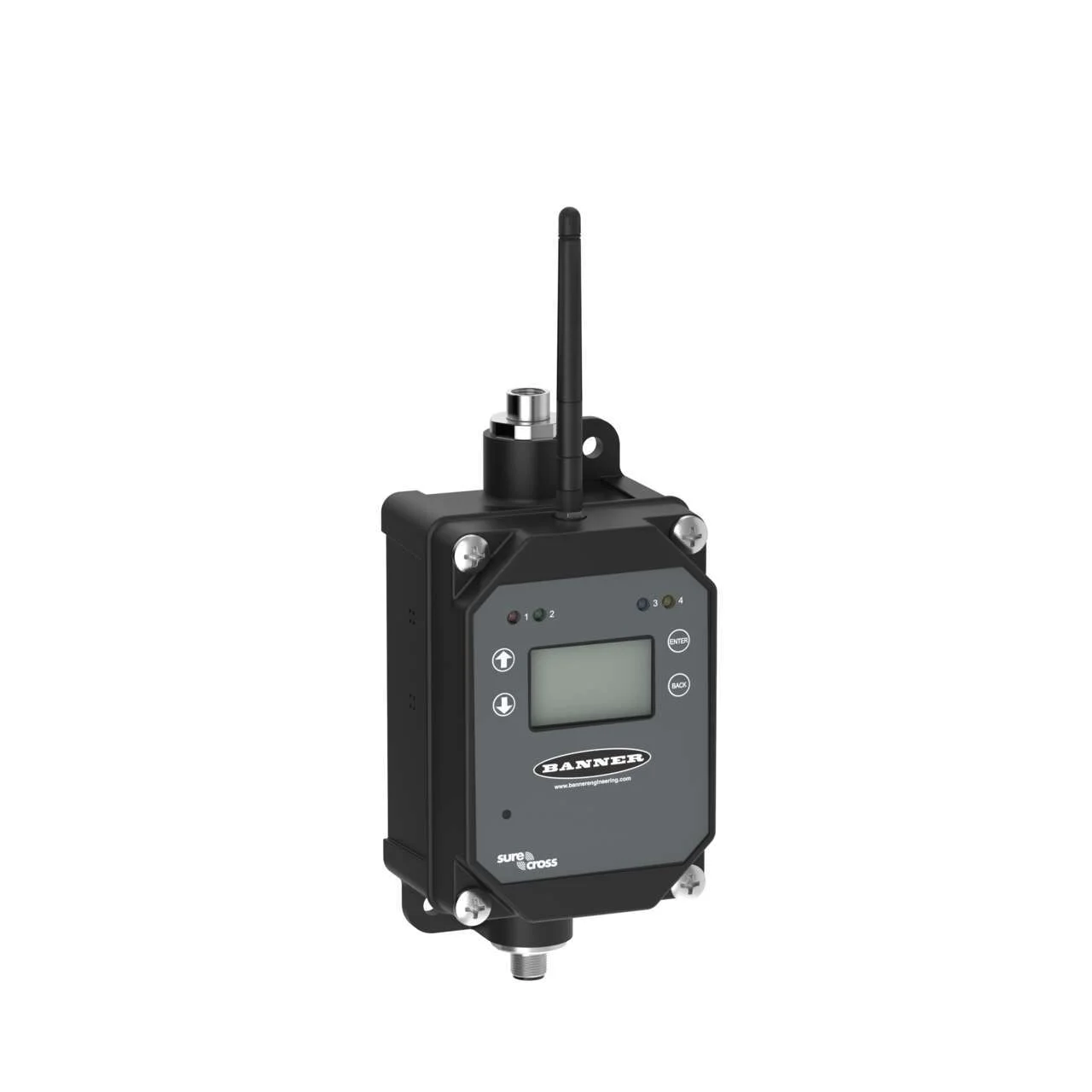

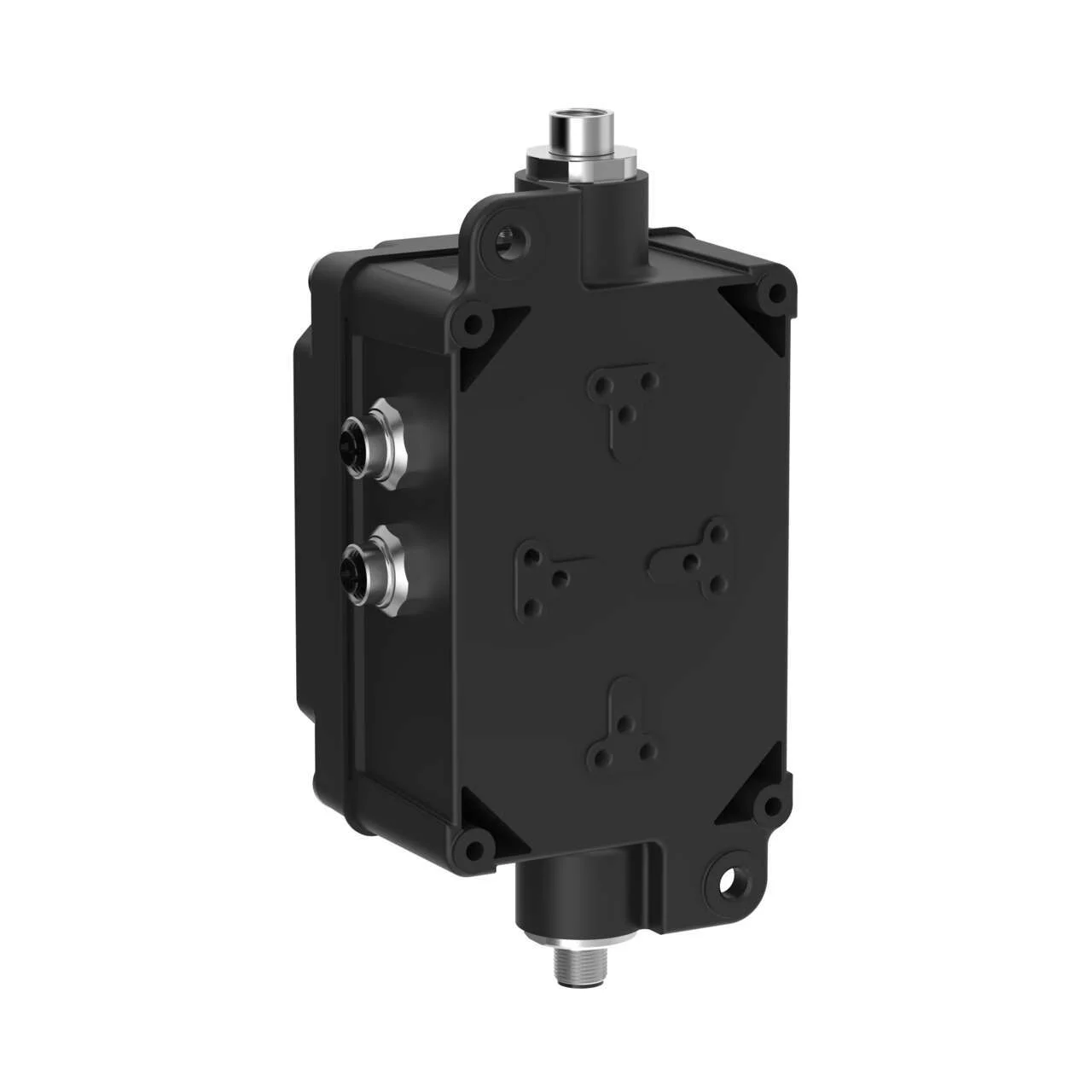

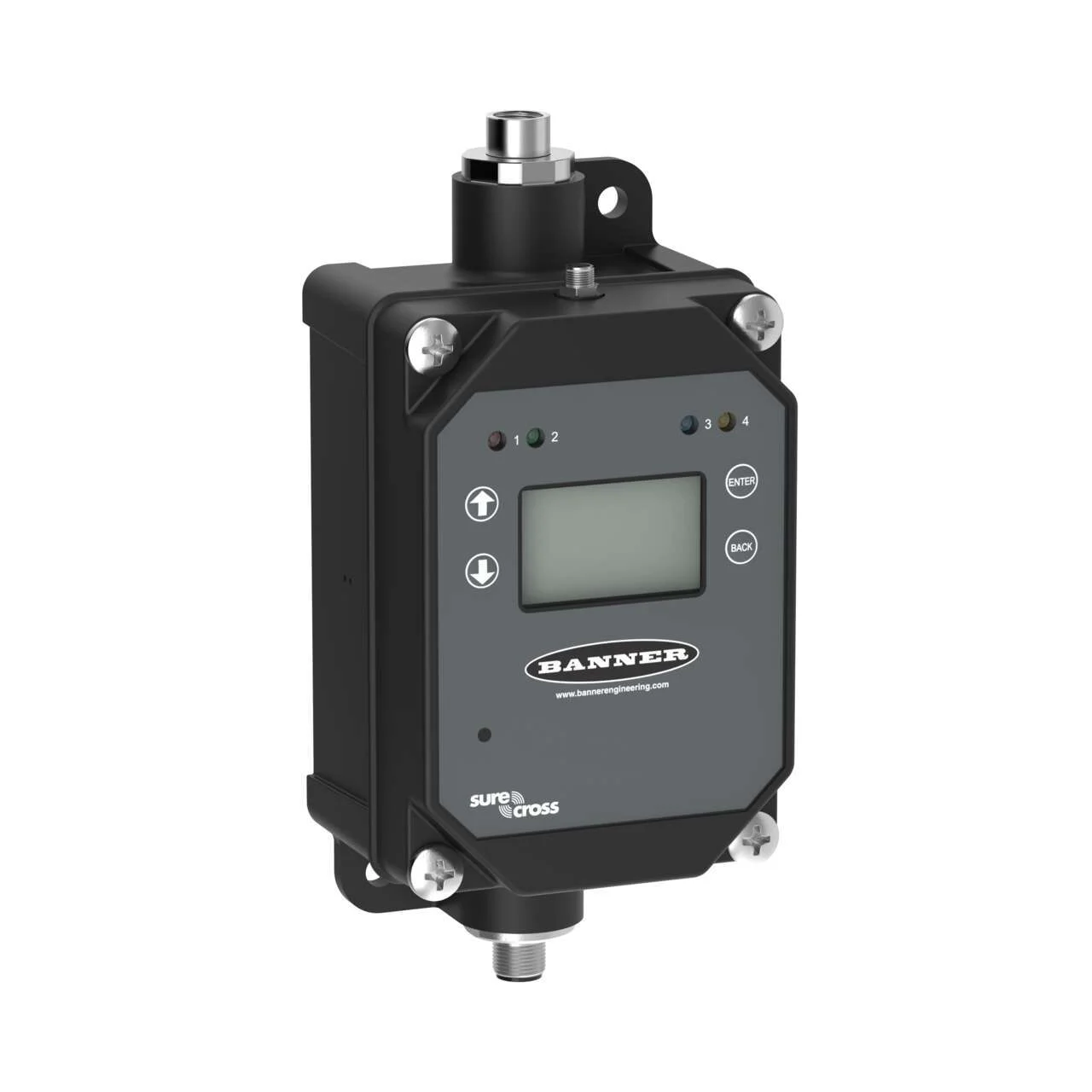

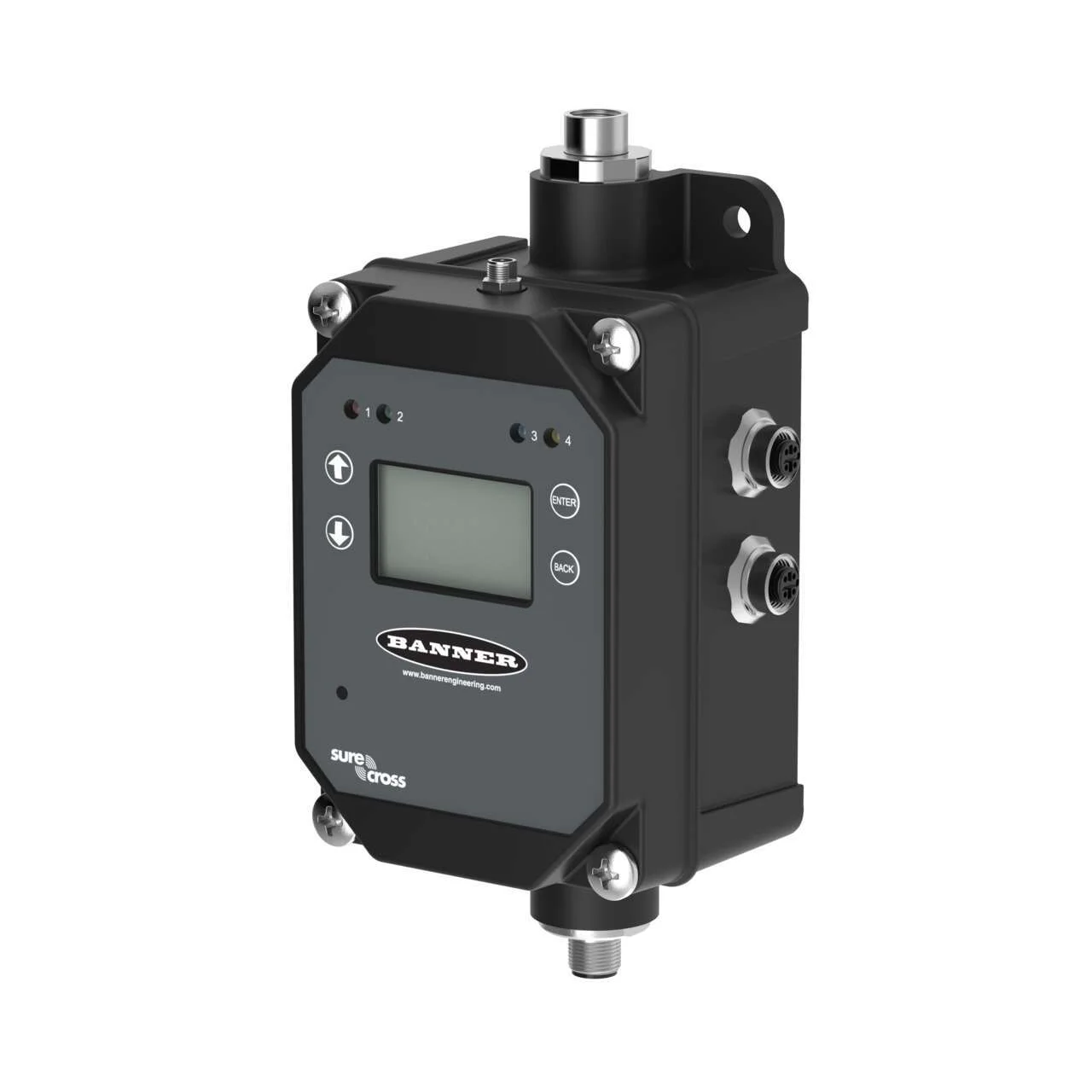

Banner Engineering DXM1200E-B1R3-KR
DXM1200 Controller
E Style Housing
IP67
DX80 ISM 2.4 GHZ Radio (PE5)
LCD Display
(2) M12 RS-485 Inputs
KOREAN RADIO APPROVALS
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DXM1200 Controller
E Style Housing
IP67
DX80 ISM 2.4 GHZ Radio (PE5)
LCD Display
(2) M12 RS-485 Inputs
KOREAN RADIO APPROVALS
Specification
| Power | DC |
|---|---|
| Ip Rating | IP67 |
| Ethernet Connector Type | M12 (D-Code Ethernet) |
| Supply Voltage | 12-30 V dc |
| Item Status | INACTIVE |
| Housing Style | Rectangular |
| Device Type | Wireless Controller with Performance Gateway |
| Input/ Output | Serial (Modbus) |
| Occupancy | No |
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | No |
| Input Details | 2 M12 RS485 Inputs |
| Intrinsically Safe | No |
| Max Temp Operating Conditions (C) | 60 |
| Lcd Display | Yes |
| Min Temp Operating Conditions (C) | -20 |
| Point To Multipoint Topology | Yes |
| Point To Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Processing Speed (Mhz) | 300 |
| On Board Memory (Mb) | 16 |
| Application: Indicator Light | Yes |
| Ether Net/ I P | Yes |
| Modbus Rtu | Yes |
| Modbus/ T C P | Yes |
| P R O F I N E T | Yes |
| R S 232 | No |
| R S 485 | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| 1 Wire Serial Interface | No |
| Cert: Australia/New Zealand | Yes |
| Cert: Korea | Yes |
| Cert: Brazil | Yes |
