Banner Engineering DF-G3IR-ND-Q5

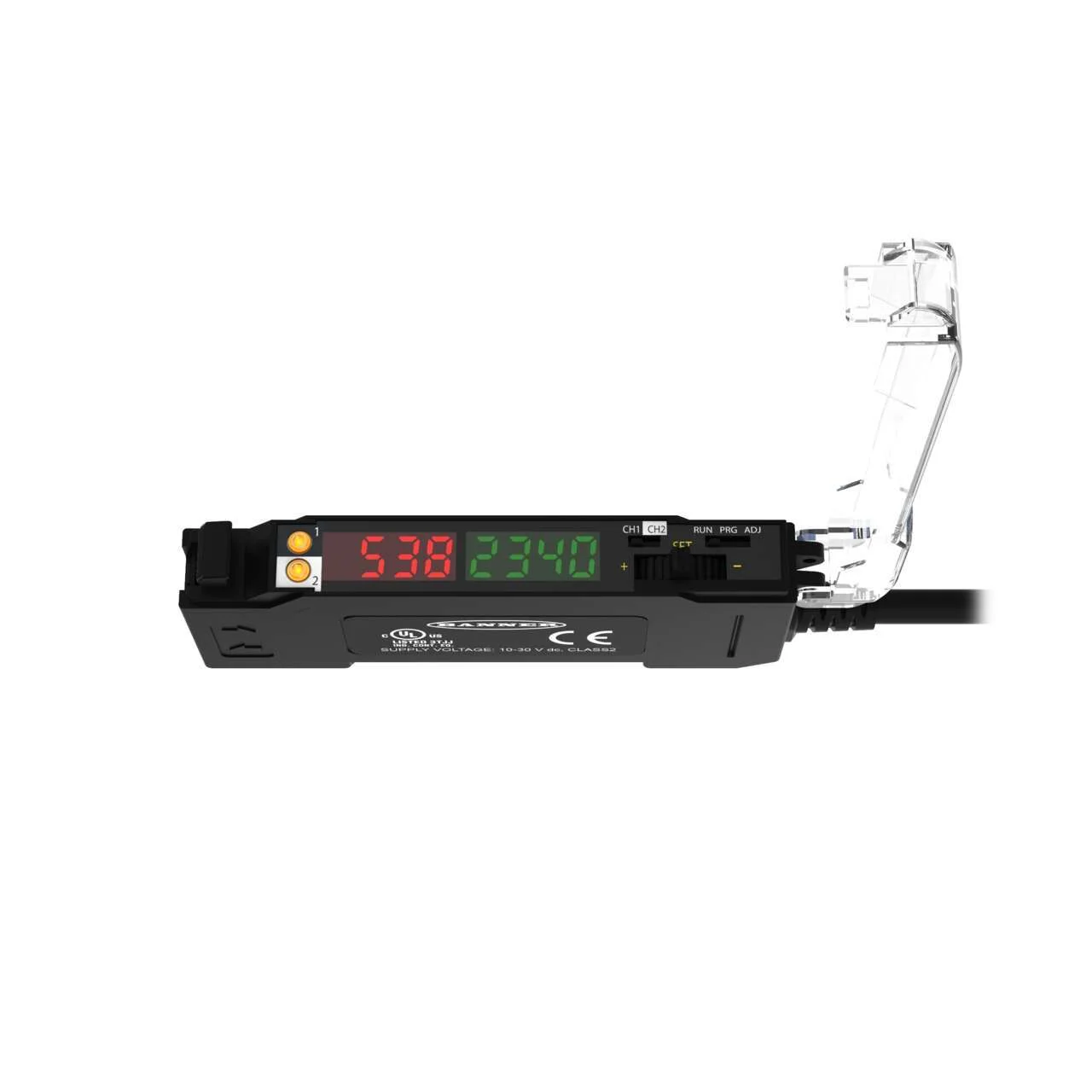

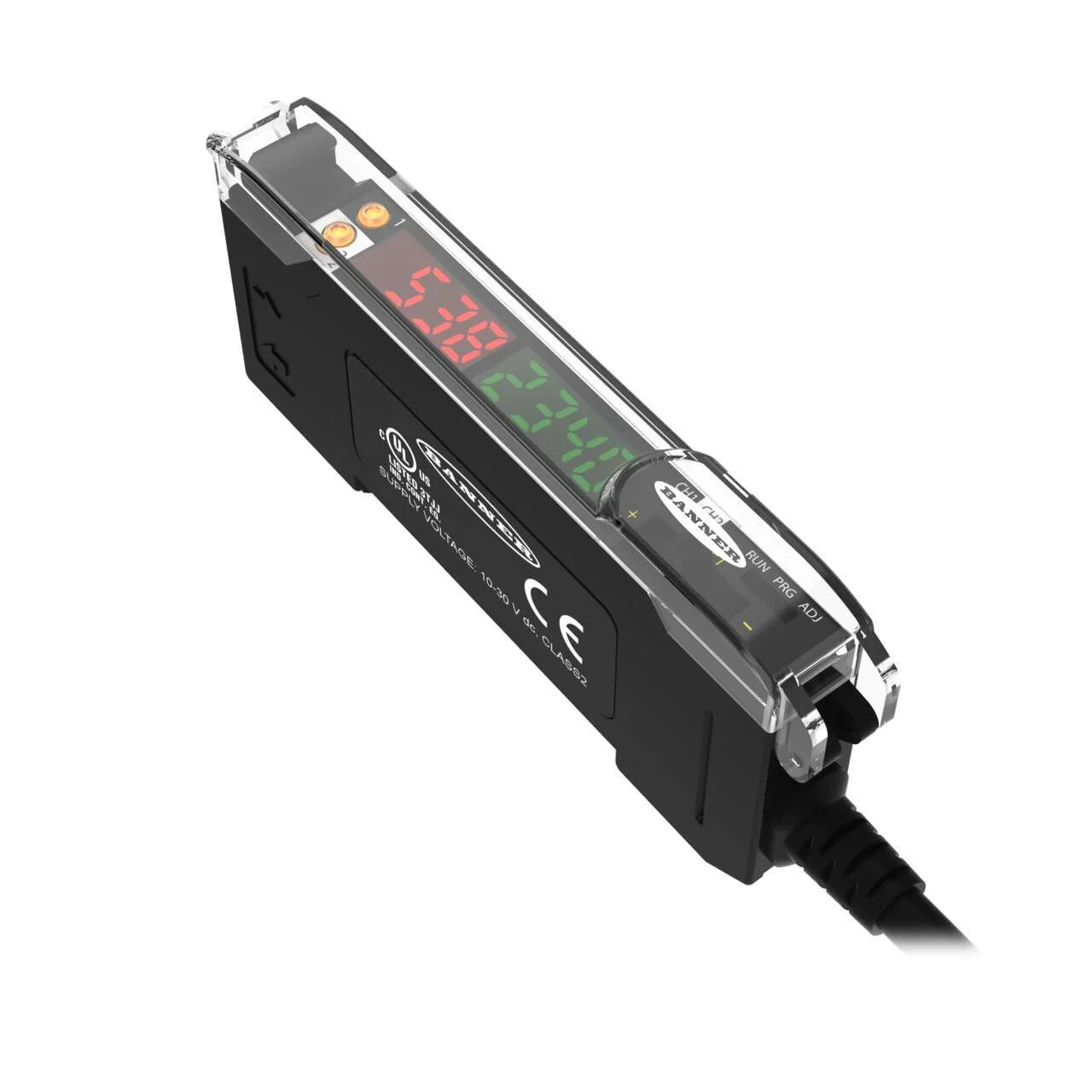

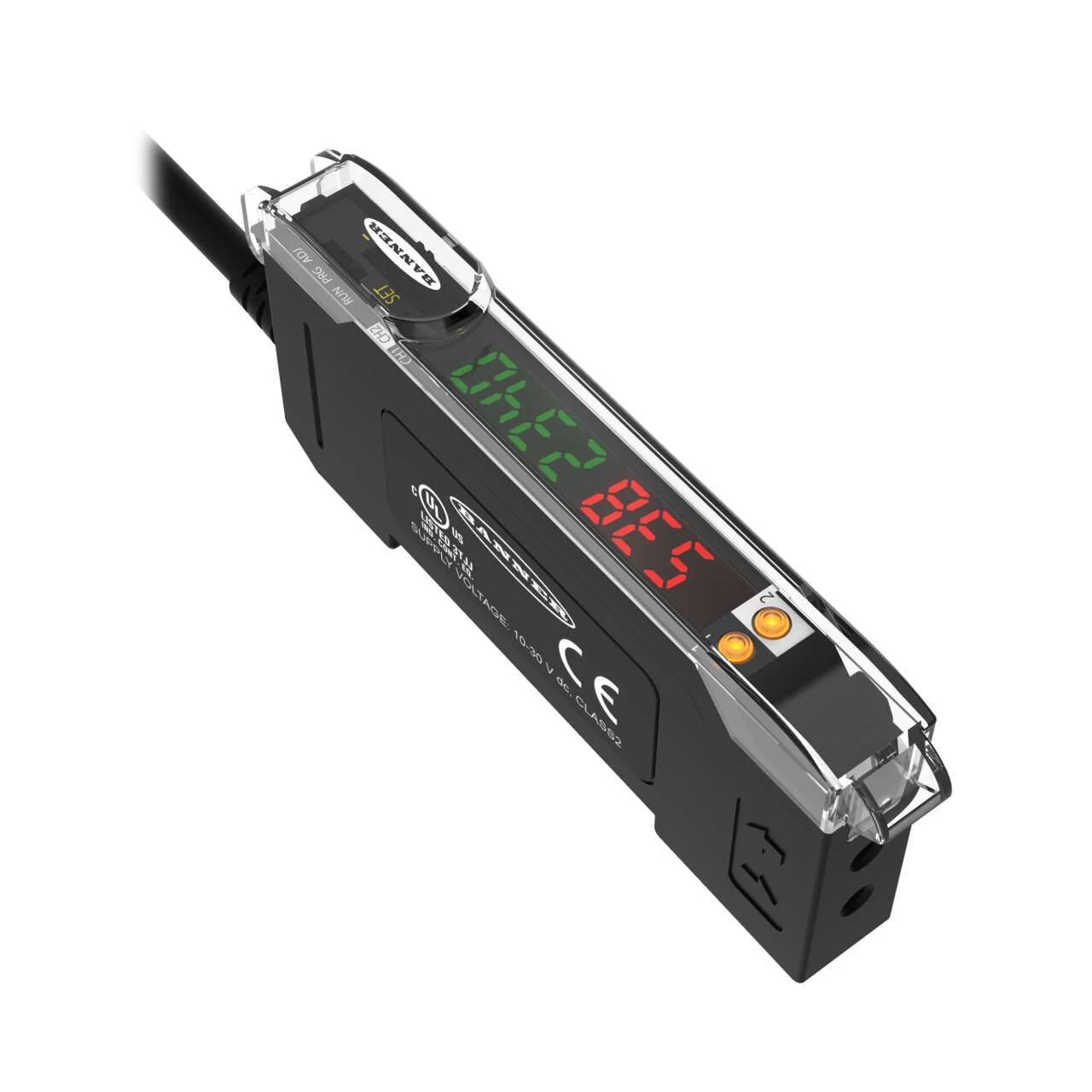

DF-G3 IR Beam High Power Dual Display Fiber Amplifier
Range: Depends on Fiber; Input 10-30 V dc
Outputs: 2 NPN
150 mm (6 in) 5-pin M12 PVC Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DF-G3 IR Beam High Power Dual Display Fiber Amplifier
Range: Depends on Fiber; Input 10-30 V dc
Outputs: 2 NPN
150 mm (6 in) 5-pin M12 PVC Pigtail QD
Specification
| Power | DC |
|---|---|
| Cable Length (M) | 0.15 |
| Ip Rating | IP50 |
| Accepts Fiber Termination Type | T5 Termination |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Housing Style | DIN Rail |
| Primary Housing Material | Thermoplastic |
| Input/ Output | Discrete |
| Color Led Amplifiers | Infrared |
| Fiber Type | Glass Only |
| Output | NPN |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Output Type (Specific) | Dual Discrete |
| Repeatability (µS) | 100 to 180 |
| Number Of Pins | 5 |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 60°C |
| Special Feature: Remote Teach | Yes |
| Crosstalk Avoidance | Yes |
| Intrinsically Safe | No |
| Adjustments | Teach Button |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay At Power Up (Ms) | 500 |
| Indicator Display Type | Dual Digital Displays |
| Minimum Response Time (Ms) | .5 |
| Special Feature: Bussable Power | No |
| Feature: Washdown Rated | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | Yes |
| Io Link | No |
| Housing Material | Thermoplastic |
