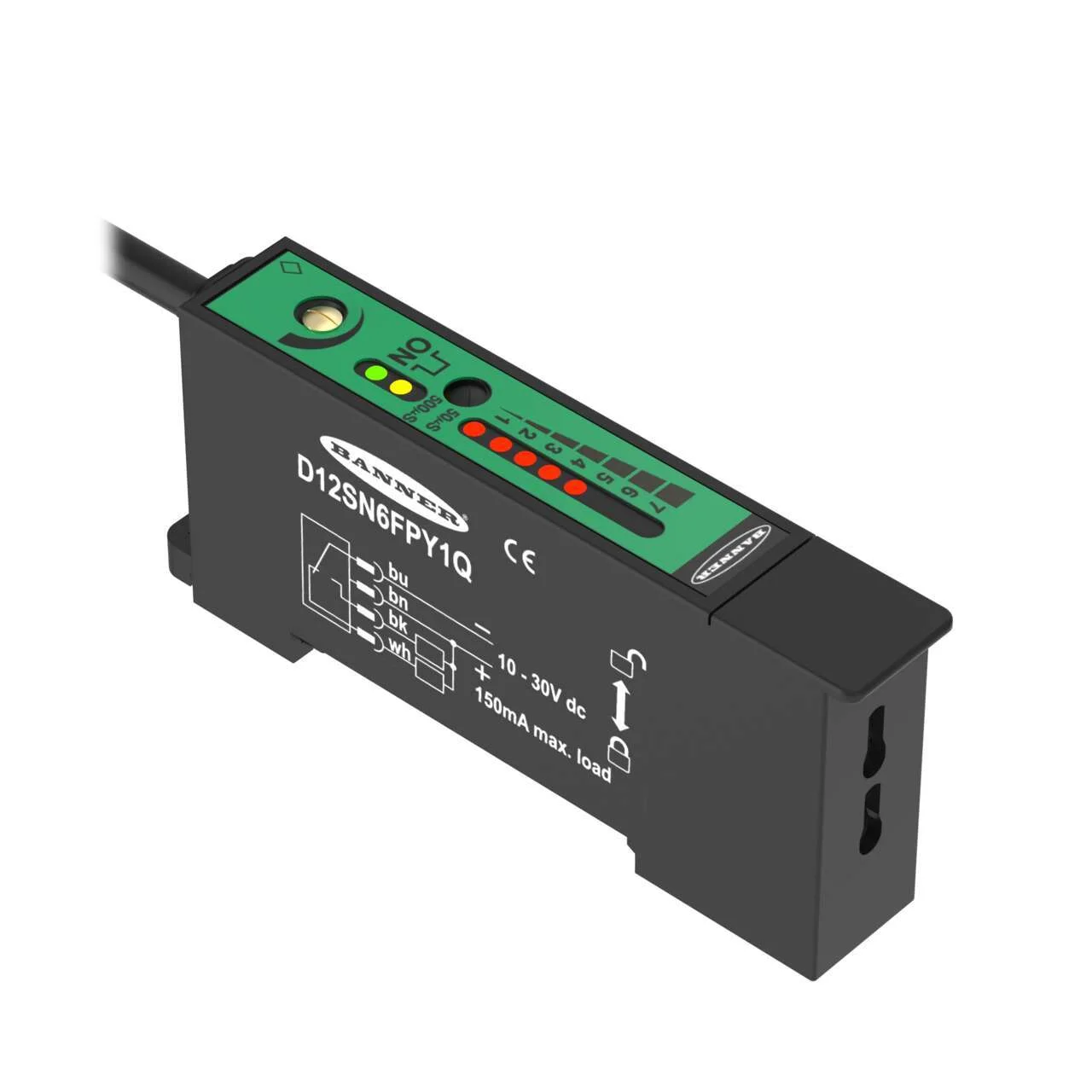

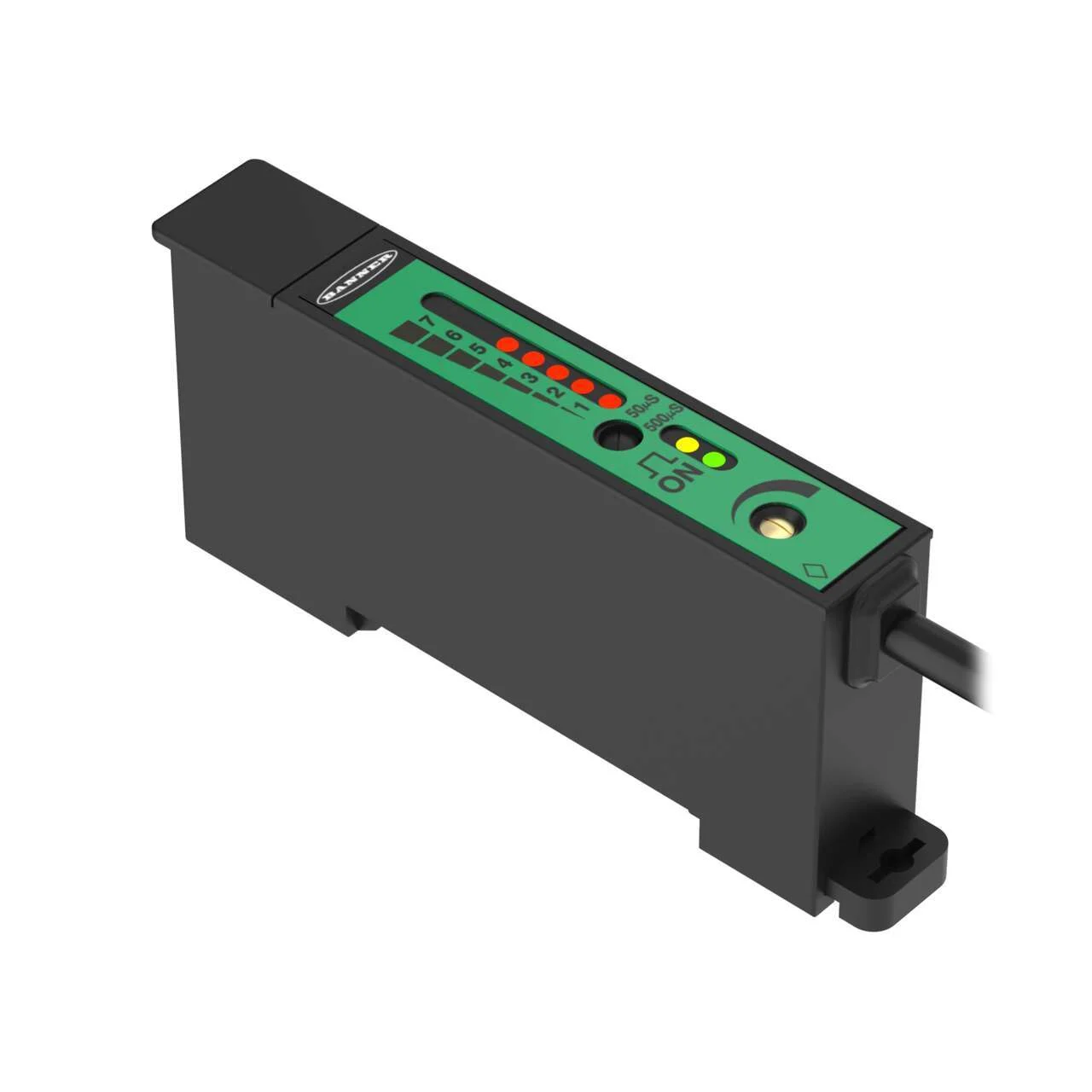

Banner Engineering D12SN6FPY1Q
D12 Series: High Speed Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Complementary NPN 20 ms Pulse Stretch
150 mm (6 in) M8 Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
D12 Series: High Speed Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Complementary NPN 20 ms Pulse Stretch
150 mm (6 in) M8 Pigtail QD
Specification
| Power | DC |
|---|---|
| Cable Length (M) | 0.15 |
| Ip Rating | IP11 |
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Housing Style | DIN Rail |
| Primary Housing Material | Thermoplastic |
| Input/ Output | Discrete |
| Color Led Amplifiers | Red |
| Fiber Type | Plastic and Glass |
| Output | NPN |
| Connection | Pigtail QD |
| Quick Disconnect Type | M8 |
| Output Type (Specific) | Single Discrete |
| Repeatability (µS) | 15 to 130 |
| Number Of Pins | 4 |
| Max Op. Temperature (C) | 70 |
| Min Op. Temperature (C) | -20 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Special Feature: Remote Teach | No |
| Intrinsically Safe | No |
| Adjustments | Potentiometer |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay At Power Up (Ms) | 100 |
| Indicator Display Type | Bargraph |
| Minimum Response Time (Ms) | .05 |
| Special Feature: Bussable Power | No |
| Feature: Washdown Rated | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Application: Object Counting | Yes |
| Housing Material | Thermoplastic |
